CONCRETE NAILER
RA-CT64

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA-CT64 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RA-CT64

Summary of Contents for Ronix RA-CT64

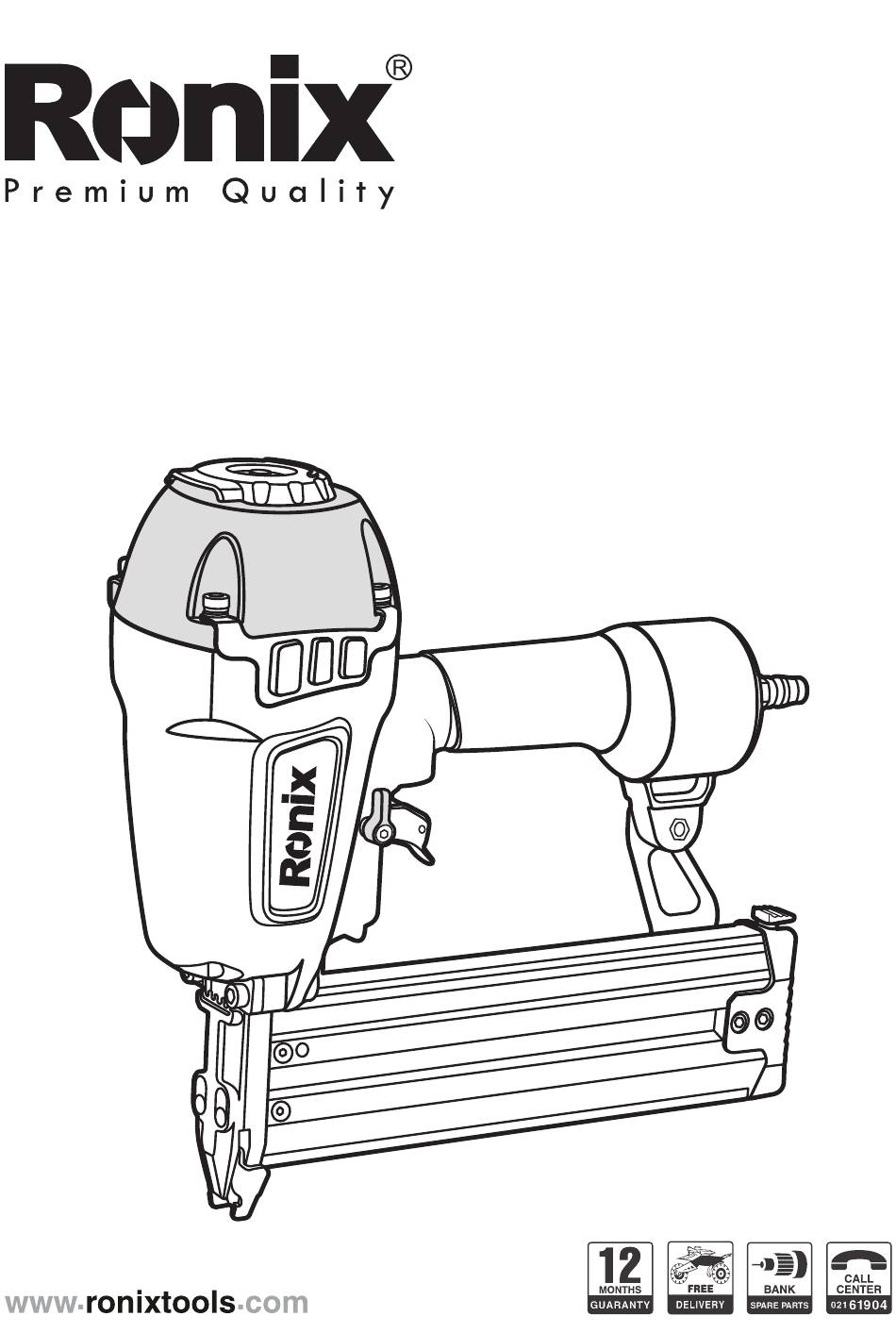

  • Page 1 CONCRETE NAILER RA-CT64...
  • Page 2 SPECIFICATIONS OF NAILER Model RA-CT64 13" x 12-1/5" x 4-1/2" Dimensions (LxHxW) 330mmx310mmx115mm Weight 2/93 kg Operating Pressure 60-100 psi(4-7 kgf/cm2) Nail Capacity 80 Nails Nail Specification 14 Gauge concrete nail,shank dia:2.2mm NAME OF PARTS Exhaust Cover Grip Air plug...

  • Page 3: Fastener Specifications

    FASTENER SPECIFICATIONS SAFETY INSTRUCTIONS DANGER! 1) Be sure to put goggles on before operation Since a fastener fired wrongly through careless handling can spring out or you are always exposed to danger that can be caused by dust and extraneous substances dispersed by exhausted air, you must always wear goggles for operation.
  • Page 4 In working environment exposed to loudness which may result in hearing loss, an employer (management) must provide hearing protection equipment to a user and others in the workshop and a worker must wear it if necessary. 3) Never use any power source but compressed air. As this tool is designed and manufactured to operate using air pressure that is generated by an air compressor authorized by a safety certifica- tion authority, you can not use any kind of gas combustible gases such as...
  • Page 5 WARNING! 8) Connect a proper connector to this tool correctly. The connector for this tool should never have pressure kept when air supply is cut off. If an improper part is applied, then the tool can operate due to pressure left within it even after the airline is disconnected possibly resulting in injury.
  • Page 6 The resultant shock can cause damage to main parts or malfunction, possibly resulting in injury. 15) Never drive a fastener on hard or thin objects, an edge of the target surface or a fastener crown already driven. Otherwise, the fastener fails to be driven in but springs out, thus inflicting an injury on a worker or those around him or her.

  • Page 7: Instructions For Operation

    INSTRUCTIONS FOR OPERATION BE SURE TO READ THE SAFETY INSTRUCTION BEFORE USING THIS TOOL. PREPARATIONS 1) Be sure to put on personal protective equipments for example, goggles, earplugs, safety cap before using this tool. 2) Be sure to use an air compressor authorized by the safety certification authority as a pressure source for operating this tool within the optimum range of pressure (58~100psi).

  • Page 8: Maintenance And Inspection

    2) Load nails from the side of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. UNLOADING NAILS 1) Pull the magazine backward with the click lever pressed. 2) Unload nails from the side of magazine. 3) Keep pushing the magazine until it is fixed in the click lever.
  • Page 9 1) Single fire operation - Be sure to use only Single fire operation when this tool is fired on concrete surface. For operation on a precise position by one fire, put the fingertip switch toward the single fire form ( ) and pull the trigger with the contact teeth pressed against the target position for nailing.
  • Page 10 2) Unload nails left in the magazine. 3) Open the guide cover B. 4) Use a long nose to remove a nail caught in. CAUTION - After clearing jam, make sure that the product has no trouble before using it. - If jam or other factors damage main parts, it can prevent normal operation.
  • Page 11 - It is important to note that users or distributors who want to have this tool repaired must get A/S from A/S personnel trained in RONIX SERVICE. - Use only parts supplied or authorized by RONIX SERVICE for repair. MAINTENANCE CHART & OPERATOR TROUBLESHOOTING...

  • Page 12: Operator Troubleshooting

    (58~100psi) Check position Piston Readjust. Supply of lubricant into the tool. Driver blade worn or Part change (Contact damaged? RONIX SERVICE or Distributor) Piston O-ring worn or damaged? Check air pressure. Reduce air pressure. (58~100psi) Check air pressure. Reduce air pressure.
