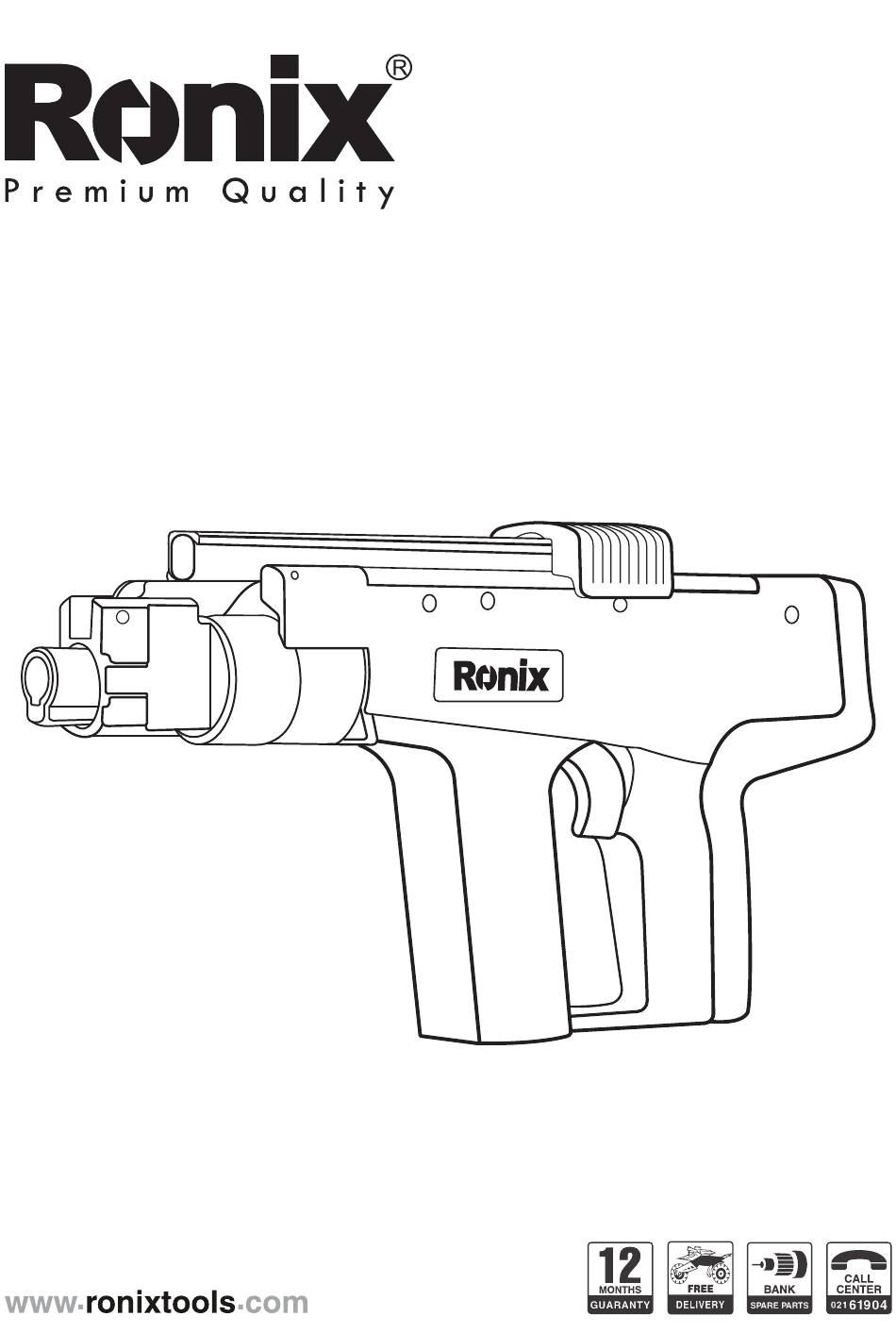

- Page 1 NAIL GUN RH-0450...
-
Page 2: Specification
SPECIFICATION Model RH-0450 Each shot Energy 400 N.m Power Source Powder Loads Fastener Length Range 12~72 mm Fastener Types NK, ENK, TB Max, Plate Thickness 4 mm Weight 3.2 Kg Safety Glasses WD 40 Lubricating Spray, Cleansing Cloth, Accessories Big Round Brush, Flat... -
Page 3: Safety Precautions
WARNING! 1. Never attempt to use the tool without first having received proper instruction on its use and associated safety precautions. Contact Ronix local sales representative for assistance. 2. Always use the tool strictly in accordance with the operating instructions. -
Page 4: General Notes
used never attempt to use an incomplete or malfunctioning tool. 10. Keep the arms flexed when the tool is fired (do not straighten the arms). Stop working with the tool if you feel unwell. 11. always hold the tool perpendicular to the working surface & material in which the fastener is to be driven. -
Page 5: Operation
it is pressed against a firm working surface. The tool can only be fired after it has been cocked by pressing it against the working surface, overcoming a cocking force of at least 90N and cocking movement of 18mm. OPERATION 1) Hold tool with muzzle upwards. -
Page 6: Cleaning And Servicing
CLEANING & SERVICING 1- Press the Cocking grip forward to be released. 2. Put your thumb behind the cocking lever and push forward. Mean- while separate the end of the lever from the grip. 3- Then rotate the lever clock counter wise to make it open and released. 4- Clean the inside of the base plate with the spray and the round brush. - Page 7 5- Disassemble the Guide Assy. Clean the outside of the Guide Assy With the brush and spray. 6- Check the Stop Ring for breakage, dents or cracks and replace it if necessary. You can pull out the Stop Ring for replacing it. - If the Stop Ring is intact just clean it.
- Page 8 - Clean the piston with spray and the flat brush. 8- Now disassemble the cylinder from its own place. - Clean the outside of cylinder carefully with the spray and brushes. USER MANUAL...
- Page 9 - Clean the inside of cylinder carefully with the spray and brushes too. 9- Clean the outside of the housing with brushes and spray carefully. 10- Follow the upper mentioned steps from end to beginning in order to assemble the gun again. Please don’t forget that all sprayed and brushed parts must be cleaned with a soft cloth before reassembly.
