Summary of Contents for Ronix RA-F30

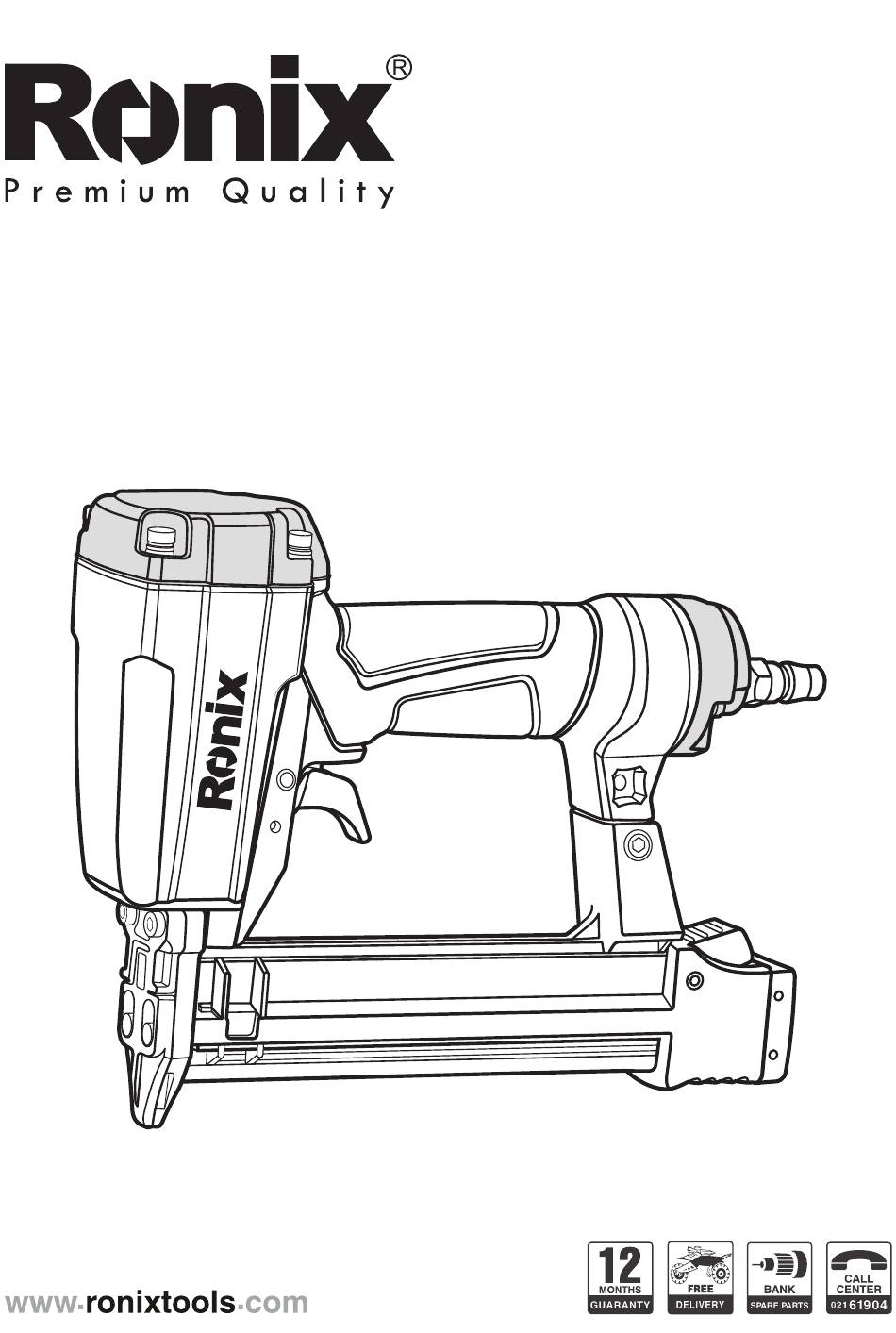

- Page 1 18 GAUGE 30MM BRAD NAILER RA-F30...
-
Page 2: Name Of Parts
SPECIFICATIONS OF NAILER Model RA-F30 1 x"7-7/10 x "2-3/5" Dimensions (LxHxW) 255x195x65mm Weight 1.1kg Operating Pressure 60-100psi Nail Capacity 100 Nails Nail Spec 1/26x1/05mm,head: 2mm NAME OF PARTS Grip Bracket Air plug Body Trigger Click lever Driver Guide Magazine End Cap... -
Page 3: Fastener Specifications
FASTENER SPECIFICATIONS 0.078"(2mm) SAFETY INSTRUCTIONS DANGER! 1) Be sure to put goggles on before operation Since a fastener fired wrongly through careless handling can spring out or you are always exposed to danger that can be caused by dust and extraneous substances dispersed by exhausted air, you must always wear goggles for operation. - Page 4 protection equipment to a user and others in the workshop and a worker must wear it if necessary. 3) Never use any power source but compressed air. As this tool is designed and manufactured to operate using air pressure that is generated by an air compressor authorized by a safety certification authority, you cannot use any kind of gas combustible gases such as oxygen and acetylene except this.
- Page 5 WARNING! 8) Connect a proper connector to this tool correctly. The connector for this tool should never have pressure kept when air supply is cut off. If an improper part is applied, then the tool can oper- ate due to pressure left within it even after the airline is disconnected possibly resulting in injury.
- Page 6 The resultant shock can cause damage to main parts or malfunction, possibly resulting in injury. 15) Never drive a fastener on hard or thin objects, an edge of the target surface or a fastener crown already driven. Otherwise, the fastener fails to be driven in but springs out, thus inflicting an injury on a worker or those around him or her.
-
Page 7: Instructions For Operation
INSTRUCTIONS FOR OPERATION BE SURE TO READ THE SAFETY INSTRUCTION BEFORE USING THIS TOOL PREPARATIONS 1) Be sure to put on personal protective equipment for example goggles, earplugs, safety cap before using this tool. 2) Be sure to use an air compressor authorized by the safety certification author ity as a pressure source for operating this tool within the optimum range of pressure (58~100psi). -
Page 8: Maintenance And Inspection
3) Keep pushing the magazine until it is fixed in the click lever. UNLOADING NAILS 1) Pull the magazine backward with the click lever pressed. 2) Unload nails from the side of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. MAINTENANCE AND INSPECTION Be sure to read the safety instruction before inspecting or maintaining this tool. - Page 9 2) Unload nails left in the magazine. 3) Open the guide cover B. 4) Use a long nose to remove a nail caught in. CAUTION - After clearing jam, make sure that the product has no trouble before using it. - If jam or other factors damage main parts, it can prevent normal operation.
- Page 10 - It is important to note that users or distributors who want to have this tool repaired must get A/S from A/S personnel trained in RONIX SERVICE. - Use only parts supplied or authorized by RONIX SERVICE for repair. USER MANUAL...
-
Page 11: Operator Troubleshooting
Check air pressure. Reduce air pressure. (58~100psi) Check position Piston set Readjust. Supply of lubricant into the tool. Part change (Contact RONIX SERVICE or Driver blade worn or damaged? Distributor) Piston O-ring worn or damaged? Check air pressure. Reduce air pressure. (58~100psi) Check air pressure.
