Summary of Contents for Ronix RA-1850

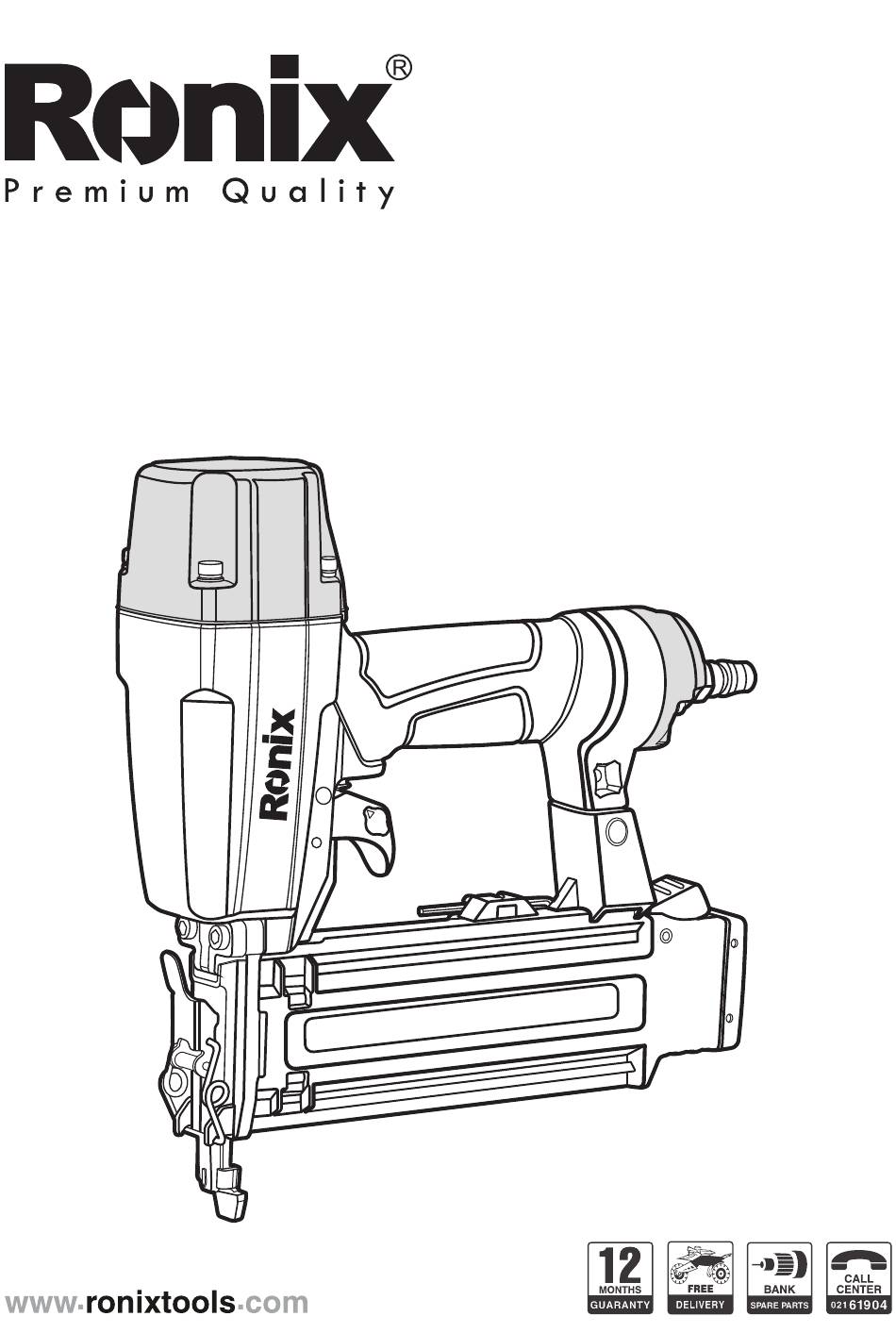

- Page 1 18 GAUGE 55MM BRAD NAILER RA-1850...
-
Page 2: Name Of Parts
SPECIFICATIONS OF NAILER Model RA-1850 10" × 10" × 2-3/5" Dimensions (LxHxW) 253 mmx255mmx65mm Weight 1.3 Kg Operating Pressure 60 ~ 100 psi (4~7 kgf/cm Nail Capacity 100 Nails Nail Spec 1.26mmx1.05mm head:2 mm NAME OF PARTS Grip Bracket Air Plug... -
Page 3: Fastener Specifications
FASTENER SPECIFICATIONS SAFETY INSTRUCTIONS DANGER! 1) Be sure to put goggles on before operation Since a fastener fired wrongly through careless handling can spring out or you are always exposed to danger that can be caused by dust and extraneous substances dispersed by exhausted air, you must always wear goggles for operation. - Page 4 must wear it if necessary. 3) Never use any power source but compressed air. As this tool is designed and manufactured to operate using air pressure that is generated by an air compressor authorized by a safety certification authority, you cannot use any kind of gas combustible gases such as oxygen and acetylene except this.
- Page 5 WARNING! 8) Connect a proper connector to this tool correctly. The connector for this tool should never have pressure kept when air supply is cut off. If an improper part is applied, then the tool can oper- ate due to pressure left within it even after the airline is disconnected possibly resulting in injury.
- Page 6 The resultant shock can cause damage to main parts or malfunction, possibly resulting in injury. 15) Never drive a fastener on hard or thin objects, an edge of the target surface or a fastener crown already driven. Otherwise, the fastener fails to be driven in but springs out, thus inflicting an injury on a worker or those around him or her.
-
Page 7: Instructions For Operation
INSTRUCTIONS FOR OPERATION BE SURE TO READ THE SAFETY INSTRUCTION BEFORE USING THIS TOOL PREPARATIONS 1) Be sure to put on personal protective equipment for example goggles, earplugs, safety cap before using this tool. 2) Be sure to use an air compressor authorized by the safety certifi- cation authority as a pressure source for operating this tool within the optimum range of pressure (58~100psi). -
Page 8: Maintenance And Inspection
2) Load nails from the side of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. UNLOADING NAILS 1) Pull the magazine backward with the click lever pressed. 2) Unload nails from the side of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. - Page 9 CLEARING A JAM If jam occurs during the nailing process, clear it according to the following procedure. 1) Disconnect the air line from the tool. 2) Unload nails left in the magazine. 3) Open the guide cover B. 4) Use a long nose to remove a nail caught in.
- Page 10 - It is important to note that users or distributors who want to have this tool repaired must get A/S from A/S personnel trained in RONIX SERVICE. - Use only parts supplied or authorized by RONIX SERVICE for repair. USER MANUAL...
-
Page 11: Operator Troubleshooting
Method Prevent accumulation of Drain air line filter daily Open manual petcock. moisture and dirt. Fill with RONIX SERVICE pneu- Keep lubricator filled. Keep the tool lubricated matic tool lubricant. Clean magazine and feeder Prevent a jam & Dry fire. Blow clean daily.
