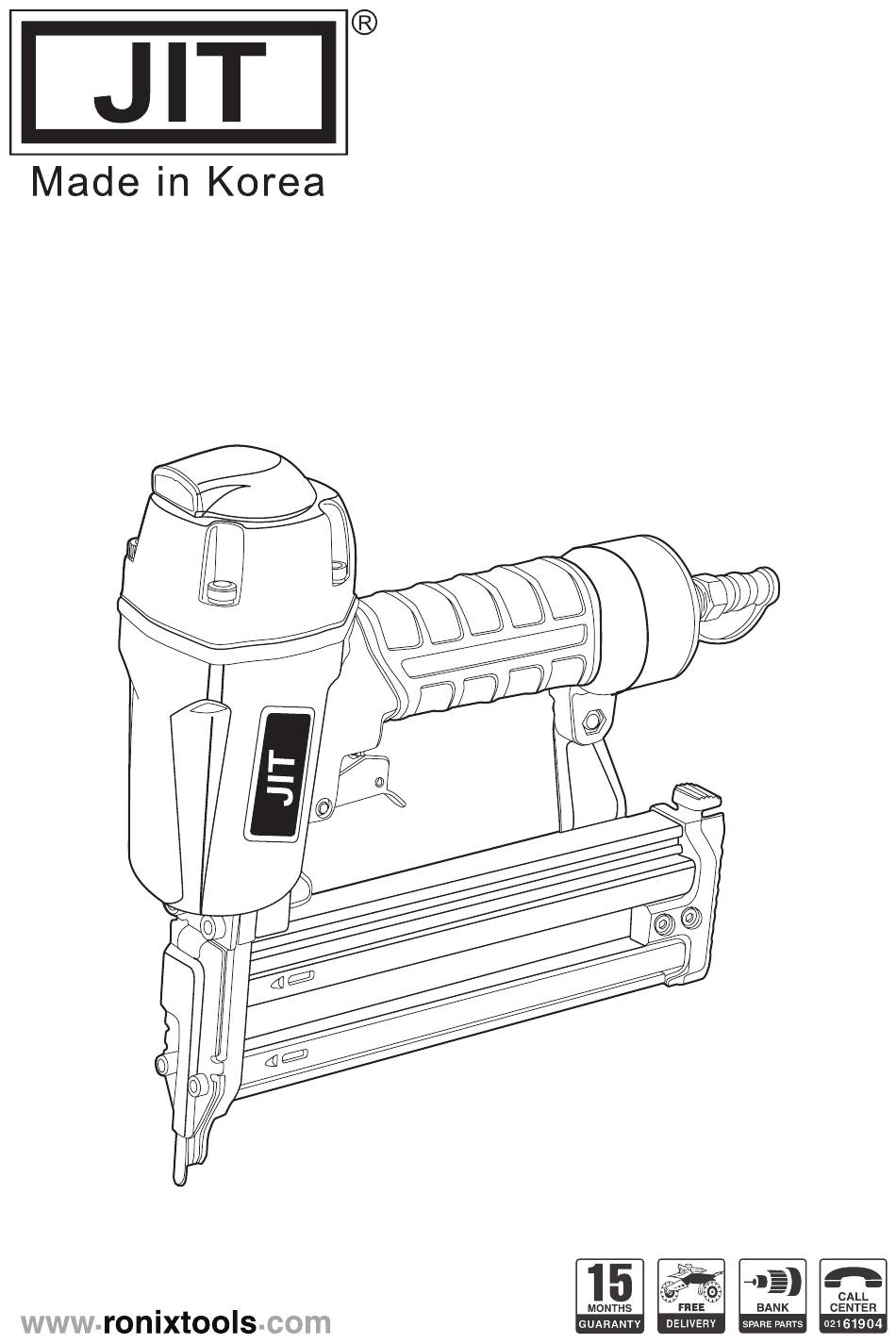

- Page 1 BEAD NAILER 1850A...
- Page 2 USER MANUAL SPECIFICATIONS OF NAILER Model 1850A nailing capacity Required Pressure 4.0 - 7.0 kgf/cm2 Max Pressure 157 PSI (10 kgf/cm2) L×H×W 244 × 244 × 62 Nail Length 15 - 50 mm Nail Specification 18gauge brad nail Head Weight 1.39 kg Supplied In color box...
-
Page 3: Fastener Specifications
BRAD NAILER 1 Body Click lever 2 Cap Bracket 3 Driver guide Exhaust cover 4 Contact arm 10 Trigger 5 Magazine 11 Grip 6 Magazin end cap 12 Air plug FASTENER SPECIFICATIONS... - Page 4 USER MANUAL DANGER! 1. Be sure to put goggles on before operation Since a fastener fired wrongly through careless handling can spring out or you are always exposed to danger that can be caused by dust and extraneous substances dis- persed by exhausted air, you must always wear goggles for operation.
- Page 5 BRAD NAILER tool, never use it under pressure of 100 psi (or 7 bar) and over. This tool can blow up when connected to pressure higher than 157 psi (or 11bar). 5. Don›t use it near inflammables (combustibles). Never operate this tool near inflammables (such as thinner and gasoline).
- Page 6 USER MANUAL in injury. 9. Disconnect the air line and empty the fasteners out of the container in case that the tool is not used. Be sure to cut off air supply and empty the fastener con- tainer when the work is completed or when you move to another workshop, maintain, disassemble, or repair this tool, or clear jam.
- Page 7 BRAD NAILER in injury. 14. You are prohibited from using the tool for other purpos- es than drive a fastener and from throwing or dropping it. The resultant shock can cause damage to main parts or malfunction, possibly resulting in injury. 15.
-
Page 8: Instructions For Operation
USER MANUAL - Finish and Trim (interior and exterior) - Decorative Trim - Cabinets - Case Backs - Molding - Mirror and Picture Frames - Paneling INSTRUCTIONS FOR OPERATION BE SURE TO READ THE SAFETY INSTRUCTION BE- FORE USING THIS TOOL. PREPARATIONS 1. -
Page 9: Loading Nails
BRAD NAILER 1. To give a checkup to the tool, adjust the operating pres- sure to 58 psi (4 bar) before air connection. 2. Keep pressure low as far as it may cause no trouble in operation within the optimum range of pressure according to hardness of the working plane and length of fasteners. -
Page 10: Maintenance And Inspection
USER MANUAL 1) Pull the magazine backward with the click lever pressed. 2) Unload nails from the side of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. MAINTENANCE AND INSPECTION Be sure to read the safety instruction before inspecting or maintaining this tool. - Page 11 BRAD NAILER - After clearing jam, make sure that the product has no trouble before using it. - If jam or other factors damage main parts, it can prevent normal operation. - If any trouble occurs, stop using the tool and ask a nearby A/S center or a distributor for A/S.
- Page 12 USER MANUAL 1) When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust. 2) Do not store the tool in a cold weather environment. Keep the tool in a warm area. 3) When not in use, the tool should be stored in a warm and dry place.
- Page 13 Drain air line filter daily Prevent accumulation of Open manual petcock. moisture and dirt. Keep lubricator filled. Keep the tool lubricated Fill with RONIX SERVICE pneumatic tool lubricant. Clean magazine and Prevent a jam & Dry fire. Blow clean daily. feeder mechanism.
-
Page 14: Operator Troubleshooting
(58~100psi) Check position Piston set Readjust. Supply of lubricant into the tool. Driver blade worn or Part change (Contact damaged? RONIX SERVICE or Distributor) Piston O-ring worn or damaged? Check air pressure. Reduce air pressure. (58~100psi) Check air pressure. Reduce air pressure.
