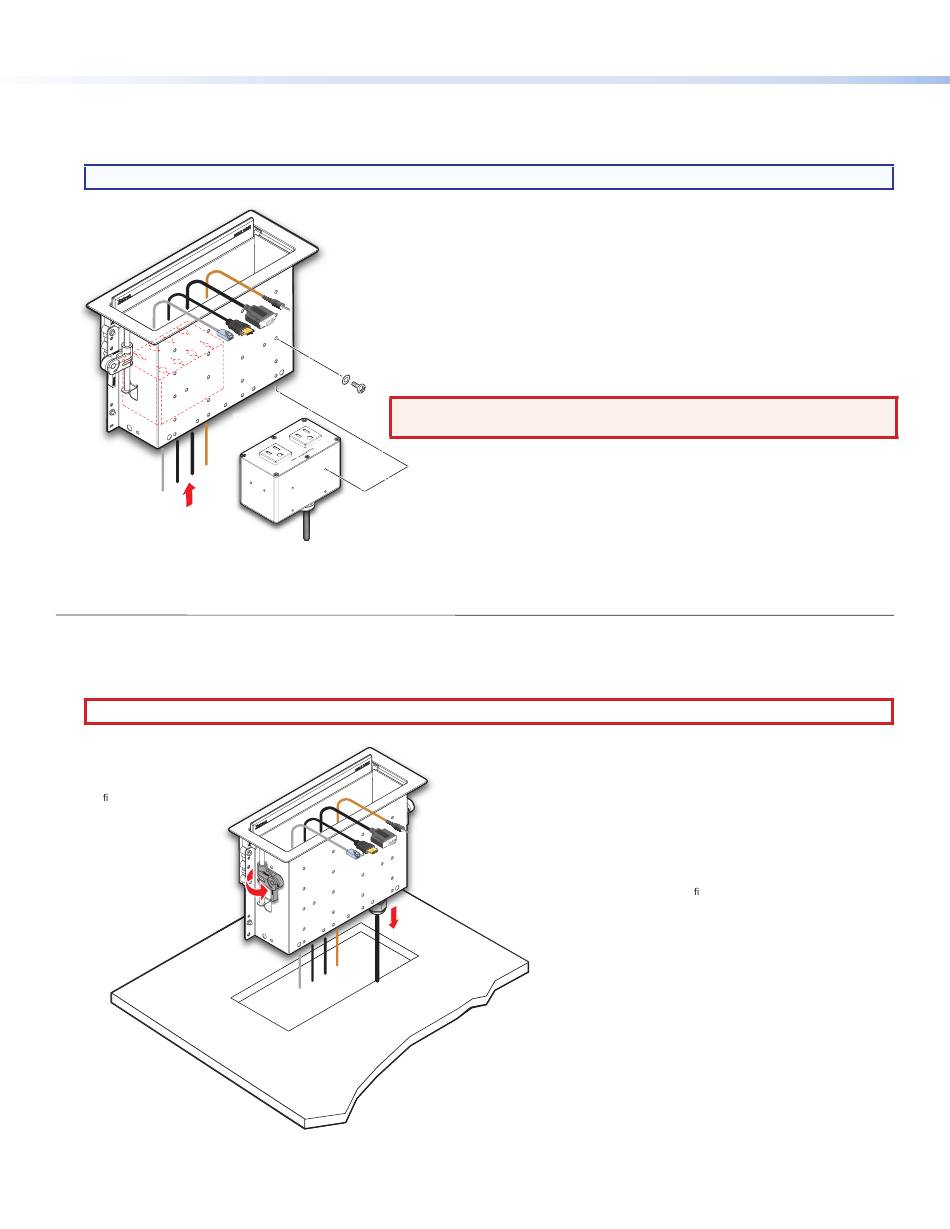

Step 2 — Install the Modules.
Determine where the connectivity modules and power module will be installed in the Cable Cubby. The modules may be installed
on the left or right side of the enclosure and at various heights.
NOTE:
Ensure that there is enough room above the modules for the Cable Cubby lid to close completely.
1
Insert the modules
into the Cable Cubby.
1
Insert the modules
into the Cable Cubby.
Mounting the Cable Cubby in the Table
Mount the Cable Cubby flush with the table.
CAUTION:
The Cable Cubby edges are sharp. Exercise care to prevent scarring or damaging the skin and furniture.
1
Remove the plastic strips and
lm on the surface of the
1
Remove the plastic strips and
Cable Cubby.
lm on the surface of the
Cable Cubby.
2
Ensure that the
2
side clamps are
Ensure that the
seated against the
side clamps are
enclosure.
seated against the
enclosure.
4
2
Secure the modules using four of the provided mounting screws and star washers.
2
Secure the modules using four of the provided mounting screws and star washers.
WARNING:
Electric shock hazard. To ensure proper electrical grounding,
use the provided #6-32 mounting screws with the star washers.
3
Lower the Cable Cubby into the hole to test the t.
3
If necessary, carefully enlarge the opening.
Lower the Cable Cubby into the hole to test the t.
If necessary, carefully enlarge the opening.
