Cable Cubby 1200 and 1400 • Installation Guide (Continued)
Preparing the Table
Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.
Determine the best location for the enclosure
…
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
…
Ensure that the edge on which the lid opens is oriented correctly.
…
Ensure that there is ample space under the table for cables.
…

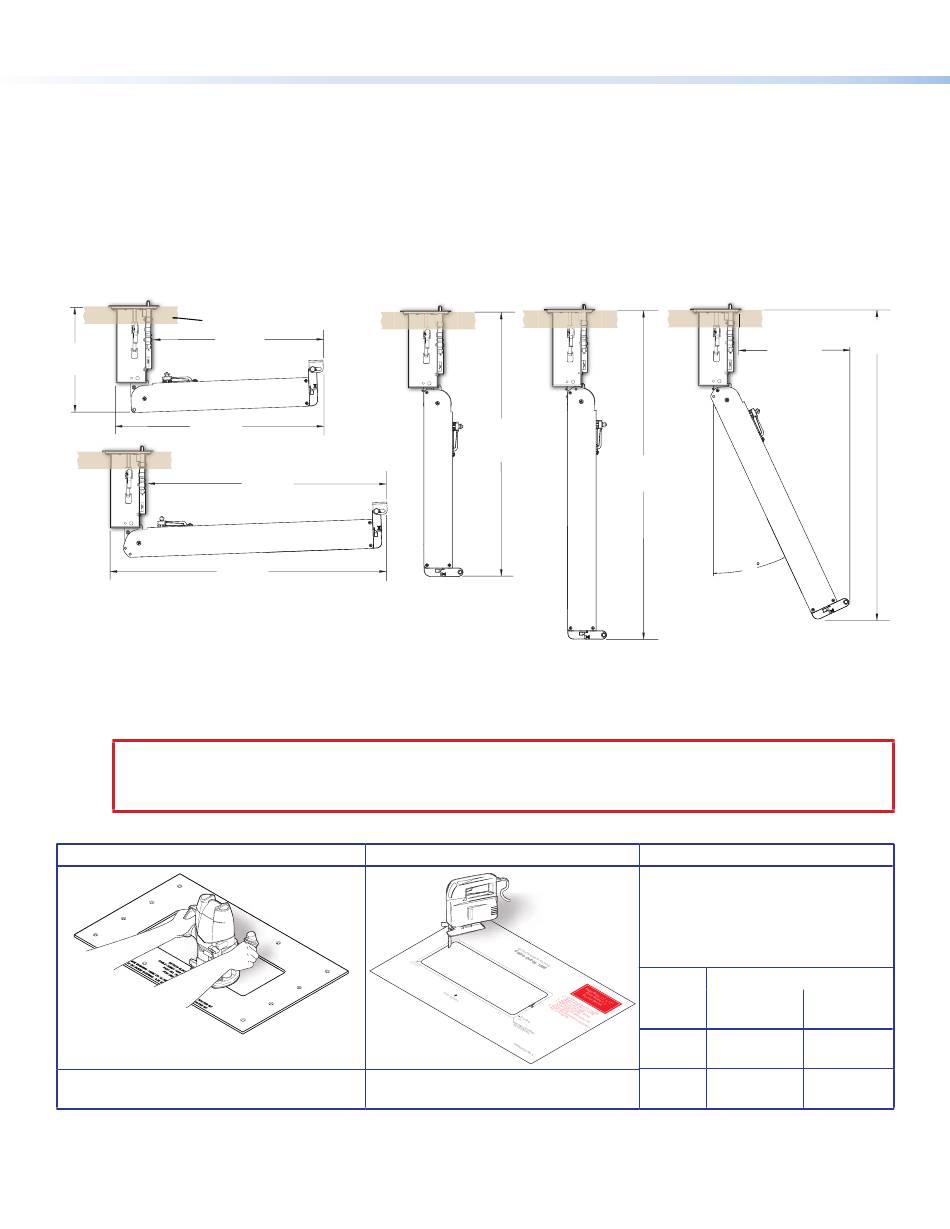

When installing retractors in the Cable Cubby, ensure that there is enough space for the retractor assembly under the table
or furniture. See dimensions for the retractors below.
Table Top
14.9"
(37.8 cm)
9.2"
(23.4 cm)
17.8"
(45.2 cm)
23.7"
(60.2 cm)
XL Models
Choose a method for cutting the hole in the table
The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.
CAUTION:
• Wear safety glasses when cutting the hole in the table. Failure to comply may result in eye injury.
• The Cable Cubby edges are sharp. Exercise care to prevent scarring or damaging the skin and furniture.
Choose one of the following methods for cutting the hole:
Hand Router and Routing Template
www.extron.com
Visit for Cable Cubby routing
template part numbers and instructions.
2
20.8"
(52.8 cm)
Jigsaw and Paper Cut-Out Template
Dimensions and print-out templates are
available online at www.extron.com.
23.5"
(59.7 cm)
29.4"
(74.7 cm)
XL Models
CNC Wood Router
If using a CNC wood router or other
precise machinery, use the exact
cut-out dimensions for your model
(see the table below).
Product
CC 1200
CC 1400
26.7"
(67.8 cm)
10.6"
(26.9 cm)
30
Cut-out Dimensions
User Access Side
Width Dimension
10.00" 4.00"
(254.0 mm) (101.6 mm)
10.00" 6.75"
(254.0 mm) (171.5 mm)
