Randell 9302-7 Specifications

Preparation table back mount worktop

Advertisement

Quick Links

Preparation Table Back Mount Worktop
model
9402-7
9602-7
Description:
Self-contained, refrigerator or freezer unit with stainless steel flat
worktop and a 3" high backsplash. Back-mounted removable,
replaceable, R-134a refrigeration. "Front Breathing" system,
requires no side or back clearance. Integrated rubber bumpers
provide 1" rear clearance on models 9802F-7 and 9302F-7. Self-
closing door(s), 6" high adjustable legs, and cordset for 115V
operation. Models range from 27" to 72", and are 30" deep and
36" high.
Specifications:
CABINET EXTERIOR: The top, sides, and front are stainless steel.
Bottom and back of unit are corrosion resistant steel. Door
opening frames are ABS and contain magnetic strip for positive
seal of door gaskets. Freezer models with door frame heater to
prevent gasket freezing. Units ship standard on (4) 6" high legs
with adjustable bullet feet.
CABINET INTERIOR: Interior of cabinet is fully coved to meet N.S.F.
standard #7. The Interior bottom, back, and top are anodized
aluminum with coved corners for easy clean-up. The interior ends
are ABS. Two adjustable powder coat finished shelves behind each
door, adjustable on 1" increments. Unit insulated with a minimum
of 2.5" of CFC free, foamed in place polyurethane.
DOORS: Stainless steel front with easy to grasp recessed
handle, mounted on heavy duty concealed hinges. Hinges are
all stainless steel with bronze pivot pin in nylon bushing, spring
loaded to be self-closing. Doors with foamed in place insulation,
press fit magnetic gaskets - (designed for installation & removal
without tools), and deep draw ABS interior liner for maximum
insulation value.
REFRIGERATION: CFC free, R-134a back-mounted refrigeration
system to be self-contained with evaporator blower coil,
compressor, thermostatic control, forced-air condensing coil and
capillary tube contained in removable assembly. Condensate
evaporator provided. Freezer utilizes CFC free, R-404a refrigerant,
and automatic, self-defrosting system for blower coil. Units totally
prewired and to be supplied with 8' cordset (NEMA 5-15P) for
115V operation. "Front Breathing" refrigeration system, requires
no side or back clearance. Integrated rubber bumpers provide 1"
rear clearance on models 9802F-7 and 9302F-7.
9402F-7
9802-7
9604-7
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
models 9000-7
9802F-7
9302-7

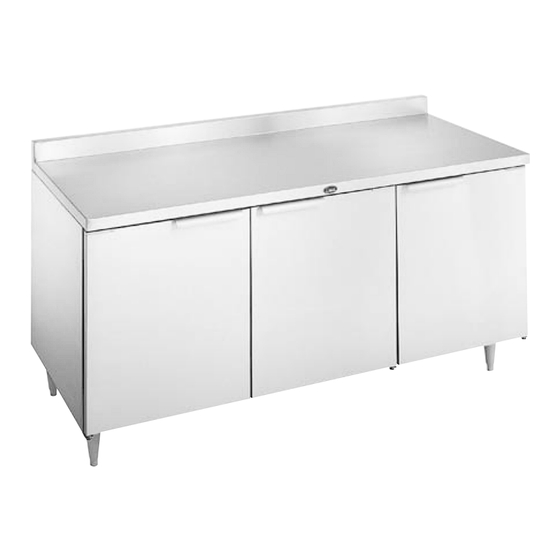

model 9604-7
shown
Standard Features:
• Self-contained, removable, replaceable refrigeration
package that utilizes R-134a refrigerant, (R-404a in
freezer models) both are "CFC free"
• "Front Breathing" (on legs/casters) refrigeration system, no side or
back clearance required. Integrated rubber bumpers provide 1" rear
clearance on models 9802F-7 and 9302F-7.
• Stainless steel top, sides, and front
• Fully adjustable shelves behind self-closing door
Options & Accessories:
Stainless steel back panel
Refrigerated drawers
Overshelves (double or single tier)
Casters
Export voltages
Randell Preparation Table, Page 6
9302F-7
Revised 07/06
