Randell 9000W-290 Series Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
2016 Gees Mill Road, Suite 200, Conyers, GA 30013
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING R290 flammable refrigerant in use. Improper installation,
adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
MODEL PAN
CAPACITY
1/3 SIZE
8148N-290 6
8260N-290 8
8268N-290 9
8383N-290 11
8395N-290 13
84111N-290 15
MODEL PAN L
CAPACITY
1/6 SIZE
8148W-290 21 48"
8268W-290 30 68"
8395W-290 42 95"
MODEL PAN
CAPACITY
1/6 SIZE
9148W-290 18
9260W-290 24
9272W-290 30
L D
WORK REAR OF UNIT
SURFACE (CLOSED COVER)
48" 33" 35" 44"
60" 33" 35" 44"
68" 33" 35" 44"
83" 33" 35" 44"
95" 33" 35" 44"
111" 33" 35" 44"
D
WORK SURFACE REAR OF UNIT
(NO CUTTING BOARD)
33" 35"
33" 35"
33" 35"
L D H
48" 33" 46.5"
60" 33" 46.5"
72" 33" 46.5"
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends
referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications. © 2018 Unified Brands.
All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.

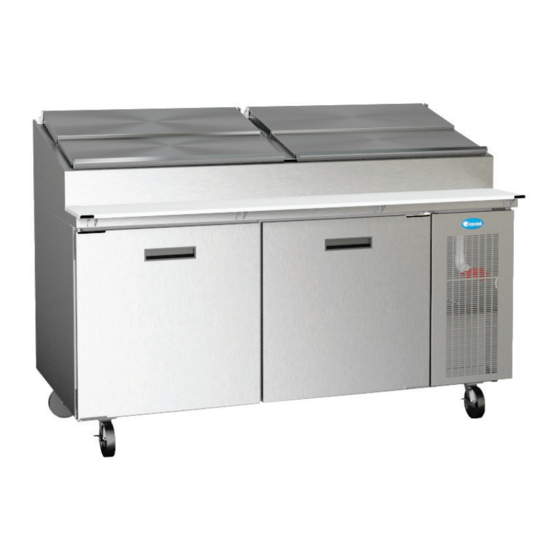

This manual provides information for:
8000-290 & 9000W-290 SERIES
PREP TABLES
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Unified Brands
reserves the right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located behind the hinged vented
door of the compressor machine compartment. An
example is shown here.
H DOORS
OVERALL
(COVER OPEN)
52.5" (1)27"
52.5" (2)24"
52.5" (2)27"
52.5" (2)24",(1)21"
52.5" (3)27"
52.5" (3)24",(1)21"
H DOORS
OVERALL
(NO COVER)
46.5" 53.5" (1)27"
46.5" 53.5" (2)27"
46.5" 53.5" (3)27"
DOORS STORAGE
CU. FT.
(1) 27" 5.5
(2) 24" 9.8
(2) 27" 11.2
PART NUMBER PP MNL1803, REV. E (08/19)
STORAGE HP VOLT
CU. FT.
9.0 1/3 115/60/1
14.67 1/3 115/60/1
17.76 1/3 115/60/1
23.55 (2) 1/4 115/60/1
28.18 (2) 1/4 115/60/1
32.81 (2) 1/4 115/60/1
STORAGE HP VOLT
CU. FT.
9.0 1/3 115/60/1
17.76 1/3 115/60/1
28.18 (2) 1/4 115/60/1
HP VOLT AMPS
(BASE &
RAIL)
1/3 115/60/1 6
1/3 115/60/1 6
1/3 115/60/1 6
AMPS NEMA SHIP
WT.
6 5-15P 405
6 5-15P 459
6 5-15P 484
5.8 5-15P 585
5.8 5-15P 630
5.8 5-15P 675
AMPS NEMA SHIP
WT.
6 5-15P 530
6 5-15P 595
5.8 5-15P 785
NEMA SHIP WT.
5-15P 405
5-15P 465
5-15P 510
