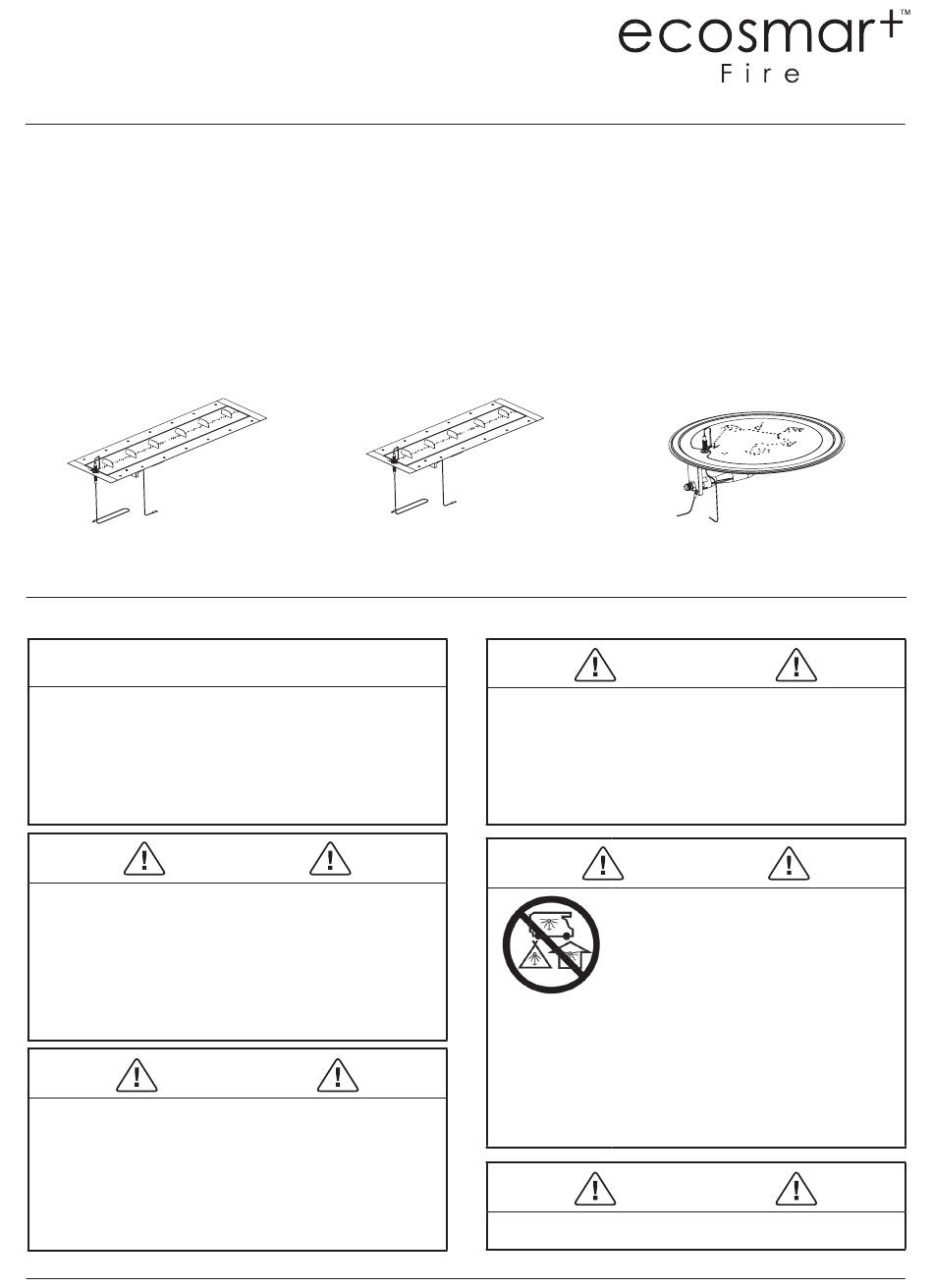

INSTALLATION,
OPeRATION
AND MAINTeNANCe
MANUAL
Long gas Burner
esF.2.B.g35 7.5lbs/16.5kg
CAUTION
DO NOT DISCARD THIS MANUAL
• Important operating and maintenance
instructions included.
• Read, understand, and follow these
instructions for safe installation and operation.
DANGeR
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids, in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
MediuM gas Burner
esF.1.B.g28 12.8lbs/5.8kg
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. Read the installation and
maintenance instructions thoroughly before
installing or servicing this equipment.

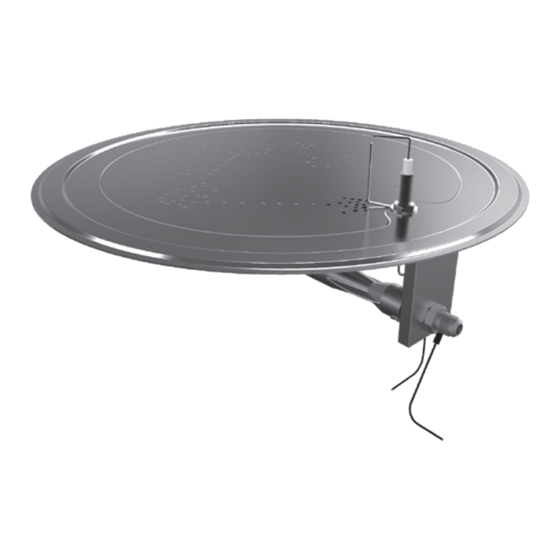

round gas Burner
esF.1.B.g16 12.6lbs/5.7kg
WARNING
DANGeR
CARBON MONOXIDe HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed space
can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent, car or home.
WARNING
For outdoor use only
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoSmart Fire Linear 130
Summary of Contents for EcoSmart Fire Linear 130
- Page 1 INSTALLATION, OPeRATION AND MAINTeNANCe MANUAL Long gas Burner MediuM gas Burner round gas Burner esF.2.B.g35 7.5lbs/16.5kg esF.1.B.g28 12.8lbs/5.8kg esF.1.B.g16 12.6lbs/5.7kg CAUTION WARNING DO NOT DISCARD THIS MANUAL Improper installation, adjustment, alteration, • Important operating and maintenance service, or maintenance can cause injury or instructions included. property damage.
- Page 2 engLisH eDUCATe ALL USeRS Manuals can be found on our website or by contacting your local distributor. WHY ReGISTeR YOUR WARRANTY? LISTING AND CODe APPROvALS registering your warranty achieves more than simply activating your A. Appliance Certification warranty - it provides our head office with the information that we require in order to communicate important safety and regulatory MODeL: ESF.1.B.G35, ESF.1.B.G28, ESF.1.B.G16...
-
Page 3: Table Of Contents
Contents Markings Important Safety Information 3 - 4 Clearances Before You Start Gas Hookup 7 - 8 Standard equipment Received 9 - 10 Burner Assembly - Propane 11 - 12 Burner Assembly - Natural Gas 13 - 14 Installation - Natural Gas Lighting and Operating Troubleshooting 17 - 18... -
Page 4: Markings
Model: EcoSmart Fire GB Series 2. Ensure control panel valve is in the “OFF” position and A. This appliance must be lit manually. When lighting, follow slowly open valve on propane tank. - Page 5 Important Safety Information Congratulations on your purchase of this decorative gas 1. eXPLOSION/FIRe HAZARD appliance. The appliance you have selected is designed to provide i. Do not operate in an area with oxygen tanks in use or if safe operation, reliability and efficiency. flammable vapors are present. This manual contains instructions for the safe installation and ii.
-
Page 6: Clearances
engLisH Clearances When planning an appliance installation, it’s necessary to determine overhead clearances to items that are susceptible to movement the following information first: (e.g. Curtains/Trees) must remain a minimum of: - 78.7in (2000mm) away from the flame at all times. environmental Conditions Ceiling clearances must remain a minimum of: - 72in (1,829mm) to overhang from top of burner. -
Page 7: Before You Start
Before You Start Tools and Supplies WARNING Before beginning the installation, be sure that the following tools and supplies are at hand: Asphyxiation Risk • Gloves • This gas appliance is for outdoor use in a well-ventilated space. • Safety Glasses •... -
Page 8: Gas Hookup
engLisH Gas Hookup Fuel WARNING Before making gas connections, ensure the appliance being installed is compatible with the available gas type. Fire Risk explosion Risk Gas Pressure Proper input pressures are required for optimum performance. Gas line • Gas build-up during line purge may ignite. sizing requirements need to be made following NFPA54. - Page 9 Gas Hookup LP Gas Supply • The pressure regulator and hose assembly supplied with LP models must be used. replacement pressure regulators and hose assemblies must be those specified in this manual. • The LP gas supply cylinder used with LP models must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
-
Page 10: Standard Equipment Received
engLisH Standard equipment Received Please ensure that all items have been received. The burners include the minimum equipment required to operate the burner safely. Burners Long gas Burner - esF.2.B.g35 Medium gas Burner - esF.1.B.g28 round gas Burner - esF.1.B.g16 Included items INSTALLATION, OPERATION... - Page 11 Standard equipment Received Assembling the control panel Confirm you have received all necessary parts as illustrated on page 9. If clips have been provided as the fixing method, refer to step A and 4. From the front of the control panel, secure the sparker by attaching follow steps 1 to 6.
-
Page 12: Burner Assembly - Propane
engLisH Burner Assembly - Propane PROPANe 7. slide the black propane tank hose under the surround unit and out through the control panel opening. The other end of the black propane hose with the regulator will attach to the propane tank. 1. - Page 13 Burner Assembly - Propane 12. ensure propane tank is in the oFF position. attach propane hose 17. Fill the burner area with the included black glass media. use all black and included regulator to propane tank. glass charcoal provided for best effect. Keep clear of the sparker to avoid accidental blockage.
-
Page 14: Burner Assembly - Natural Gas
engLisH Burner Assembly - Natural Gas NATURAL GAS Feed the flexible gas line, grounding wire and the ignitor wire through the burner location opening first then lower the burner/tray assembly Very Important: Connection of this product to natural Gas must into its final location. - Page 15 Burner Assembly - Natural Gas 9. Using two adjustable wrenches, attach the natural gas line to the bottom valve fitting (input). Do not overtighten. It is strongly recommended to place a manual shutoff valve in the natural gas line before it reaches the valve on the control panel. FIGURE A FIGURE B 14.
-
Page 16: Installation - Natural Gas
engLisH Installation - Natural Gas Natural Gas Supply Installation Guidelines 1. The gas supply line must have enough capacity to supply the burner with its rated gas output. 2. The flame output may be too low if the gas line is too small. 3. -
Page 17: Lighting And Operating
Lighting and Operating FOR YOUR SAFeTY, ReAD BeFORe LIGHTING To extinguish Turn control valve to “oFF” position or close ball valve. Close valve on propane tank while not in use. WARNING! If you do not follow these instructions exactly, a fire or explosion may result causing property Initial break-in procedure: When you light the appliance, you may damage, personal injury, and/or loss of life. -
Page 18: Troubleshooting
engLisH Troubleshooting - General Symptom Possible Causes Corrective Actions Check the LP (propane) tank. You may be out of No LP in tank, or NG main not turned on. gas. or check natural gas valve at main. Appliance won’t light Check the burner orifice for stoppage. - Page 19 Troubleshooting - Loud Gas Flow excessive Rushing and Whistling noise There are multiple causes for excess noise coming from the gas appliance. The more gas (maximum control valve setting) the more likely you are to hear excess noise. This is due to the larger volume of gas flowing at a higher velocity through the plumbing of the appliance.
-
Page 20: Service And Maintenance
engLisH Service and maintenance although the frequency of appliance servicing and maintenance will WARNING depend on use and the type of installation, a qualified service technician should perform an appliance check-up annually. Annual inspection by qualified technician recommended. storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. -
Page 21: Reference Materials
Reference materials Service Parts List Replacement Parts LP / NG BURNeR Burner assembly ecosmart Fire Long gas Burner ESF.1.SU.G35 Burner assembly ecosmart Fire Medium gas Burner ESF.1.SU.G28 Burner assembly ecosmart Fire round gas Burner ESF.1.SU.G16 Control Key ESF.1.P.KEY Control Knob ESF.1.P.KNB... -
Page 22: Warranty
engLisH Warranty Limited One Year Warranty Mad design usa extends the following warranty for gB series This warranty is limited to the replacement or repair of defective decorative outdoor gas fire products used in the United States of components or workmanship and Mad design usa may fully discharge america or Canada. - Page 23 © Copyright 2004 - 2019 EcoSmart Inc. All rights reserved. V0619...
- Page 24 MAD Design USA 5875 Green Valley Circle, Suite 100 Culver City CA 90230 T + 1 (888) 590.3335 E info@mad-usa.com V0719 This product is distributed by ecoSmart Inc dBA MAd design USA.
