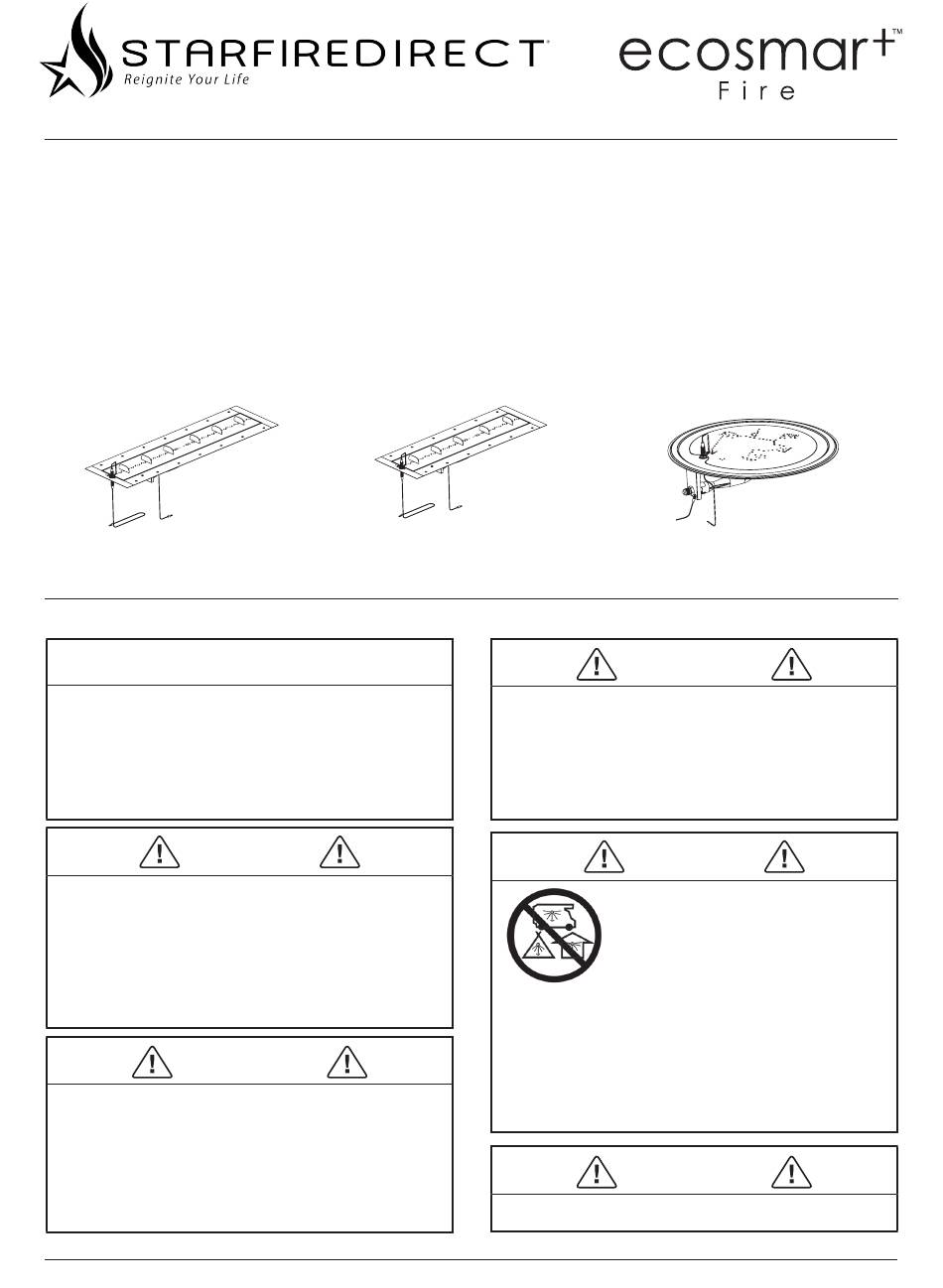

INSTALLATION,
OPeRATION
AND MAINTeNANCe
MANUAL
Long gas Burner
esF.1.B.g35 7.5lbs/16.5kg
CAUTION
DO NOT DISCARD THIS MANUAL
• Important operating and maintenance
instructions included.
• Read, understand, and follow these
instructions for safe installation and operation.
DANGeR
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids, in the vicinity
of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
MediuM gas Burner
esF.1.B.g28 12.8lbs/5.8kg
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. Read the installation and
maintenance instructions thoroughly before
installing or servicing this equipment.

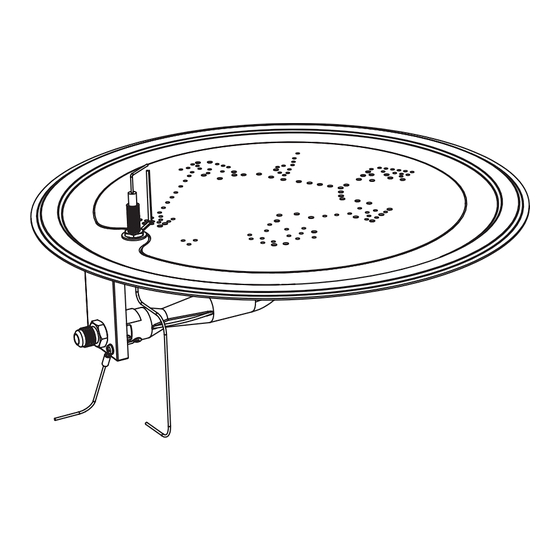

round gas Burner
esF.1.B.g16 12.6lbs/5.7kg
WARNING
DANGeR
CARBON MONOXIDe HAZARD
This appliance can produce
carbon monoxide which has
no odor.
Using it in an enclosed space
can kill you.
Never use this appliance in
an enclosed space such as a
camper, tent, car or home.
WARNING
For outdoor use only
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoSmart Fire ESF.1.B.G28
Summary of Contents for EcoSmart Fire ESF.1.B.G28
- Page 1 INSTALLATION, OPeRATION AND MAINTeNANCe MANUAL Long gas Burner MediuM gas Burner round gas Burner esF.1.B.g35 7.5lbs/16.5kg esF.1.B.g28 12.8lbs/5.8kg esF.1.B.g16 12.6lbs/5.7kg CAUTION WARNING DO NOT DISCARD THIS MANUAL Improper installation, adjustment, alteration, • Important operating and maintenance service, or maintenance can cause injury or instructions included.
- Page 2 - it provides our head office with the information that we require in order to communicate important safety and regulatory MODeL: ESF.1.B.G35, ESF.1.B.G28, ESF.1.B.G16 information to you should the need arise. LABORATORY: Underwriters Laboratories, Inc. (UL) This could include things like:...
-
Page 3: Table Of Contents
Contents Markings Important Safety Information Clearances Before You Start Gas Hookup 7 - 8 Standard equipment Received 9 - 10 Burner Assembly - Propane 11 - 12 Burner Assembly - Natural Gas 13 - 14 Lighting and Operating Troubleshooting Service and Maintenance Reference Materials 18 - 19 ©... -
Page 4: Markings
Model: EcoSmart Fire GB Series 2. Ensure control panel valve is in the “OFF” position and A. This appliance must be lit manually. When lighting, follow slowly open valve on propane tank. -
Page 5: Important Safety Information
Important Safety Information Congratulations on your purchase of this decorative gas 1. eXPLOSION/FIRe HAZARD appliance. The appliance you have selected is designed to provide i. Do not operate in an area with oxygen tanks in use or if safe operation, reliability and efficiency. flammable vapors are present. This manual contains instructions for the safe installation and ii. -
Page 6: Clearances
engLisH Clearances When planning an appliance installation, it’s necessary to determine WARNING the following information first: EcoSmart Inc disclaims any responsibility for, and the environmental Conditions warranty will be voided by, the following actions: WARNING: Ensure that your fire is positioned away from flammable materials and other sources of ignition (combustible materials, gasoline and other flammable vapors and liquids) at all times. Pay •... -
Page 7: Before You Start
Before You Start Tools and Supplies WARNING Before beginning the installation, be sure that the following tools and supplies are at hand: Asphyxiation Risk • Gloves • This gas appliance is for outdoor use in a well-ventilated space. • Safety Glasses •... -
Page 8: Gas Hookup
engLisH Gas Hookup Fuel WARNING Before making gas connections, ensure the appliance being installed is compatible with the available gas type. Fire Risk explosion Risk Gas Pressure Proper input pressures are required for optimum performance. Gas line • Gas build-up during line purge may ignite. sizing requirements need to be made following NFPA54. -
Page 9: Gas Hookup
Gas Hookup LP Gas Supply • The pressure regulator and hose assembly supplied with LP models must be used. replacement pressure regulators and hose assemblies must be those specified in this manual. • The LP gas supply cylinder used with LP models must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. -
Page 10: Standard Equipment Received
Standard equipment Received Please ensure that all items have been received. The burners include the minimum equipment required to operate the burner safely. Burners Long gas Burner - esF.1.B.g35 Medium gas Burner - esF.1.B.g28 round gas Burner - esF.1.B.g16 Included items INSTALLATION,... - Page 11 Standard equipment Received Assembling the control panel Confirm you have received all necessary parts as illustrated on page 9. 4. From the front of the control panel, secure the sparker by attaching the plastic nut. 1. attach the valve to the back of the control panel using the provided 5.
-
Page 12: Burner Assembly - Propane
engLisH Burner Assembly - Propane PROPANe 1. unpack burner box. remove all items and check against the items listed on page 9 of the manual to ensure all parts needed are ready. 2. ensure you have assembled the control panel, as outlined on page 10. 7. - Page 13 Burner Assembly - Propane 11. ensure propane tank is in the oFF position. attach propane hose 15. Insert the fully assembled Control Panel into the side of the Surround and included regulator to propane tank. Unit, feeding the cables and wires back in under the unit as needed until the control panel is firmly in place.
-
Page 14: Burner Assembly - Natural Gas
engLisH Burner Assembly - Natural Gas NATURAL GAS 6. Insert orifice #31 in the gas inlet of the burner and tighten using two adjustable wrenches. Do not over tighten. Note: Connection of this product to Natural Gas must be completed by a licensed gas plumber / installer only. Do not attempt to install this product with Natural Gas without a licensed installer present. - Page 15 Burner Assembly - Natural Gas 13. route the natural gas line from below the surround unit out through 17. Plug the Ignitor wire and grounding wire into the back side of the the control panel opening. sparker. These wires can be plugged into either port on the back side of the sparker box.
-
Page 16: Lighting And Operating
engLisH Lighting and Operating FOR YOUR SAFeTY, ReAD BeFORe LIGHTING To extinguish Turn control valve to “OFF” position or close ball valve. Close valve on propane tank while not in use. WARNING! If you do not follow these instructions exactly, a fire or explosion may result causing property Initial break-in procedure: When you light the appliance, you may damage, personal injury, and/or loss of life. -
Page 17: Troubleshooting
Troubleshooting Symptom Possible Causes Corrective Actions Check the LP (propane) tank. You may be out of No LP in tank, or NG main not turned on. gas. or check natural gas valve at main. Appliance won’t light Check the burner orifice for stoppage. Remove Plugged burner orifice. -
Page 18: Service And Maintenance
engLisH Service and maintenance although the frequency of appliance servicing and maintenance will WARNING depend on use and the type of installation, a qualified service technician should perform an appliance check-up annually. Annual inspection by qualified technician recommended. storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. -
Page 19: Reference Materials
Reference Materials Service Parts List Replacement Parts LP / NG BURNeR Burner assembly ecosmart Fire Long gas Burner ESF.1.SU.G35 Burner assembly ecosmart Fire Medium gas Burner ESF.1.SU.G28 Burner assembly ecosmart Fire round gas Burner ESF.1.SU.G16 Control Key ESF.1.P.KEY Control Knob ESF.1.P.KNB... - Page 20 engLisH Reference Materials Limited One Year Warranty ecosmart inc extends the following warranty for gB series decorative This warranty is limited to the replacement or repair of defective outdoor gas fire products used in the United States of America or components or workmanship and ecosmart inc may fully discharge its Canada.
- Page 21 The Warranties set out above are express Warranties given by DATE OF PURCHASE ecosmart inc and are in addition to the rights and remedies which are conferred upon consumers by Trade Practices Act 1974 of the PURCHASED FROM Commonwealth and other Commonwealth, State or Territory legislation. PRIMARY USE Service under the warranties set out above must be provided by ecoSmart Inc Authorised Customer Service Centre which shall...
- Page 22 ecoSmart Inc 3641 Holdrege avenue Suite B Los Angeles CA 90016 USA T + 1 (888) 590.3335 E customersupport@ecosmartfire.com V251115...
