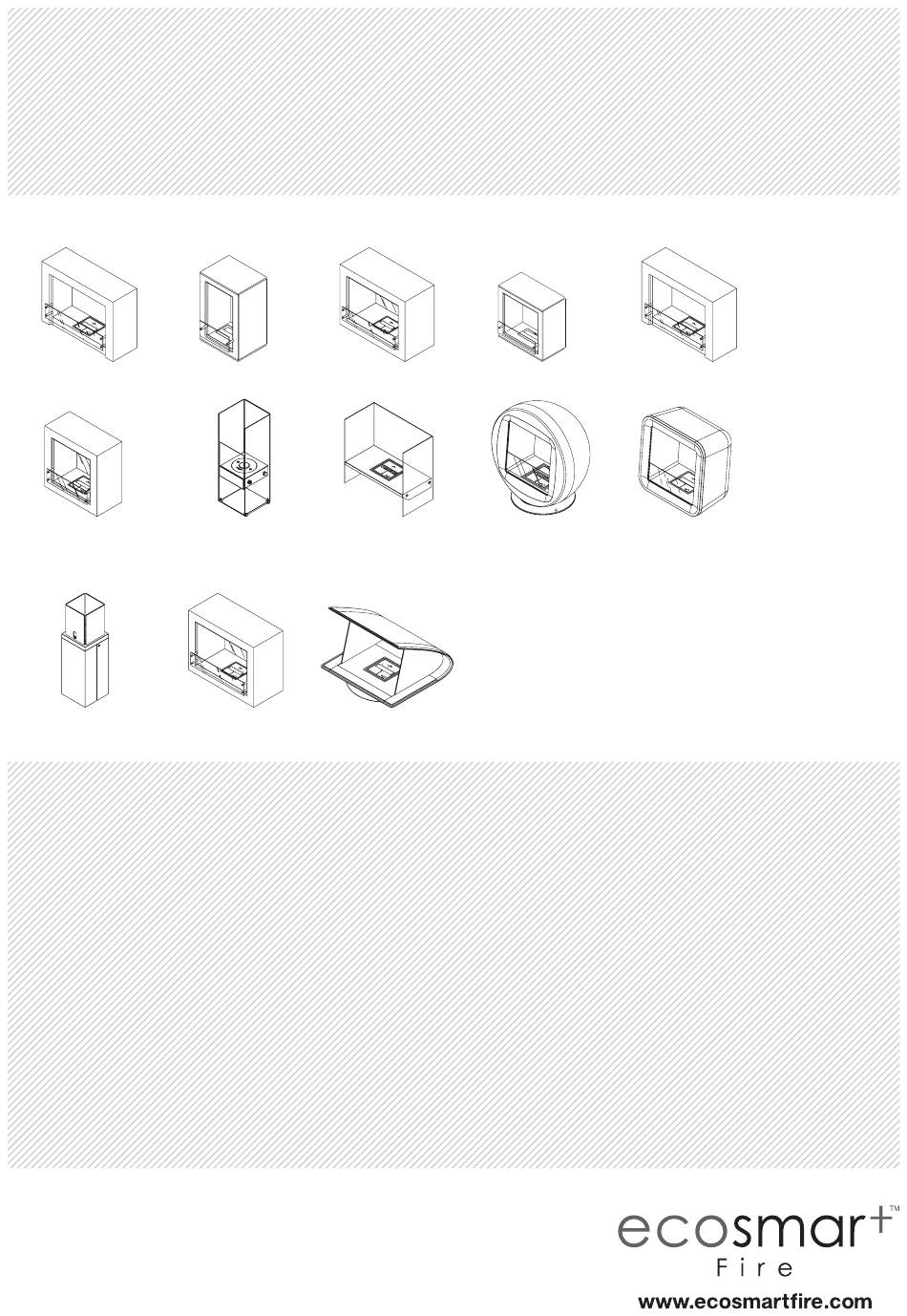

CLEARANCES
& INSTALLATION
Please read these instructions completely
before operating the EcoSmart™ Fire.
Designer Range
Aspect
Citi
53kg, 116.8lbs
48.8kgs, 107.6lbs
Fusion
Ghost
58.7kgs, 129.4bs
38kgs, 83.7lbs
Tower
Vision
46.6kgs, 102.7lbs
72.1kg, 159lbs
Cube
Cube Jr
49.2kgs, 108.5lbs
59.8kgs, 131.8lbs
Igloo
Q
54.5kg, 120.1lbs
57.1kgs, 125.9lbs
Zeta
66.3kgs, 146.2lbs
Oxygen
66.2kgs, 146lbs
Retro
41.1kgs, 90.6lbs
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EcoSmart Fire Aspect
Summary of Contents for EcoSmart Fire Aspect
- Page 1 CLEARANCES & INSTALLATION Please read these instructions completely before operating the EcoSmart™ Fire. Designer Range Aspect Citi Cube Cube Jr Oxygen 53kg, 116.8lbs 48.8kgs, 107.6lbs 49.2kgs, 108.5lbs 59.8kgs, 131.8lbs 66.2kgs, 146lbs Fusion Ghost Igloo Retro 58.7kgs, 129.4bs 38kgs, 83.7lbs 54.5kg, 120.1lbs 57.1kgs, 125.9lbs...
-
Page 2: Clearances & Installation
When used outdoors it is important that the model be positioned in a large open space ensuring that the nearest combustible (trees, Aspect, Citi, Cube, Cube Jr, Oxygen, Zeta branches, umbrellas, ceilings etc) are a minimum of 2000mm [78.74in] There are no additional requirements for side and/or overhead away in all weather conditions (for example, on windy days where there clearances. - Page 3 WARNUNG: Halten Sie das Feuer mindestens 1.500 mm [59,1 entre l’EcoSmart™ et tout ce qui pourrait prendre feu. Zoll] von brennbaren Materialien fern. Aspect, Citi, Cube, Cube Jr, Oxygen, Zeta Aspect, Citi, Cube, Cube Jr, Oxygen, Zeta Ces modèles n’ont pas besoin de dégagement de sécurité sur les Es gibt keine zusätzlichen Vorschriften für die Mindestabstände der...
- Page 4 DESIGNER RANGE INSTALLATION WARNING: Tipping hazard. Follow these instructions to install the Fire securely. ASPECT, CITI, CUBE, CUBE JR, OXYGEN Drywall/Plasterboard - Concrete/Brick Equipment required: pencil, phillips head screw driver, hammer and drill. 1. Confirm you have received all necessary parts as illustrated. For installing against a plasterboard/drywall you will need parts A + C.
- Page 5 Installation des EcoSmart™ Fire zu gewährleisten. le système EcoSmart™ Fire doit être installé dans une position solidement ancrée en utilisant les pièces fournies et en suivant ces ASPECT, CITI, CUBE, CUBE JR, OXYGEN ASPECT, CITI, CUBE, CUBE JR, OXYGEN Trockene Mauer/Gipskartonwand – Beton/Stein Cloison sèche –...
- Page 6 ENGLISH Clearances & Installation GHOST Equipment required: Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit. Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit. 1. Confirm you have received all necessary parts as illustrated. For A x 4 B x 4 C x 4...
-
Page 7: Erforderliches Werkzeug
DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation GHOST GHOST Erforderliches Werkzeug: Equipment required: Bauholz/Holz: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Timber/Wood: pencil, short philips head screw driver, drill Bohrer und Pilotbohrer-Bohrspitze and pilot drill bit. Beton/Stein: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Concrete/Stone: pencil, short philips head screw driver, hammer, Mauerbohrer und Mauerbohrspitze. - Page 8 ENGLISH Clearances & Installation RETRO Equipment required: Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit. Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit. 1a. Confirm you have received all necessary parts as illustrated for installing in timber/wood.
- Page 9 DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation RETRO RETRO Erforderliches Werkzeug: Equipment required: Bauholz/Holz: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Timber/Wood: pencil, short philips head screw driver, drill and pilot Bohrer, Pilotbohrer-Bohrspitze drill bit. Beton/Stein: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Concrete/Stone: pencil, short philips head screw driver, hammer, Mauerbohrer und Mauerbohrspitze.
- Page 10 ENGLISH Clearances & Installation Equipment required: Timber/Wood: pencil, short philips head screw driver, drill and pilot drill bit. Concrete/Stone: pencil, short philips head screw driver, hammer, masonry drill and masonry bit. 1a. Confirm you have received all necessary parts as illustrated for installing in timber/wood.
- Page 11 DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation Erforderliches Werkzeug: Equipment required: Bauholz/Holz: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Timber/Wood: pencil, short philips head screw driver, drill and pilot Bohrer, Pilotbohrer-Bohrspitze drill bit. Beton/Stein: Bleistift, Kreuzschlitzschraubendreher mit kurzem Griff, Concrete/Stone: pencil, short philips head screw driver, hammer, Mauerbohrer und Mauerbohrspitze.
- Page 12 ENGLISH Clearances & Installation TOWER Equipment required: Timber/Wood: pencil, philips head screw driver, drill and pilot drill bit. Concrete/Stone: pencil, philips head screw driver, hammer, masonry drill and masonry bit. 1a. Confirm you have received all necessary parts as illustrated for installing in timber/wood.
- Page 13 DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation TOWER TOWER Erforderliches Werkzeug: Equipment required: Bauholz/Holz: Bleistift, Kreuzschlitzschraubendreher, Bohrer und Timber/Wood: pencil, philips head screw driver, drill and pilot drill bit. Pilotbohrer-Bohrspitze Concrete/Stone: pencil, philips head screw driver, hammer, masonry Beton/Stein: Bleistift, Kreuzschlitzschraubendreher, Mauerbohrer und drill and masonry bit.
- Page 14 ENGLISH Clearances & Installation VISION, FUSION Note: The Vision/Fusion is heavy - you will need two (2) people to perform this procedure. Equipment required: pencil, phillips head screw driver, drill. 1. Underneath the Vision/Fusion there is a removable locking base, to access it, remove the nylon feet, locate and remove the plugs and screws found on all sides of the skirting.
- Page 15 DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation VISION, FUSION VISION, FUSION Hinweis: Das Modell Vision/Fusion ist schwer. Für den folgenden Note: The Vision/Fusion is heavy - you will need two (2) people to Ablauf sind zwei (2) Personen erforderlich. perform this procedure.
- Page 16 ENGLISH Clearances & Installation ZETA Min 600mm / 23.6 inches Timber / Wood - Concrete / Stone A x 1 Equipment required: pencil, short philips head screw driver, hammer, masonry drill and masonry bit for concrete/stone settings, drill and pilot drill bit for timber/wood settings.
-
Page 17: Matériel Nécessaire
DEUTSCH FRANÇAIS Abstände und Installation Distances de dégagement & Installation ZETA ZETA Bauholz/Holz – Beton/Stein Surface Bois - Béton / Pierre Erforderliches Werkzeug: Bleistift, Kreuzschlitzschraubendreher mit Matériel nécessaire kurzem Griff, Mauerbohrer und Mauerbohrspitze für Installationen auf Surface bois: crayon à papier, tournevis cruciforme à manche court, Beton/Stein und Pilotbohrer und Pilotbohrer-Spitze für Installationen perceuse et foret pilote. - Page 18 Notes / Notizen...
- Page 20 T: +61 2 9997 3050 E: info@thefirecompany.com.au REV090911...
