INSTALLATION,
OPERATION
AND MAINTENANCE
MANUAL
MOTION ELECTRIC SERIES
AC 120V 60Hz 1,465W (5,000 BTU's)
(2,930W 10,000 BTU's capable)

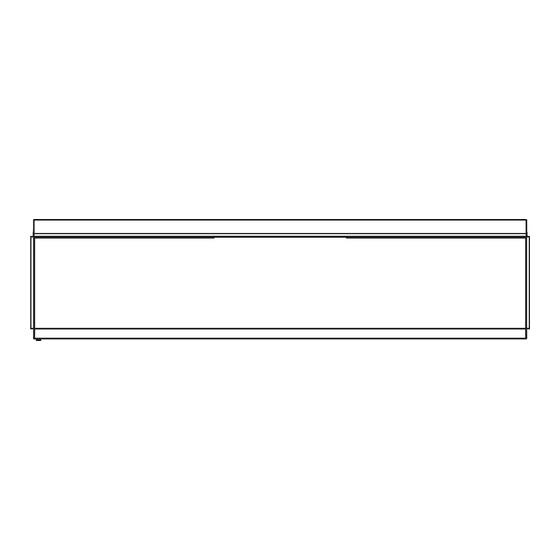

Motion 30
Motion 52
23.2kg, 51lbs
56.2kg, 124lbs
Motion 100
105kg, 231.5lbs
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE OPERATING THE ECOSMART™ FIRE.
FAILURE TO FOLLOW THEM COULD CAUSE A HEATER MALFUNCTION RESULTING IN SERIOUS
INJURY AND/OR PROPERTY DAMAGE.
WARNING: ALL ELECTRIC HEATERS HAVE HOT AND ARCING OR SPARKING PARTS INSIDE. DO NOT
USE IT IN AREAS WHERE GASOLINE, PAINT OR FLAMMABLE LIQUIDS ARE OR ARE STORED.
THIS FIREPLACE MEETS THE CONSTRUCTION AND SAFETY STANDARDS OF H.U.D. FOR
APPLICATION IN MANUFACTURED HOMES WHEN INSTALLED ACCORDING TO THESE INSTRUCTIONS.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Keep this owner's manual for future references. If you sell or give this product away,
make sure this manual accompanies this product.
Motion 60
62.75kg, 138.3lbs
Motion 120
126kg, 278lbs
Motion 76
79.34kg, 175lbs
605960
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoSmart Fire Motion 30
Summary of Contents for EcoSmart Fire Motion 30
- Page 1 INSTALLATION, OPERATION 605960 AND MAINTENANCE MANUAL MOTION ELECTRIC SERIES AC 120V 60Hz 1,465W (5,000 BTU’s) (2,930W 10,000 BTU’s capable) Motion 30 Motion 52 Motion 60 Motion 76 23.2kg, 51lbs 56.2kg, 124lbs 62.75kg, 138.3lbs 79.34kg, 175lbs Motion 120 Motion 100 126kg, 278lbs 105kg, 231.5lbs...
-
Page 2: Important Instructions
ENGLISH Important Instructions When using electrical heaters, basic precautions should always be WARNING: Improper installation, adjustment, alteration, service followed to reduce the risk of fire, electric shock and injury to persons, or maintenance can cause injury or property damage. Refer to including the following: this manual. -
Page 3: Table Of Contents
Table of Contents Contents Preparation Installation and Assembly Glass Removal / Installation Built-in Installation Styles Built-in Installation Framing Built-in Installation Partial Recess Installation Wall Mounted Installation Hardwiring Installaion Driftwood Logs and Crushed Glass Installation Operation Operation – Touch Control Panel Operation - Remote Control Operation - Important Warnings Care and Maintenance... -
Page 4: Preparation
ENGLISH Preparation This product includes a GLASS panel. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. -
Page 5: Installation And Assembly
Installation and Assembly Dimensions and Specifications Model Motion 30” 24-5/16” 9-9/16” 29-1/8” 23-7/8” 8-15/16” 28-5/8” 18-7/16” 2” 3-7/16” 5-3/16” 762 mm 618 mm 240 mm 740 mm 606 mm 224 mm 727 mm 468 mm 52 mm 87 mm 132 mm Motion 51-1/2”... -
Page 6: Glass Removal / Installation
ENGLISH Glass Removal / Installation This product includes a GLASS panel. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Removing Front Glass • With one hand on the front glass to prevent it from falling, remove the six screws (three per side) and two brackets (one per side) from the underside of the viewing area of the fireplace. -
Page 7: Built-In Installation Styles
Built-in Installation Styles Optional Built-In styles shown below. See “Partial Recess Installation” or “Wall Mounted Installation” for additional mounting styles. Motion Bay (3 Open Sides) Motion Left Corner (2 Open Sides: Front and Left Corner) Motion Right Corner (2 Open Sides: Front and Right Corner) Motion Single Sided (1 Open Side) -
Page 8: Built-In Installation Framing
Motion Right Corner Rough Opening Framing Dimensions (For Built-in Installation) Model Number (Single Sided) (Bay/Left & Right Corner) (Fully Recessed) 24-3/4” 9” min. Motion 30 29-1/4” (743 mm) 29-1/8” (740 mm) (629 mm) (229 mm min.) 51” 50-5/8” 24-3/4” 9” min. -
Page 9: Built-In Installation
Built-in Installation • Determine the desired installation style (see “Built-In Installation Styles”). i. See “Wall Mounted Installation” for wall mounting the fireplace. ii. See “Partial Recessed Installation” for partial recessing the fireplace. • Prepare the framed opening according to the “Framed Opening Dimensions”... - Page 10 ENGLISH Built-in Installation (Continued) • Hardwire the fireplace to the dedicated power circuit (see “Hardwiring Installation”). • Install the fireplace in the framed opening. Adjust the adjustable feet as needed to ensure the fireplace is level. • Fasten the fireplace to the framing using the “L” Metal Nailing Flanges and drywall screws that have a minimum length of 1-1/4”...
-
Page 11: Partial Recess Installation
NOTE: Use a dedicated 20 Amp (or higher), 2-pole (for 10,000 BTUs) circuit breaker. Finished Opening Framing Dimensions (For Partial Recess Installation) Model Number (Partial Recessed) Motion 30 29-7/16” (748 mm) 24-9/16” (624 mm) 2-5/8” min. (67 mm min.) Motion 52 50-15/16”... - Page 12 ENGLISH Partial Recess Installation (Continued) • Hardwire the fireplace to the dedicated circuit (see “Hardwiring • Mask the exposed viewing area of the fireplace prior to texturing/ Installation”). finalizing the framed wall. • Install the fireplace in the framed opening. Adjust the adjustable feet •...
-
Page 13: Wall Mounted Installation
Wall Mounted Installation • Install the wall bracket to the studs using #8 – 1-5/8” (A) screws and Due to the different materials used on different to the wall anchors with a #8 – 1” screws (C). walls, it is highly recommended for you to consult with your local builder before you install this electric fireplace. -
Page 14: Hardwiring Installaion
ENGLISH Hardwiring Installaion A qualified electrician must wire this fireplace to a dedicated 110 ~ 120 • Ensure power from the circuit breaker is off. volt, 20 amps, circuit. • Remove the 2 securing screws from the junction box cover plate, located on the top left-hand, back- side of the appliance (Fig. - Page 15 Hardwiring Installaion (Continued) 240 Volt Power (10,000 BTUs): This fireplace is equipped with the ability to optionally wire with 240 • Ensure that power from the circuit breaker is off. volts, which will supply 10,000 BTU’s of heat. • Remove the 2 securing screws from the junction box cover plate, located on the top left-hand, back- side of the appliance (Fig.
-
Page 16: Driftwood Logs And Crushed Glass Installation
ENGLISH Driftwood Logs and Crushed Glass Installation • Front glass must be removed and the appliance must be mounted • If crushed glass falls into the channel used by the front glass, in its final location before the driftwood logs and crushed glass is preventing the front glass from being installed, the channel can be installed. -
Page 17: Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Connect only to a dedicated 110-120 (or optional 220-240 volt 20 Amp breaker (see IMPORTANT SAFETY INFORMATION). -
Page 18: Methods Of Operation
ENGLISH Operation (Continued) Methods of Operation This electric fireplace can be operated by the Touch Control Panel located on the UPPER right corner of the fireplace, or by the battery- powered Remote Control. Touch Control Panel Remote Control ecosmartfire.com... -
Page 19: Operation - Touch Control Panel
Operation – Touch Control Panel Touch Panel Operation Button Function Action 1. Press once: Indicator light turns on. Power turns on. All functions enabled. ON: Enables control panel functions. Turns on flame. 2. Press again: Flame turns off. Unit goes to standby. All functions turn off. -
Page 20: Operation - Remote Control
ENGLISH Operation - Remote Control Remote Control Operation Button Function Action 1. Press once: Indicator light turns on. Power turns on. ON: Enables control panel functions. Turns on flame. All functions enabled. OFF: Disables control panel functions. Turns off flame. 2. - Page 21 Operation - Remote Control (Continued) Remote Control Operation Button Function Action 1. Press once: Changes the volume level. 2. Press again cycles between volume settings. Volume settings: AUDIO BUTTON: Raises and lowers the audio from the S0 - Off fireplace. S1 - Low S2 - Medium S3 - High...
-
Page 22: Operation - Important Warnings
ENGLISH Operation - Important Warnings Temperature Limiting Control Note This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the heater will automatically turn When the heater is first turned on, a slight odor may be present. This Off. -
Page 23: Care And Maintenance
Care and Maintenance Cleaning Maintenance Always turn heater OFF from the breaker before Risk of electric shock! Do not open any panels! No cleaning, performing maintenance, or moving this user-serviceable parts inside! fireplace. Failure to do so could result in electric Always turn the heater OFF from the breaker shock, fire, or personal injury. -
Page 24: Replacement Parts List
ENGLISH Replacement Parts List SPARE REF. PARTS, PART Motion 30 Motion 52 Motion 60 Motion 76 Motion 100 Motion 120 NUMBERS Mirror Glass, ESF.1.A.P.MN.30. ESF.1.A.P.MN.52. ESF.1.A.P.MN.60. ESF.1.A.P.MN.76. ESF.1.A.P.MN.100. ESF.1.A.P.MN.120. Virtual Screen MGVS MGVS MGVS MGVS MGVS MGVS Side Glass ESF.1.A.P.MN.SDG Side Trim ESF.1.A.P.MN.SDT... - Page 25 Replacement Parts List (continued) SPARE REF. PARTS, PART Motion 30 Motion 52 Motion 60 Motion 76 Motion 100 Motion 120 NUMBERS Hardware Kit ESF.1.A.P.MN.HWK Memory Stick ESF.1.A.P.MN.MST Smoked Crush ESF.1.A.P.MN.SCG Glass Log, Motion, 1 ESF.1.A.P.MN.LOG.1 Log, Motion, 2 ESF.1.A.P.MN.LOG.2 Log, Motion, 3 ESF.1.A.P.MN.LOG.3...
-
Page 26: Troubleshooting / Faq
ON position. Inspect circuit boards for loose connections or Main PCB board issue. obvious damage. Call EcoSmart Fire Customer Service for support on (888) 590.3335. Allow 20-30 seconds for the fireplace to fully Fireplace has not fully turned on. - Page 27 Inspect the LCD and replace if necessary. Dim or no flame. Inspect circuit boards for loose connections or Main PCB board issue. obvious damage. Call EcoSmart Fire Customer Service for support on (888) 590.3335. Brightness is not selected. See “Operation” section.
- Page 28 MAD Design USA 311 N. Robertson Blvd. Private Mail Box #932 Beverly Hills, CA 90211 T +1 (888) 590.3335 E info@mad-usa.com V2403 This product is distributed by EcoSmart Inc DBA MAD Design USA.
