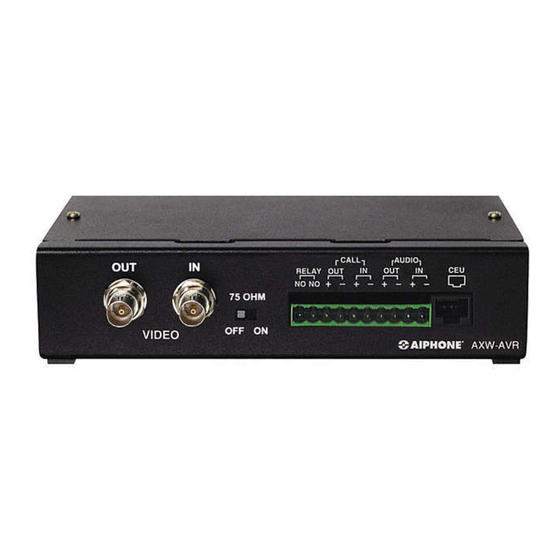

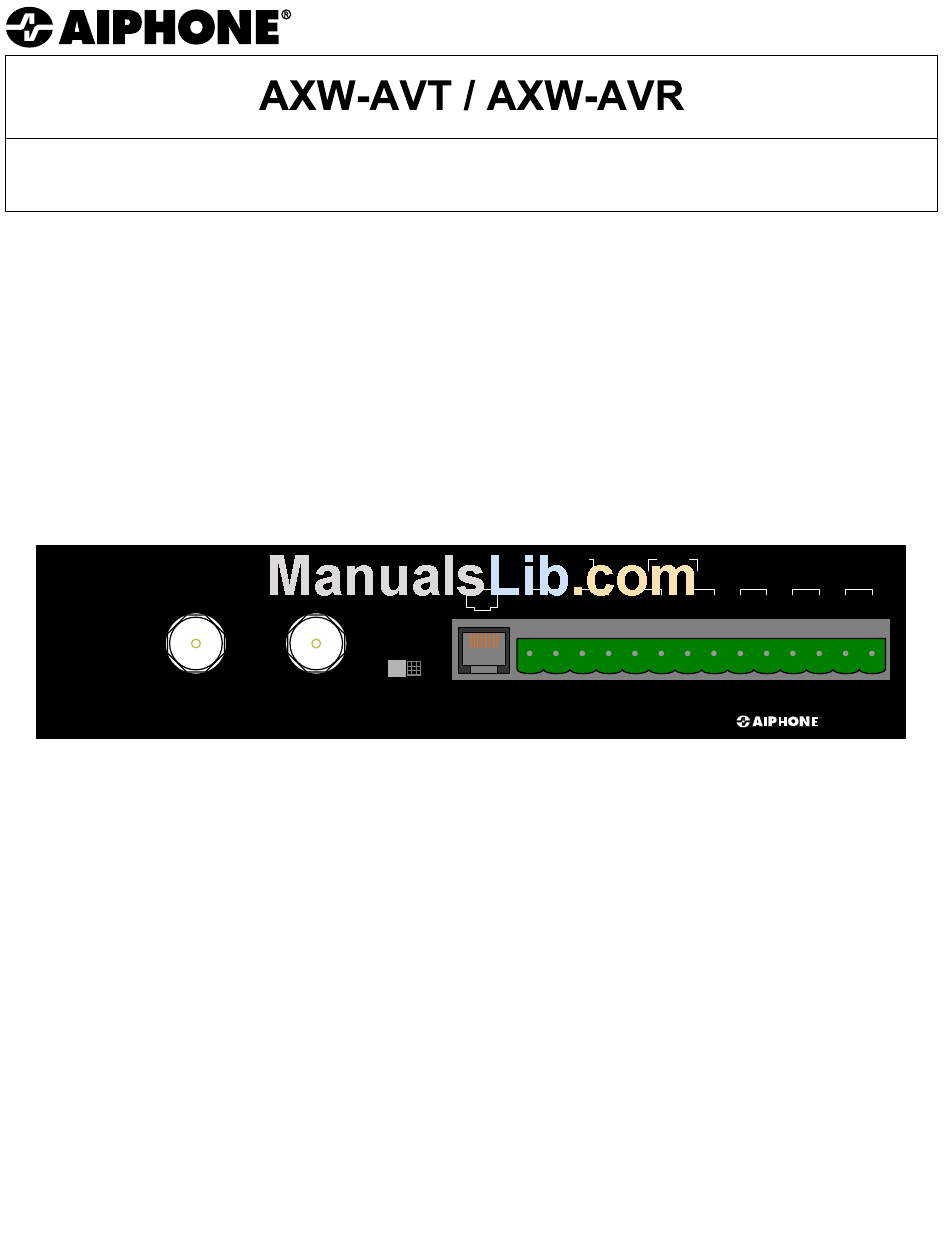

AX Series Audio-Video Adaptor for 3
The AXW-AVT and AXW-AVR are designed to allow connection of a standard AX-series audio video door
station (or audio-only IE-series door station) via the AXW-AVT, conditioning the signal for use with 3
transmission equipment (fiber optics, Ethernet, etc.) and converting it back via the AXW-AVR to a signal
compatible with the AX-series exchange unit. External video input/output is provided at both adaptors to
rd
allow 3
party camera input, output to recording devices, etc. A motion detector or other activation device
can be connected to the Sensor input to trigger door / camera activation (AXW-AVT only). The units also
feature a relay output to trigger an external device, such as a DVR or video switcher local to either the AXW-
AVT or AXW-AVR whenever the audio and/or video is active. Alternatively, the AXW-AVT can be used to
adapt an AX-series audio video door station to a standalone third party device (video server, network DVR,
etc).
AXW-AVT
OUT
AXW-AVT TERMINAL DEFINITIONS:
DOOR (RJ-45 Jack):
AUDIO IN/OUT:
CALL IN/OUT:
SENSOR NC, NC:
RELAY NO, NO:
VIDEO IN:
VIDEO OUT:
CCTV / DOOR SWITCH: Determines whether AX-series audio/video door station video ('DOOR' setting) or
24V +, -
0311
- INSTRUCTIONS -
IN
VIDEO
CCTV DOOR
RJ-45 connection from AX-series audio video door, or spliced audio only door (IE/
IF-series).
Input / Output connections for audio transmission (line level, polarity indicated by
'+' and '-').
Transistor-switched input / output to be connected to relay input / output on
transmission equipment. 'Call In' indicates call placed by door station, 'Call Out'
indicates master-initiated activity (polarity indicated by '+' and '-').
Normally Closed contact input, activates 'Call In' function when tripped by external
motion detector or other device with N/C contacts.
Normally Open relay contact, activated whenever communication is active.
Composite input signal from CCTV camera, if used in place of AX-series audio
video door station.
Composite output to external transmission equipment. Source dependent upon
CCTV / DOOR switch.
external CCTV video ('CCTV' setting) will be present on 'VIDEO OUT' for
connection to external transmission equipment.
24V DC input (use Aiphone PS-2420UL).
rd
Party Transmission Equipment
AUDIO
DOOR
IN
OUT
IN
+
-
+
-
+
CALL
SENSOR
RELAY
OUT
-
+
-
NC NC
NO NO
AXW-AVT
rd
party
24V
+
-
Pg. 1
Advertisement
Related Manuals for Aiphone AXW-AVR
Summary of Contents for Aiphone AXW-AVR
- Page 1 DVR or video switcher local to either the AXW- AVT or AXW-AVR whenever the audio and/or video is active. Alternatively, the AXW-AVT can be used to adapt an AX-series audio video door station to a standalone third party device (video server, network DVR, etc).
- Page 2 Determines whether AX-series audio video door station video (‘DOOR’ setting) or external CCTV video (‘CCTV’ setting) will be present on ‘VIDEO OUT’ for connection to external transmission equipment. CEU (RJ-45 Jack): RJ-45 connection from AXW-AVR to CEU, simulating a standard AX-series Audio/ Video door station. COMPATIBLE DOOR STATIONS (AXW-AVT): AX-DV...
- Page 3 Please Note: Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3 responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http:// www.aiphone.com or contact Aiphone Technical Support.
-
Page 4: Configuration Diagram
AX-CEU has been programmed to accept a video door station on that input (see Pg. 2). 2. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the Meridian fiber receiver module (as detailed below, Fig. 2). For complete pin definitions, consult the Meridian installation document. - Page 5 Infinova installation document. Please Note: Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3 responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http:// www.aiphone.com or contact Aiphone Technical Support.
- Page 6 AX-CEU has been programmed to accept a video door station on that input (see Pg. 2). 2. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the terminal block of the Infinova N3732RA-M, as shown.
- Page 7 AFI MT-89A-AX installation sheet. Please Note: Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3 responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http:// www.aiphone.com or contact Aiphone Technical Support.
- Page 8 Configuration Notes (2 of 2): 1. Connect the Call In / Call Out and Audio In / Audio Out connections on the AXW-AVR to the terminal block of the AFI MR-89A-AX, as shown. For detailed terminal definitions, consult the AFI MR-89A-AX installation sheet.
- Page 9 VIDEO OUT Please Note: Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3 responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 for further information regarding physical mounting, base functionality, power requirements, etc. For the most up-to-date compatibility information, please consult http:// www.aiphone.com or contact Aiphone Technical Support.
- Page 10 Power supply connections to the KBC fiber modules are not shown, and are dictated by the mounting method chosen (standalone, rack mount, etc.). Contact KBC for available options. AXW-AVT / AXW-AVR should be mounted as close as possible to their corresponding KBC fiber modules. Avoid mounting units near high voltage AC devices, or other sources of inductive noise.
- Page 11 4. Configure AXW-AVT internal jumpers as necessary (see Pg. 21). Please Note: Only information pertaining to the connection and operation of the AXW-AVT / AXW-AVR and listed 3 responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 for further information regarding physical mounting, base functionality, power requirements, etc.
- Page 12 AXW-AVT Internal Jumper Settings: The AXW-AVT has three internal jumper settings to control the functionality and conditioning of the audio circuitry. These should be adjusted as necessary, based on the selection of fiber / Ethernet equipment used. To access these jumpers, the chassis of the AXW-AVT will need to be opened. Adjusting these jumper settings will NOT invalidate the AXW-AVT’s warranty.
-
Page 13: Specifications
Only information pertaining to the connection and operation of the AXW-AVT, AXW-AVR and devices interfacing with it are included here. Aiphone is not responsible for attempts to connect the AXW-AVT / AXW-AVR to untested 3 transmission hardware. For the most up-to-date compatibility information, please consult http://www.aiphone.com or contact Aiphone Technical Support.
