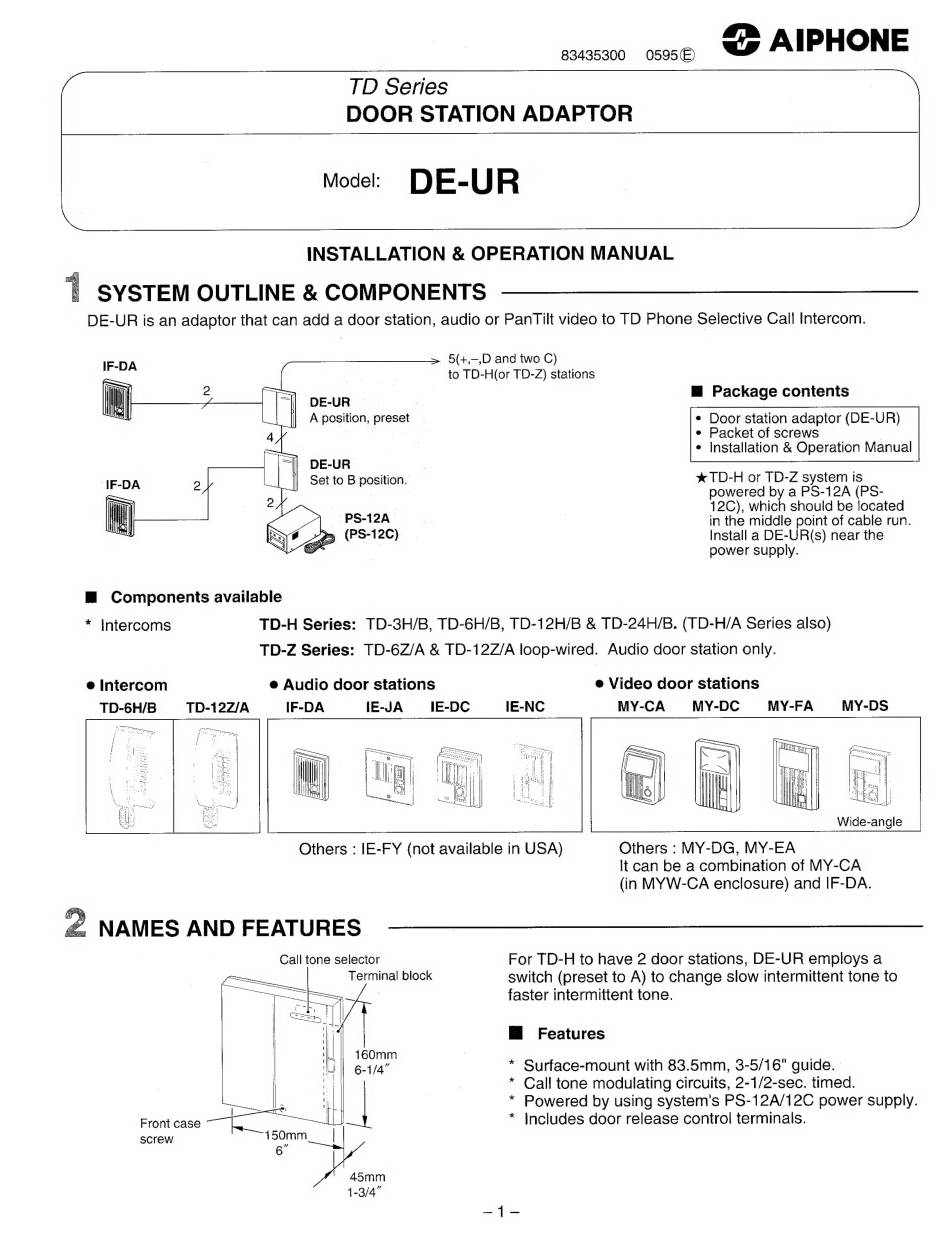

TD Series
DOOR STATION ADAPTOR
Mode:
DE-UR
INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & COMPONENTS
DE-UR is an adaptor that can add a door station, audio or PanTilt video to TD Phone Selective Call Intercom.
5(+,—,D and two C)
to TD-H(or TD-Z) stations
| DE-UR
E Package contents
A position, preset
|

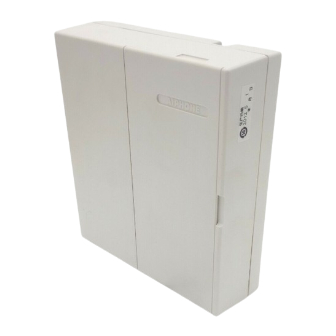

e Door station adaptor (DE-UR)
|
e Packet of screws
e Installation & Operation Manual
- DE-UR
|
i | Set to B position.
* TD-H or TD-Z system is
powered by a PS-12A (PS-
12C), which should be located
PS-12A 00
in the middle point of cable run.
ea (PS-12C)
Install a DE-UR(s) near the
°
power supply.
m
Components available
* Intercoms
TD-H Series:
TD-3H/B, TD-6H/B, TD-12H/B & TD-24H/B. (TD-H/A Series also)
TD-Z Series: TD-6Z/A & TD-12Z/A loop-wired. Audio door station only.
e Intercom
e Audio door stations
è Video door stations
IF-DA
IE-JA
IE-DC
IE-NC
MY-CA
MY-DC
MY-FA
MY-DS
Wide-angle
Others : IE-FY (not available in USA)
Others : MY-DG, MY-EA
lt can be a combination of MY-CA
(in MYW-CA enclosure) and IF-DA.
NAMES AND FEATURES
Call tone selector
For TD-H to have 2 door stations, DE-UR employs a
Terminal block
switch (preset to A) to change slow intermittent tone to
faster intermittent tone.
E
Features
Ji
160mm
|
6-1/4"
* Surface-mount with 83.5mm, 3-5/16" guide.
S
* Call tone modulating circuits, 2-1/2-sec. timed.
* Powered by using system's PS-12A/12C power supply.
Front case
3
Includes door release control terminals.
screw
45mm
1-3/4"
