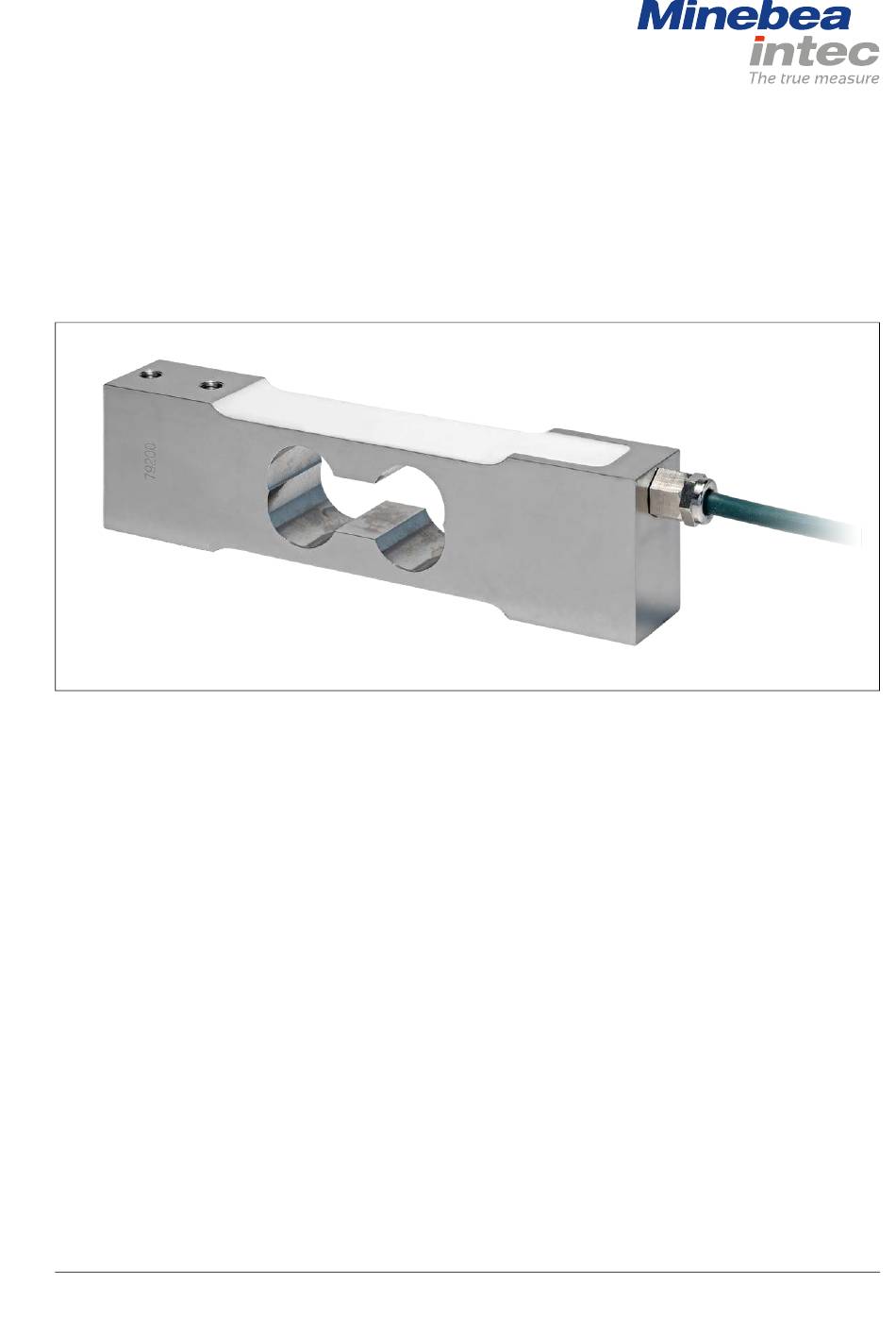

Installation Manual Single Point load cell PR 54 Translation of the Original Installation Manual 9499 053 05400 Edition 1.0.0 05/15/2023 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
Page 2
Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
Single Point load cell PR 54 Table of contents Table of contents Introduction............................3 Read the manual................................. 3 This is what operating instructions look like ......................3 This is what lists look like............................3 This is what menu items and softkeys look like..................... 3 This is what the safety instructions look like......................
Page 4
Single Point load cell PR 54 Table of contents R60/2000-NL1-17.45...............................29 TC11009..................................31 BVS 21 ATEX E 023X ..............................34 IECEx BVS 21.0024X..............................42 EN-2 Minebea Intec...
1 Introduction Single Point load cell PR 54 Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location. This is what operating instructions look like 1.
Single Point load cell PR 54 1 Introduction NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions.
The load cells are designed for use in table scales, counting scales, and checkweighers. The load cells PR 54 may only be used as intended for weighing tasks. The dimensions of all mounting and structural components must be calculated so that sufficient overload capacity is ensured for all loads which may occur while taking the relevant standards into account.
Single Point load cell PR 54 3 Specifications Specifications Equipment supplied with the load cell Description Load cell Quick guide Calibration Certificate Only with Ex-load cells: Safety information for PR xx series General information Material Stainless steel Protection against environmen-...
3 Specifications Single Point load cell PR 54 Possible marking of the load cell for the Ex area Zone Marking Certificate no. 0 and 1 II 1G Ex ia IIC T6/T4 Ga BVS 21 ATEX E 023 X only PR 5x/..E Ex ia IIC T6/T4 Ga IECEx BVS 21.0024 X...
Single Point load cell PR 54 3 Specifications Dimensions all dimensions in mm Ordering information Model Max. capacity Type OIML Type Ex Type NTEP PR 54/7.5 kg 7.5 kg ..C3MR ..C3MRE ..III5000S PR 54/10 kg 10 kg ..C3MR ..C3MRE ..III5000S...
3 Specifications Single Point load cell PR 54 Technical data Designation Description Abbr. C3MR NTEP III Unit 5000 Single Accuracy class 0.02 0.014 Minimum dead load lowest limit of specified measuring range Maximum capacity highest limit of specified measuring see Chapter...
Page 12
Single Point load cell PR 54 3 Specifications Designation Description Abbr. C3MR NTEP III Unit 5000 Single Max. supply voltage permissible for continuous operation without damage Nominal ambient to hold the specified performance -10…+40 °C temp. range Usable ambient permissible for continuous operation -20…+65...
4 Installation Single Point load cell PR 54 4 Installation Safety instructions NOTICE Welding or lightning strike current flowing through the cell can damage it. All electrical welding on the weighing system must be finished before mounting the load cells.
Single Point load cell PR 54 5 Connection Connection General information Protect the cable ends against contamination. Moisture must not get into the open end of the cable. Keep the load cell cables away from power cables. The distance between measurement cables and power cables and/or components under high voltage should be at least 1 m (reference value).
5 Connection Single Point load cell PR 54 Load cell Color code black blue green gray white + supply/LC in + supply voltage/+ load cell input + sense + sense - meas./LC out - measuring voltage /- load cell output...
Single Point load cell PR 54 5 Connection Cable gland The cable gland is screwed to the load cell. Screw the metal sleeve (1) into the load cell and fasten with a tightening torque of 3 Nm. 2. Screw the nut (2) into the metal sleeve and fasten with a tightening torque of 3 Nm.
The load cells PR 54 are maintenance-free. Repairs The load cells PR 54 are designed to be robust as possible for the required measuring accuracy and are highly reliable. Should an electrical or mechanical defect nevertheless occur, the load cell must be replaced.
Single Point load cell PR 54 7 Disposal Disposal Our products and their packaging should not be disposed of in municipal waste (e.g. garbage can for recyclable packaging, garbage can for paper packaging, etc.). They can either be recycled by the customer themselves, providing this complies with requirements set out by electrical or electronic waste or packaging waste laws, or sent back to Minebea Intec at a charge.
8 Certificates Single Point load cell PR 54 Certificates Ser. no. Description Document no. see Chapter EU-Declaration of Conformity CE-00047A UKCA-Declaration of Conformity UKCA-00006 Certificate of Conformance (NTEP) 17-046A1 Certificate of Approval (NTEP-New York) 10054 OIML Certificate of Conformity (NMi) R60/2000-NL1-17.45...
