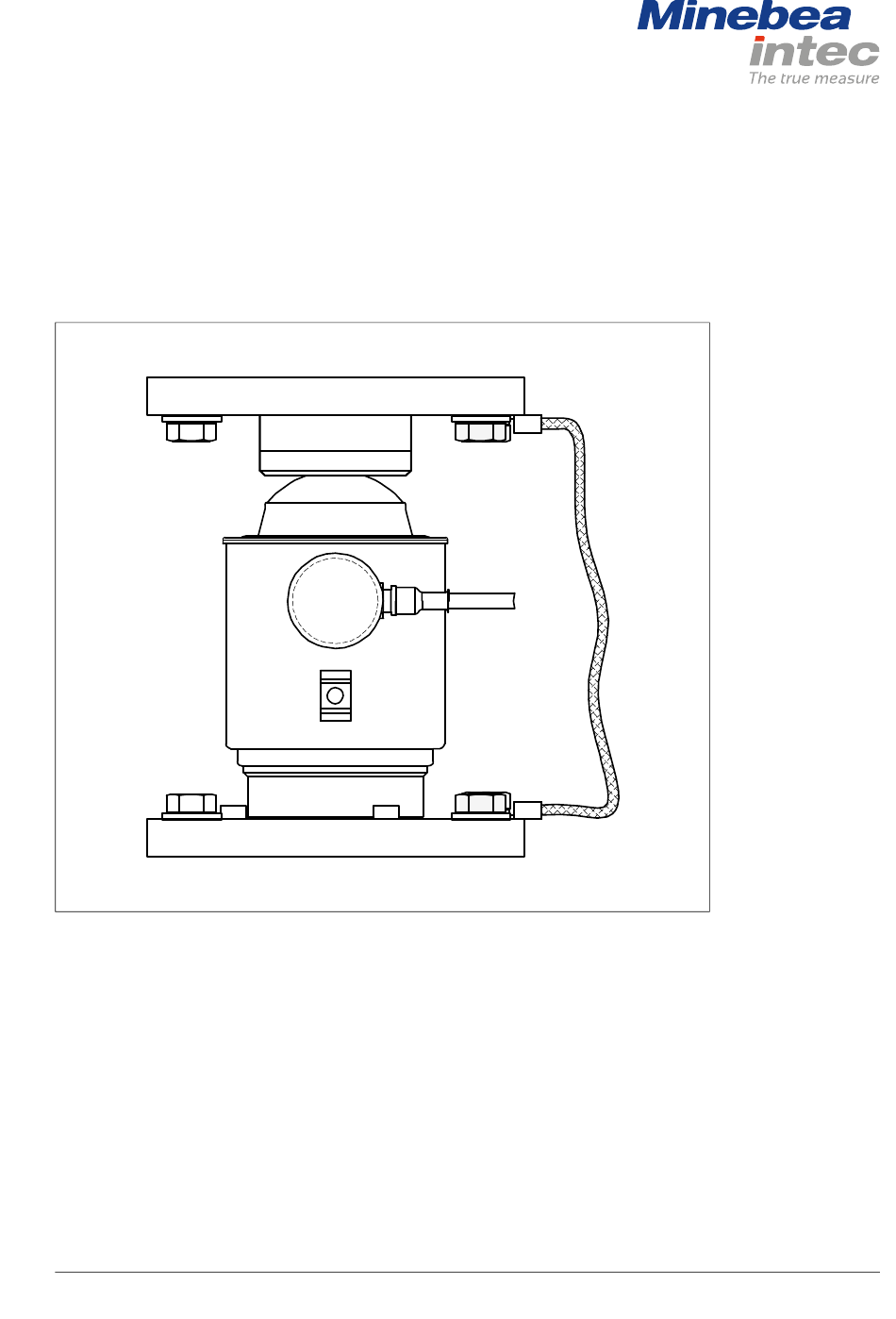

- Page 1 Installation Manual Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Translation of the Original Installation Manual 9499 053 25700 Edition 7.5.0 12/15/2022 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Table of contents Table of contents Introduction............................3 Read the manual................................. 3 This is what operating instructions look like ......................3 This is what lists look like............................3 This is what menu items and softkeys look like..................... 3 This is what the safety instructions look like...................... - Page 4 Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Table of contents CE-PR 6145 ................................20 004/2021 ..................................21 2451-CPR-EN1090-2014.2089.005 ........................23 EN-2 Minebea Intec...
-
Page 5: Introduction
1 Introduction Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location. -
Page 6: Hotline
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 1 Introduction NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. -
Page 7: Safety Instructions
Intended use The mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N are intended for weighing tasks, and must only be used as such. The mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N are designed for installing the load cells PR 6201, PR 6203, PR 6204. -
Page 8: Recommendations For Installation
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 3 Recommendations for installation Recommendations for installation Load cell and constrainer arrangement Examples: Do not constrain this position. Constrainer Load application Possible direction of movement EN-6 Minebea Intec... - Page 9 3 Recommendations for installation Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N To ensure the required free moving space of the weighing facility, a maximum of 3 mounting kits with constrainer may be used to constrain a weighing object.
-
Page 10: Specifications
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 4 Specifications 4 Specifications Equipment supplied 4.1.1 PR 6145/00, PR 6145/08, PR 6145/10 Description Lower plate Centering device (3× pin) Only for PR 6145/00S for 0.5 to 10 t: Lower load disc (order no. -
Page 11: Dimensions
4 Specifications Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Dimensions 4.2.1 Hole patterns All dimensions in mm Mounting kit PR 6145/00N+S 190.5 61.5 PR 6145/08N 290.0 30 86.5 PR 6145/10N 385.0 40 109.5 Minebea Intec EN-9... -
Page 12: Technical Data
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 4 Specifications Technical data Mounting kit PR 6145/00N PR 6145/00S PR 6145/08N PR 6145/10N Max. capacity of load cell 500 kg…75 t 500 kg…75 t 100 t 200 t, 300 t Permissible temperature range -40 °C…+100 °C... -
Page 13: Installation
5 Installation Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Installation Prior to mounting 5.1.1 Preparing the foundation/substructure The foundation for the mounting kit must be horizontal (use spirit level), flat, and rigid for the intended loads. The load distribution on the available load cells must be as even as possible to prevent overload of the individual load cells. -
Page 14: Assembly
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 5 Installation Assembly 5.3.1 Safety instructions WARNING The vessel may turn over during mounting. Securing the vessel against tipping is imperative. Use an appropriate lifting jack. NOTICE Welding or lightning strike current flowing through the cell can damage it. - Page 15 5 Installation Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Procedure: Screw the lower plate (8) to the foundation (7) and screw the upper plate (3) to the weighing object support (1). The property classes and tightening torques of the screws (2 and 12) must be observed;...
- Page 16 Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 5 Installation Insert the load cell (6) with the lower load disc (10) marked "SS" and the associated food-safe supporting ring (11) (light beige) vertically in the centering device (9) on the lower plate (8).
-
Page 17: Check Mounting
5 Installation Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Check mounting When all mounting kits have been installed, check them for proper mounting. In particular, force shunts should be avoided. It is essential to check: whether the load cell has been inserted in the mounting kit vertically and without being canted. -
Page 18: Cleaning
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 6 Cleaning Cleaning The mounting kit is easy to clean. It can be spray-washed with water. For this purpose, spray the water jet from top to bottom and around the mounting kit. -
Page 19: Disposal
7 Disposal Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Disposal Our products and their packaging should not be disposed of in municipal waste (e.g. garbage can for recyclable packaging, garbage can for paper packaging, etc.). They can... -
Page 20: Spare Parts And Accessories
Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 8 Spare parts and accessories Spare parts and accessories Replacement parts Description Max. capacity Order no. Upper load disc (for PR 6145/08N) 100 t 5322 520 10552 Upper load disc (for PR 6145/10N) -
Page 21: Certificates
9 Certificates Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N Certificates Ser. no. Description Document no. see Chapter CE marking CE-PR 6145 Declaration of Performance 004/2021 Conformity of the Factory Production 2451-CPR-EN1090-2014.2089.005 Control Minebea Intec EN-19... - Page 22 Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 9 Certificates CE-PR 6145 EN-20 Minebea Intec...
- Page 23 9 Certificates Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 004/2021 Minebea Intec EN-21...
- Page 24 Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 9 Certificates EN-22 Minebea Intec...
- Page 25 9 Certificates Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 2451-CPR-EN1090-2014.2089.005 Minebea Intec EN-23...
- Page 26 Mounting kits PR 6145/00N, PR 6145/00S, PR 6145/08N, PR 6145/10N 9 Certificates EN-24 Minebea Intec...
- Page 28 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...
