Randell 2127AC Specifications

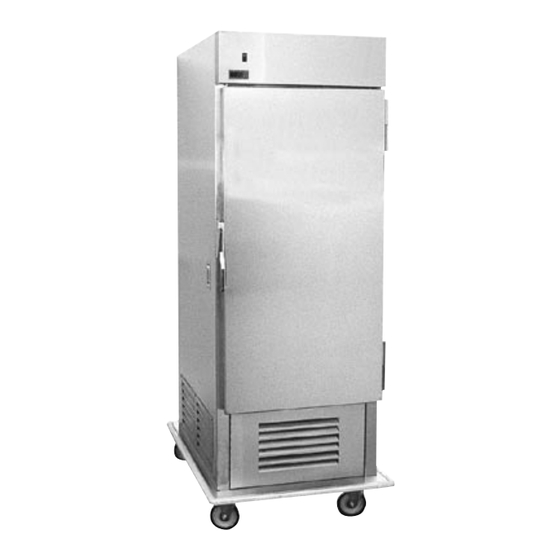

Upright Air Curtain Single Door Refrigerator
Description:
Air Curtain refrigerators are ideal for a variety of operations,
including (but not limited to); metal tray assembly lines, flight
kitchens, buffet/cafeteria lines and fast food operations. The all
stainless steel design offers easy clean-up and long life, while
maintaining an attractive appearance. Strategically designed air
flow patterns assure cold air is circulated across the cabinet
front to maintain proper serving temperatures under the given
guidelines of NSF.
Specifications:
CABINET EXTERIOR: Unit exterior and interior to be made from
stainless steel with removable stainless steel louvers. The re-
frigeration system is bottom mounted providing greater stability,
easier maneuverability and easy access to pans/trays, which start
at a convenient 23" from the floor. The unit is provided with a
full perimeter bumper ledge, to provide safety to the unit as well
as other equipment or building walls. The unit is provided on 6"
high (overall) poly (non-marring) casters, with front two casters
locking.
CABINET BASE INTERIOR: All Stainless Steel interior with remov-
able stainless steel air diffuser and pan slide assembly. The base
shall be foamed in place polyurethane insulation with a minimum
thickness of 2".
STORAGE CAPACITY: Pan Slide assembly provided has (14) sets
of angle slides to accept (14) 18x26" sheet pans.
DOORS: Stainless steel front with easy to grasp positive latching
door handle, which provides secured door closer during moves.
Interior of door is also stainless steel for easy clean-up and longer
life. Doors mounted on heavy duty 1/8 stainless steel plate hinges
with 270˚ stay open latch catch. The door is removable without
tools. A snap-in heavy duty magnetic gasket is provided. Door is
foamed in place polyurethane insulation.
REFRIGERATION SYSTEM: The system will utilize R-134A refrigerant
and be provided with a hot gas condensate evaporation system.
The system is readily accessed through a removable (without
tools) front louver. Removable side louvers are also provided for
greater access to the systems components. The evaporator coil
is mounted separated from the product food zone and houses
the forced air circulating fans. The cooled air is then pressurized
through the air diffusers located at the opening of the door mullions,
1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
forming a cross door air flow pattern or "Air Curtain". Proper temperature
is maintained while the door is closed with the use of strategically placed
internal air holes.
ELECTRICAL: The units will be provided with a 8' cord and 3-wire grounded
plug as standard, pre-wired for 115 volt, 60 hertz, single phase operation.
Export voltages are available and require hard wiring in the field to the
units main junction box.
Standard Features:
• Stainless Steel Exterior & Interior
• Stainless Steel Pan Slides
• Stainless Steel 270˚ Hinges
• Positive Locking Door Latch w/Stay Open Catch
• Full Perimeter Bumper
• Flush Recessed Side Pulls & Heavy Duty Transport Handle
• 6" (Overall) Swivel Casters (two with locks)
• Automatic Condensate Evaporator
• Exterior Mounted Thermometer
Options & Accessories:
Door Locks
Export voltages available
model 2127AC
Randell Upright, Page 15
Revised 09/04
