Summary of Contents for Synology DVA1622
- Page 1 Synology Network Video Recorder DVA1622 Hardware Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Before You Start Package Contents Synology DVA1622 at a Glance System Modes and LED Indicators Other LED Indicators Hardware Specification Spare Parts Optional Accessories Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Component Installation... -
Page 3: Package Contents
Chapter Before You Start Thank you for purchasing this Synology product! Before setting up your new Network Video Recorder, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Network Video Recorder. -
Page 4: Synology Dva1622 At A Glance

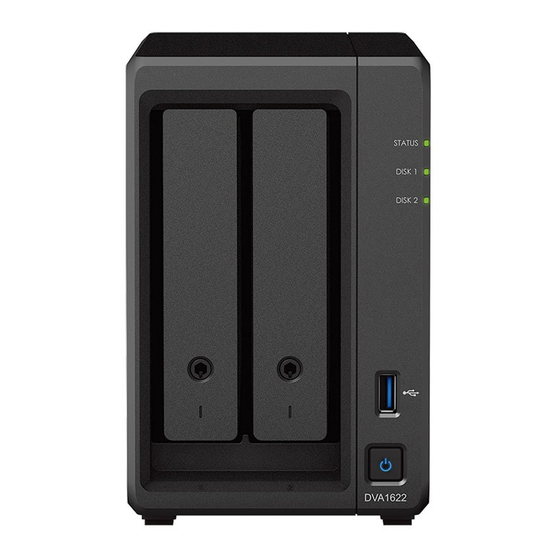

Synology DVA1622 at a Glance Article Name Location Description Drive Tray Install drives (hard disk drives or solid state drives) here. Drive Tray Lock Lock or unlock drive trays. Displays the status of the system. For more information, see STATUS Indicator "System Modes and LED Indicators". -
Page 5: System Modes And Led Indicators
System Modes and LED Indicators System Modes and Definitions There are 7 system modes in Network Video Recorder. The system modes and their definitions are as below: System mode Definition Network Video Recorder is powering on when you press the power button or Powering on restarting when you run operations in DSM. - Page 6 Transitions between System Modes To better understand the transition between system modes, please refer to below examples: • Powered on with no DSM installed: Powered off > Powering on > DSM not ready • Powered on with DSM installed: Powered off > Powering on > DSM not ready > DSM is ready for use •...
-
Page 7: Other Led Indicators
If you can sign in to DSM, please run the built-in S.M.A.R.T. test to scan the drives. If the problem remains unresolved, please contact Synology Technical Support for help. 7 Chapter 1: Before You Start... -
Page 8: Hardware Specification
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT • Basic • JBOD • RAID 0 • RAID 1 Supported RAID Type • Synology Hybrid RAID (1-Disk Fault Tolerence) • FCC Class B • CE Class B • UKCA • BSMI Class B Agency Certification •... -
Page 9: Spare Parts
FAN 92*92*25_1 System Fan 92*92*25 mm Adapter 60W_1 Adapter 60W Level VI Optional Accessories With Synology accessories, you can customize your Network Video Recorder to fit different business environments without worrying about compatibility and stability. Visit www.synology.com/compatibility for more information. -
Page 10: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Ensure a stable environment with no abrupt changes in temperature or humidity. Place the unit right side up at all times. Keep the unit away from liquids. Before cleaning, unplug the power cord. Do not use chemical or aerosol cleaners. Wipe with damp paper towels. -
Page 11: Chapter 2: Hardware Setup
Tools and Parts for Component Installation Please prepare below tools and parts before setting up your Network Video Recorder: • A screwdriver (only for 2.5" drives) • At least one 3.5" or 2.5" SATA drive (please visit www.synology.com/compatibility for compatible drive models) Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. -
Page 12: Start Up Your Network Video Recorder
3 Insert the loaded drive tray into the empty drive bay and push it back until you hear a click when the tray is locked into place. Insert the drive tray key into the drive tray lock, turn the key clockwise (to the "I" position) to lock the drive tray handle, and then remove the key. - Page 13 3 Press the power button to turn on your Network Video Recorder. Congratulations! Your Network Video Recorder is now online and detectable from a network computer. 13 Chapter 2: Hardware Setup...
-
Page 14: Chapter 3: Install Dsm On Network Video Recorder
Web Assistant that helps you download the latest version of DSM from the Internet and install it on your DVA1622. To use Web Assistant, please follow the steps below. 1 Power on your DVA1622. 2 Open a web browser on a computer connected to the same network as your DVA1622. -
Page 15: Learn More
5 Press "Enter" to start the installation process. Your DVA1622 will automatically detect and install the newest version of DSM and Surveillance Station package. 6 Once the installation has completed, you can create an administrator account. 7 You can now start using Surveillance Station. - Page 16 Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA.
- Page 17 Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis.
- Page 18 Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.2, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period.
- Page 19 Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer).
- Page 20 Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A.
- Page 21 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.
- Page 22 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 この装置は、クラス B 機器です。この装置は、住宅環境で使用することを 目的 としていますが、この装置がラジオやテレビジョン受信機に近接して使 用され ると、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱いをして下さい。 VCCI 一 B...
