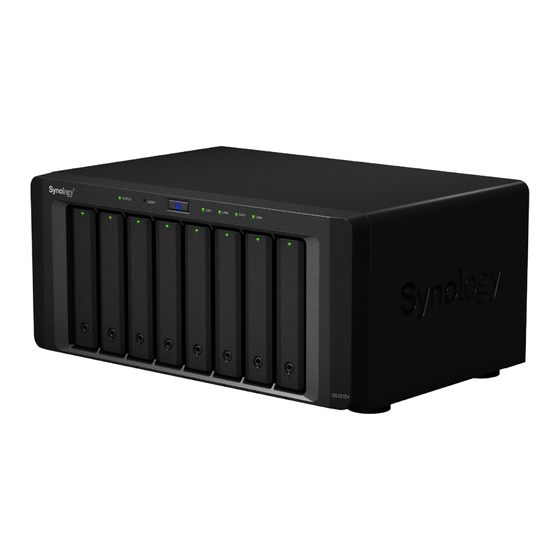

- Page 1 Synology DiskStation DS1815+ Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Before You Start Package Contents Synology DiskStation at a Glance Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Drive Installation Install Drives Start Up Your DiskStation Add a RAM Module on DiskStation Replace System Fan... -
Page 3: Package Contents
Chapter Before You Start Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your DiskStation. -
Page 4: Synology Diskstation At A Glance
DiskStation to “Not Installed” status so that DiskStation Manager (DSM) can be reinstalled. LAN Port Connect network cables here. For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com. 4 Chapter 1: Before You Start... -
Page 5: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. -
Page 6: Chapter 2: Hardware Setup
Chapter Hardware Setup Tools and Parts for Drive Installation • A screwdriver (only for 2.5" drives) www.synology.com • At least one 3.5” or 2.5” SATA drive (please visit for compatible drive models.) Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please back up any important data before installation. - Page 7 3 Load drives in the drive trays. • For 3.5” drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive tray. Then insert the fastening panels to secure the drive in place. •...
- Page 8 4 Insert the loaded hard drive tray into the empty hard drive bay. Note: Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly. 5 Press the handle in flush with the front panel to hold the hard drive tray in place. 6 Insert the hard drive tray key into the hard drive tray lock, turn the key clockwise (to the "I"...
-
Page 9: Start Up Your Diskstation
Start Up Your DiskStation 1 Use the LAN cable to connect the DiskStation to your switch, router or hub. 2 Connect the AC adapter to the power port of the DiskStation. Connect one end of the AC power cord to the AC power adapter, and the other to the power outlet. -
Page 10: Add A Ram Module On Diskstation
Add a RAM Module on DiskStation The optional Synology DDR3 RAM module is designed for DiskStation memory expansion. Follow the steps below to install, check, or remove a RAM module on your DiskStation. To install the RAM module: 1 Shut down your DiskStation. Disconnect all cables connected to your DiskStation to prevent any possible damages. - Page 11 To make sure DiskStation recognizes the new memory capacity: 1 Install DiskStation Manager (DSM). (See the next chapter for more information.) 2 Log in to DSM as admin or a user belonging to the administrators group. 3 Check Total Physical Memory Control Panel >...
-
Page 12: Replace System Fan
Replace System Fan Your DiskStation will play beep sounds if either of the system fans is not working. Follow the steps below to replace the malfunctioning fan with a good one. To replace the system fan: 1 Shut down your DiskStation. Disconnect all cables connected to your DiskStation to prevent any possible damages. - Page 13 4 Remove the malfunctioning fan: a Pull the fan panel from your DiskStation. b Disconnect the 2 fan cables from the connectors located near the bottom of the fan socket, and then remove the fan panel. c Remove the 4 screws that secure the malfunctioning fan, and then remove the fan. 13 Chapter 2: Hardware Setup...
- Page 14 5 Install the new fan: a Replace the malfunctioning fan with a good one (with the fan cable within the fan pointing at the bottom-right corner), and then tighten the 4 screws to secure the new fan. b Connect the 2 fan cables to the connectors located near the bottom of the fan socket, and then replace the fan panel.
-
Page 15: Chapter 3: Install Dsm On Diskstation
Chapter Install DSM on DiskStation After hardware setup is finished, please install DiskStation Manager (DSM) – Synology’s browser-based operating system – on your DiskStation. Install DSM with Web Assistant Your DiskStation comes with a built-in tool called Web Assistant that helps you download the latest version of DSM from the Internet and install it on your DiskStation. - Page 16 • Basic • JBOD • RAID 0 • RAID 1 Supported RAID Types • RAID 5 • RAID 6 • RAID 10 • Synology Hybrid RAID (Up to 2-Disk Fault Tolerance) Agency Certifications • FCC Class B • CE Class B • BSMI Class B...
- Page 17 No network Static Drive ready and idle Green Blinking Accessing drive Drive Status Indicator (on tray) Orange Static Drive error No internal drive Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information.
- Page 18 IMPORTANT–READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("EULA") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY) AND SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICAN CORP AND SYNOLOGY UK LTD., (COLLECTIVELY, "SYNOLOGY") FOR ANY SYNOLOGY SOFTWARE, TOGETHER WITH ANY OTHER ASSOCIATED FIRMWARE, MEDIA, PRINTED MATERIALS AND "ONLINE"...
- Page 19 Section 16. Termination. Without prejudice to any other threatened breach of any provision of this EULA relating to rights, Synology may terminate this EULA if you do not abide Synology's intellectual property rights. by the terms and conditions contained herein. In such event, you must cease use of the Software and destroy all copies of Section 20.
- Page 20 SYNOLOGY, INC. LIMITED PRODUCT WARRANTY THIS LIMITED WARRANTY ("WARRANTY") APPLIES TO THE PRODUCTS (AS DEFINED BELOW) OF SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICA CORP, (COLLECTIVELY, "SYNOLOGY"). YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS WARRANTY BY OPENING THE PACKAGE CONTAINING AND/OR USING THE PRODUCT.
- Page 21 DAMAGES. the Product specifications; (b) has been repaired, modified Limitation of Liability. or altered by anyone other than Synology or its agent or SYNOLOGY'S AND ITS SUPPLIERS' LIABILITY ARISING OUT OF OR RELATING designee; (c) has been in any way misused, abused, or damaged;...
- Page 22 Nothing in this Section shall be deemed to prohibit or restrict arbitration and will not be conducted on a class-wide or class Synology from seeking injunctive relief or seeking such other action basis. The arbitration shall be held in King County, rights and remedies as it may have at law or equity for any Washington, U.S.A.
