Synology DS107+ Installation Manual

Hide thumbs Also See for DS107+:
Table of Contents

Advertisement

Quick Links

See also: User Manual

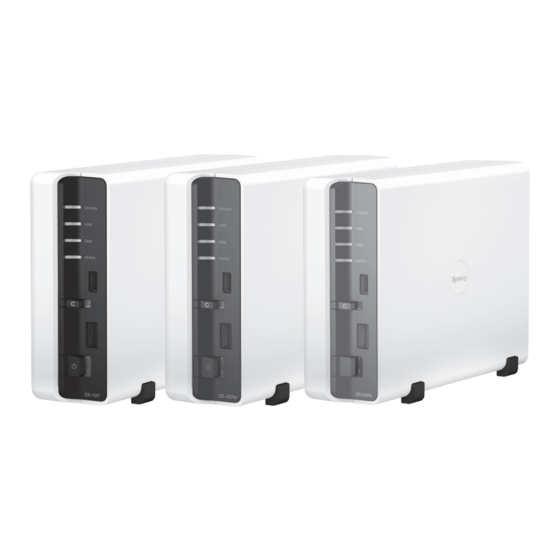

Synology Disk Station Series
DS107+
Installation Guide
Guía de instalación
DS107
DS107e
Connecting Your Digital Content

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS107+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Synology DS107+

Summary of Contents for Synology DS107+

  • Page 1 Synology Disk Station Series DS107+ DS107 DS107e Installation Guide Guía de instalación Connecting Your Digital Content...

  • Page 2: Copyright Notice

    SYNOLOGY INC. PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. OBTAINING WARRANTY SERVICE If the product is not functionion properly after making use of resources provided by Synology Inc., access the online web site: www synology.com/support Copyright Notice Copyright ©...
  • Page 3 P.15...

  • Page 4: Safety Warning

    Do not put Synology The power cord must There are slots on the button of Synology product product on a cart, plug in to the right for ventilation. To make sure Synology product table, or desk, which is supply voltage.

  • Page 5: Package Contents

    PACKAGE CONTENTS Before you begin, please check the package contents to verify that you have received the items below. DS107+/DS107/DS107e X 1 Installation CD AC power adapter M RJ-45 LAN cable AC power cord Installation Guide Assembling Kit Screws for fixing SATA cable X 1 HDD cable X 1 Aluminum foil sticker...

  • Page 6: Install Hard Drive

    INSTALL HARD DRIVE DS107+/DS107/DS107e requires one .5” SATA hard drive for installation. Refer to the following steps for details: Warning! If you use a hard disk with data on it to install, system will format the hard disk and erase all data in some cases. Please back up the data if you need it in the future.
  • Page 7 INSTALL HARD DRIVE Pull up the upper case. Place the hard drive on the HDD bay. Fix the hard drive with 4 screws provided.
  • Page 8 INSTALL HARD DRIVE Connect the SATA cable and HDD cable to the motherboard. Place the upper case and slide it back. Fix the case with other  screws provided.
  • Page 9 TURN ON SERVER Connect the AC power adapter to the server and plug in the AC power cord to the power outlet. Use the LAN cable to connect the server to your switch/router/hub. Press the power button on the front panel to power up the server. Wait for constant blue POWER LED.
  • Page 10 Windows User Insert the installation CD to your computer. Choose Set up the Synology Server on the autorun menu. Click Browse to select the “.pat” installation file in the installation CD. Follow the on-screen instructions to complete the setup process.
  • Page 11 INSTALL SYSTEM SOFTWARE Double click MacOSX. Double click Synology Assistant-SYNOLOGY.dmg. Double click on the automatically generated thumbnail Synology Assistant-SYNOLOGY. dmg on the desktop. Double click Synology Assistant to run the Setup Wizard.
  • Page 12 Note: If you choose One-Click Setup, the admin password will be blank. CONGRATULATIONS! Server has been set up. Refer to the User’s Guide in the installation CD for advanced settings and management. For more information or online resources, please visit http://www.synology.com.

  • Page 15: Advertencia De Seguridad

    No utilice productos químicos ni aerosoles para limpiarlo. No coloque el producto El cable de alimentación La parte inferior del producto Synology contiene Synology en un carro, debe enchufarse en ranuras de ventilación. Para asegurarse de que mesa o escritorio que una fuente de tensión...

  • Page 16: Contenido Del Embalaje

    CONTENIDO DEL EMBALAJE Antes de comenzar, compruebe el siguiente contenido del paquete para asegurarse de que ha recibido los elementos que se indican a continuación. DS107+/DS107/DS107e X 1 CD de instalación Adaptador de la alimentación de CA Cable RJ-45 LAN de  m Cable de Guía de instalación alimentación de CA...

  • Page 17: Instalación Del Disco Duro

    INSTALACIÓN DEL DISCO DURO La unidad DS107+/DS107/DS107e precisa un disco duro SATA de ,5” para su instalación (visite http://www.synology.com para ver los discos duros que se recomiendan). Siga estos pasos para completar la instalación. Advertencia: Si utiliza un disco duro con datos para realizar la instalación, el sistema lo formateará...
  • Page 18 INSTALACIÓN DEL DISCO DURO Empuje hacia arriba de la carcasa superior. Coloque el disco duro en su receptáculo. Fije el disco duro con 4 de los tornillos que se incluyen.
  • Page 19 INSTALACIÓN DEL DISCO DURO Conecte el cable SATA y el cable del disco duro a la placa principal. Coloque la carcasa superior y deslícela hacia atrás. Fije la carcasa con los otros  tornillos que se incluyen.
  • Page 20 ENCIENDA EL SERVIDOR Conecte el adaptador de alimentación de CA al servidor y conecte el cable de alimentación de CA a la toma de alimentación. Utilice el cable LAN para conectar el servidor a su conmutador/enrutador/ concentrador. Pulse el botón de encendido del panel frontal para encender el servidor. Espere a que el LED POWER esté...
  • Page 21 INSTALACIÓN DEL SOFTWARE DEL SISTEMA Usuarios de Windows Inserte el CD de instalación en el equipo. En el menú de ejecución automática, elija “Instalar el servidor Synology”. Haga clic en Examinar para especificar el archivo de instalación “.pat” en el CD de instalación.
  • Page 22 Haga doble clic en la miniatura “MacOSX”. Haga doble clic en la miniatura ”Synology Assistant-SYNOLOGY.dmg”. Haga doble clic en la miniatura “Synology Assistant-SYNOLOGY” generada automáticamente en el escritorio. Haga doble clic en la miniatura “Synology Assistant” para ejecutar el asistente de instalación.
  • Page 23 Observación: Si elije Configuración con un clic, la contraseña del administrador estará vacía. ENHORABUENA Servidor se ha instalado. Consulte el manual del usuario en el CD de instalación para ver las opciones avanzadas de configuración y administración. Si desea obtener más información o recursos en línea, visite http://www.synology.com.
  • Page 24 GPL Notice This Synology product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. This does not affect the warranty for the product itself.
  • Page 25 GPL Notice 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program”...
  • Page 26 GPL Notice The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable.
  • Page 27 GPL Notice 11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
  • Page 28 15-06014000...
