WIRELESS PROFESSIONAL COLOR WEATHER
STATION & PHOTO ALBUM WITH 7" TFT SCREEN
Model 308-807
Quick Setup Guide
This product offers:
INSTANT TRANSMISSION is the state-
of-the-art new wireless transmission
technology, exclusively designed and
developed by La Crosse Technology®.
INSTANT TRANSMISSION offers you an
immediate update of all the outdoor data
measured from the transmitters: follow the
climatic variations in real-time!

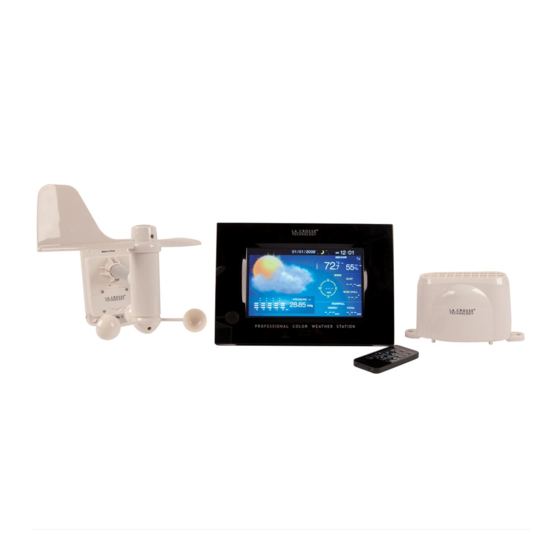

INVENTORY OF CONTENTS
1.
Wireless Display
2.
IR Remote Control (98-W2329-000)
3.
A/C adapter cord 5-Volt.
4.
Wireless Wind/Thermohygro transmitter (W132-Q)
5.
Wireless Rain Gauge (W174-Q)
1
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse 308-807
Summary of Contents for La Crosse 308-807
- Page 1 This product offers: INSTANT TRANSMISSION is the state- of-the-art new wireless transmission technology, exclusively designed and developed by La Crosse Technology®. INSTANT TRANSMISSION offers you an immediate update of all the outdoor data measured from the transmitters: follow the climatic variations in real-time!
-
Page 2: Ir Remote Control
FEATURES: Time display in 12/24 hour time format Manual set time and date. Time alarm. Calendar display (date, month, year) Moon phase with 8 displays. 5 weather icons (sunny, partly cloudy. cloudy, rainy & stormy). Temperature display in °F/°C: from -4 °F to +140 °F Humidity display in RH%: from 20% to 99% Relative air pressure reading in inHg/hPa: 6-hour pressure history graph... -
Page 3: Display Modes
then exit. The wireless display will search for all remote sensors. If remote sensors are not displayed after 2 minutes, move the remote sensors closer and search again. x With display working and reading sensors use the button on the remote control to view weather and/or photos. - Page 4 Screen two: Contrast: Select the contrast of the display from level 1 to 16 Saturation: Select the saturation of the display from level 1 to 16 Radio-Controlled Reception: (This function is not available for this unit. Please keep this setting to “Off”) Time Zone: (This function is not available for this unit.
- Page 5 Conversion Chart Photo Mode: SD or MMC card memory stick A/C power cord Supports photos in JPEG format. Will read USB flash drive, SD (secure digital) memory card, or MMC (multi media card) memory card. Insert your memory device (USB memory stick, SD or MMC card) the connector on the side of the wireless display when the unit is off.
- Page 6 Weather Mode Weather forecast – sunny, partly cloudy, cloudy, rainy & stormy Pressure bar chart – shows pressure level & trend of the past 6 hours Barometric pressure - pressure reading (refer SETUP mode for pressure unit setting) Pressure trend – rising, steady or falling Daily, weekly or monthly rainfall in inch or mm Total Rainfall in inch or mm Wind chill in degree F or C...
- Page 7 Weather & Photo Mode Clock – displays in 24 or 12 hour format (refer “Time format” in SETUP mode for setting) Alarm icon – appears when alarm is enabled Weather forecast – includes sunny, partly cloudy, cloudy, rainy & stormy Daily, weekly &...
-
Page 8: To Wall Mount
Positioning the Wireless display The Weather station provides the option of table standing or wall mounting the unit, vertically or horizontally. Before wall mounting, please check that the outdoor data can be received from the desired locations. TO WALL MOUNT: Fix a screw (not supplied) into the desired wall, leaving the head extended out by about 0.2”... - Page 9 Positioning the Rain Gauge: Before mounting the rain gauge, be sure the rain gauge & monitor are within effective transmission range and batteries are installed. The rain sensor should be mounted on a level surface in an open area within the 131-foot wireless range (open air) of the wireless display.
-
Page 10: Specifications
SPECIFICATIONS: Wireless Display Memory: Supports USB flash drive (up to 32GB), SD & MMC cards (up to 32GB). Photo format: Supports Jpeg format Outdoor data reception Wind/Temperature/Humidity data around 23 seconds Rain data around 23 seconds Indoor temperature Range: +32 F to +122 F 0 C to + 50 C (Shows LL when below 0C or 32F;... -
Page 11: Warranty
Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. -
Page 12: Fcc Disclaimer
La Crosse Technology, Ltd 2809 Losey Blvd S La Crosse, WI 54601 The complete instruction manual is available at: www.lacrossetechnology.com/308-807 Product Registration: www.lacrossetechnology.com/support/register Contact Support: 1-608-782-1610 All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher.
