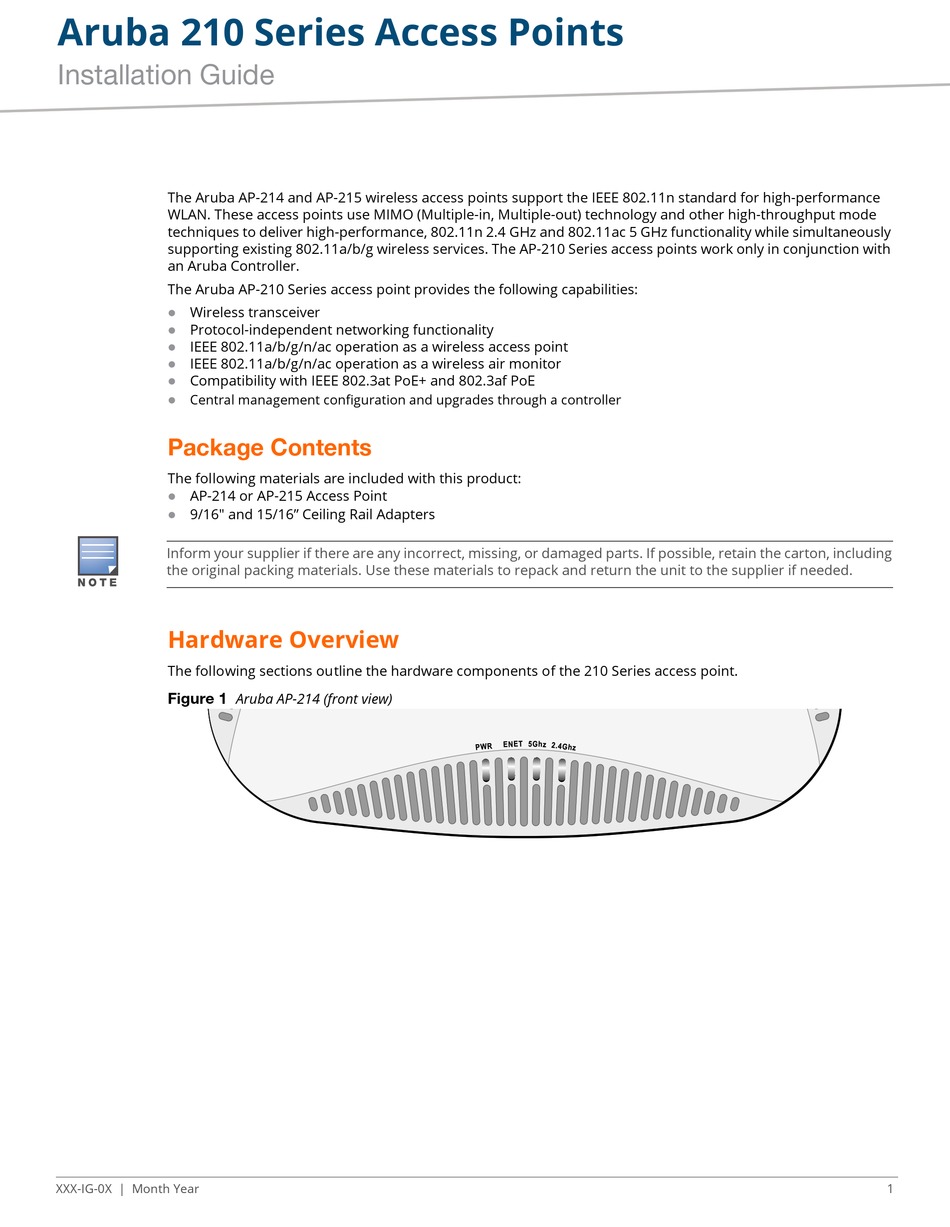

Aruba 210 Series Access Points
Installation Guide
The Aruba AP-214 and AP-215 wireless access points support the IEEE 802.11n standard for high-performance
WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology and other high-throughput mode
techniques to deliver high-performance, 802.11n 2.4 GHz and 802.11ac 5 GHz functionality while simultaneously
supporting existing 802.11a/b/g wireless services. The AP-210 Series access points work only in conjunction with
an Aruba Controller.
The Aruba AP-210 Series access point provides the following capabilities:
Wireless transceiver

Protocol-independent networking functionality

IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

Compatibility with IEEE 802.3at PoE+ and 802.3af PoE

Central management configuration and upgrades through a controller

Package Contents
The following materials are included with this product:
AP-214 or AP-215 Access Point

9/16" and 15/16" Ceiling Rail Adapters

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including
the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Hardware Overview
The following sections outline the hardware components of the 210 Series access point.
Figure 1
XXX-IG-0X | Month Year
Aruba AP-214 (front view)
1
