Assa Abloy ML55 PA Instruction Manual

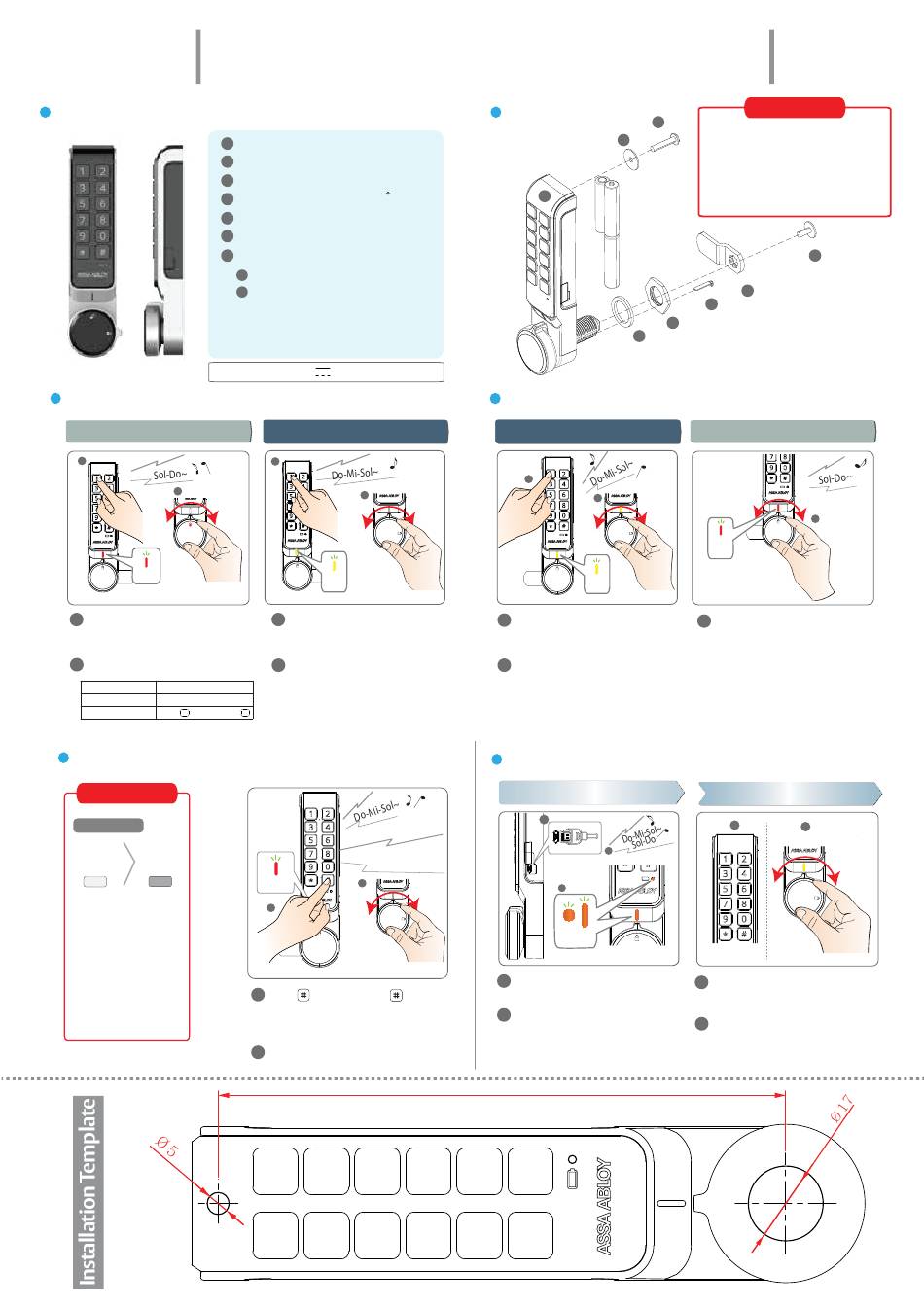

Instruction Manual (ML55 PA)
Package contained
1
2
3
4
5
6
7
※
How to use the User Code (Public mode)
Lock the door
a
b
Blinking
3 times
(ex : 1 2 3 4)
a
Close the door and press the User Code
- Blinking Red LED 3 times and melody sound
"Sol-Do~"
b
Turn the handle to the lock position
Number of Passcode How to register
4 Digit Press 4-digit passcode
Press + * 5 to 12 Digit +
5 to 12 Digit
How to use the Master Code
Important Note
Two code levels
Master User
Code Code
Step 1 Step 2
˜ Factory set Master Code
" 3 5 2 6 "
User code will be deleted
after use of the Master code.
Need to set the User code again
at private mode.
ML55PA lock x 1
Rubber ring washer x 1
M6 nut x 1
Cam governor(limits cam to 90 )x 1 Cams
x 2 ( 1 flat, 1 offset)
M4 washer x 2
Bolts x 5
6 x
M 8 cam fixing
7-1
M4 x10 upper fixing for 1-5mm door
7-2
M4 x 20 upper fixing for 10-15mm door
M4 x 25 upper fixing for 15-20mm door
M4 x 30 upper fixing for 20-25mm door
Power : 4.5V (AAA 1.5V x 3)
Unlock the door
a
b
Blinking
3 times
(ex : 1 2 3 4)
a
Press the User Code
-Blinking yellow LED 3 times and melody sound
"Do-Mi-Sol~"
b
Turn the handle to the open position
and open the door
※ Public Mode (One Time use)
- User pass-code will be erased
#
after unlock and stay open for next user.
Beep-Beep-Beep-Beep-Beep-
Blinking
b
5 times
a
(ex : # 3 5 2 6 #)
a
Press + "Master Code" +
- Melody sound "Do-Mi-Sol~
- Unlock the lock with Beep sound 5 times
and blinking Red LED 5 times
b
Turn the handle to the open position
and open the door
Installation
7-2
6
1
2
How to use the User C ode (Private mode)
Unlock the door
문을 열때
a
b
Blinking
3 times
(ex : 1 2 3 4)
a
Press the User Code
-Blinking yellow LED 3 times and melody sound
"Do-Mi-Sol~"
b
Turn the handle to the open position
and open the door
External Power for Emergency
Step 1
a
b
b
Blinking
5 times
a
Connect standard 5 pin Micro USB cable
to the USB Port on the right side of the lock
b
When power is applied, Both LED blinks
5 times with melody sound
"Do-Mi-Sol~Sol-Do"
129
Caution
- The battery should only be used with the
specific type of batteries recommended by
the manufacturer. It may cause damage or
malfunction on the product if incorrect
batteries are used.
-Dispose of used batteries according to the
instruction.
7-1
5
4
3
Lock the door
문을 잠글 때
a
Blinking
3 times
a
Close the door and turn the handle
to the lock position
※ Private Mode (Assigned use)
- The lock automatically locked in 3 seconds,
just turn the handle to the lock position.
Step 2
c
d
c
Press User Code or Master Code to unlock the lock
User code will be deleted after use of the Master code.
Need to set the User code again at private mode.
d
Open the door and change the batteries
