Ripley MILLER DLS 650 User Manual

Dual led source
Hide thumbs

Advertisement

Table of Contents

DLS 650
Dual LED Source
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILLER DLS 650 and is the answer not in the manual?

Questions and answers

Related Manuals for Ripley MILLER DLS 650

Summary of Contents for Ripley MILLER DLS 650

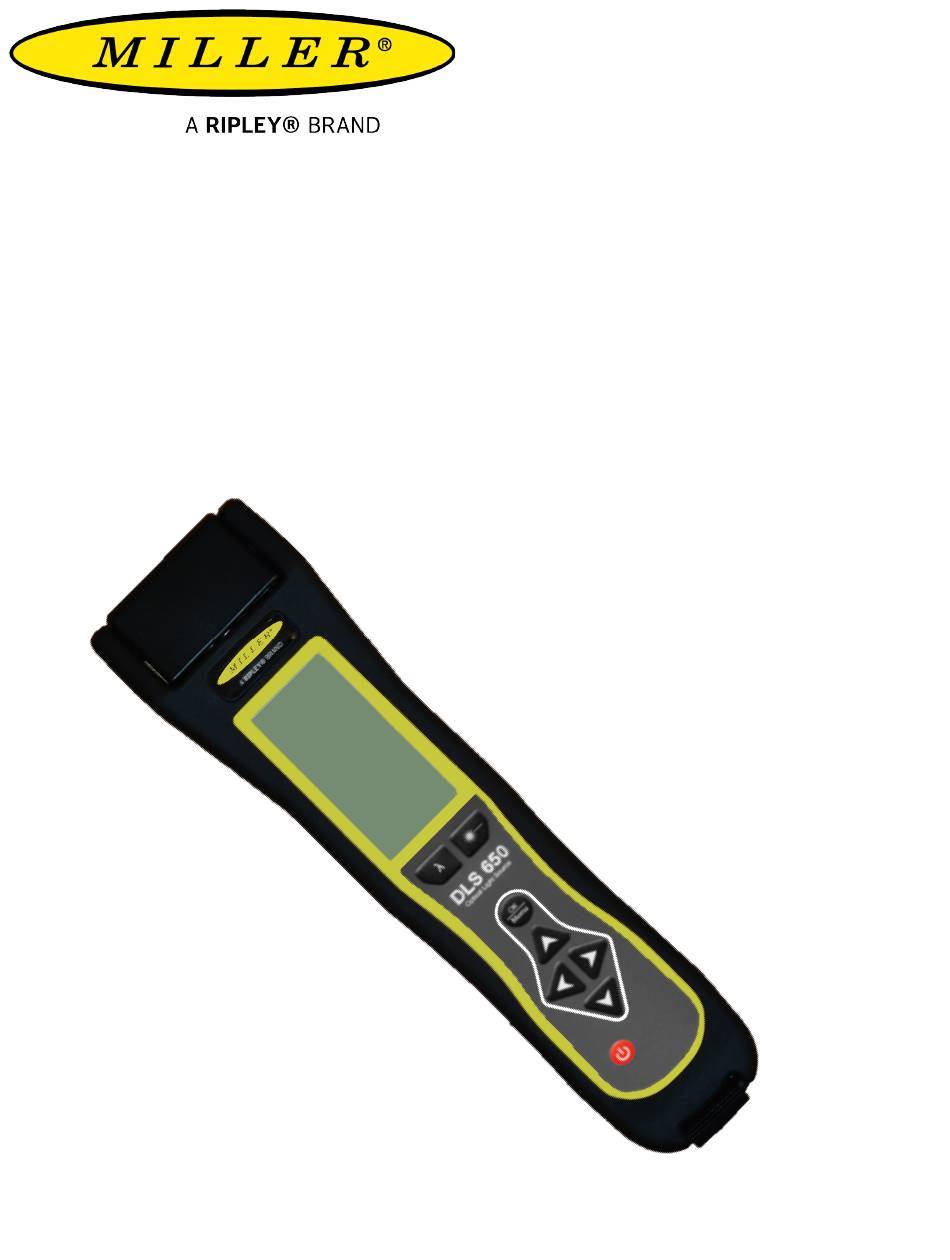

  • Page 1 DLS 650 Dual LED Source User Guide...

  • Page 2: Table Of Contents

    Contents Introduction Device Overview Important Safety Information Understanding the Main screen Transmission Mode Settings Certifications and Contact Information DLS650 User Guide Page 2...

  • Page 3: Introduction

    Introduction The DLS 650 is an optical LED source used for verifying the proper function of fiber optic networks. This document will serve as an overview of the major functions and features of the device. Device Overview Protective Adapter Cover Cover flips closed to protect fiber interface when storing DLS 650.

  • Page 4: Important Safety Information

    Important Safety Information Read and understand all of the instructions and safety information in this manual before operating this tool. Laser Hazard Avoid eye exposure to open fiber connectors and interfaces when working with fiber systems. They may be connected to a live laser source.

  • Page 5: Understanding The Main Screen

    Understanding the Main screen LED Indicator When the LED is ON, the LED Battery Indicator symbol will be displayed in this The battery indicator displays segment of the screen. the current battery level. When a single square segment remains, the batteries have less than 25% power and should be replaced.

  • Page 6: Transmission Mode

    2kHz, 1kHz, and 270Hz are all modulated signals that may be needed for continuity testing on fiber. Any Ripley power meter will identify a 2kHz tone, but the 1kHz and 270Hz options are only compatible with the RP 560-series.

  • Page 7: Settings

    Settings Press the OK/Menu button to access the Main Menu Main Menu Mode Backlight Use the Up/Down arrow buttons to move the cursor to the option you would like to explore. Press the Left arrow button to go back to the Main screen. Press the OK/Menu button or the Right arrow button to select an option.
  • Page 8 Specifications DUAL MULTIMODE LED SOURCE Wavelength 850nm & 1300nm (single or dual modes) Output Power -22.00 dBm ±0.05dB (1 Hour) Output Stability ±0.03dB Long-Term (15 min warm-up) Spectral Width 40nm / 120nm Optical Interface SC/FC/ST/LC Interchangeable Tone Output 2 kHz, 1kHz, 270Hz LED Class Class 1 (IEC 62471:2006) Power...

  • Page 9: Certifications And Contact Information

    • Consult the dealer or an experienced radio/TV technician for help. Contact Support ontact us with any questions pertaining to this or any other Ripley product. Call Us: Email Us: (603) 524-8350 tech.support@odm.ripley-tools.com Visit Us Online: www.ripley-tools.com...
