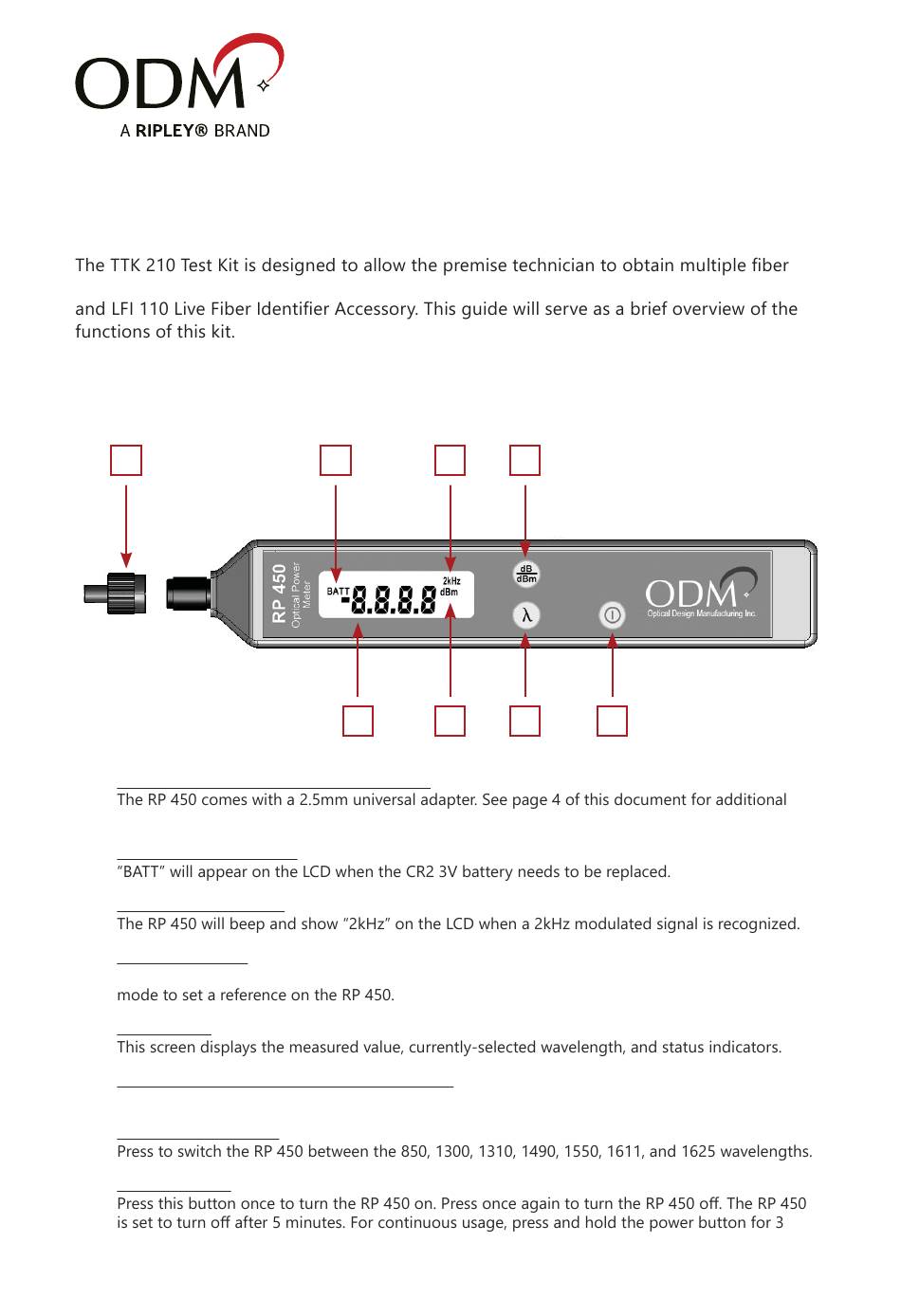

TTK 210 Live Fiber ID Test Kit
User Manual and Troubleshooting Guide
test measurements in one kit. Included in the kit are the RP 450-02 Optical Power Meter
RP 450-02 Device Overview
1
1.
Connector Adapter - Interchangeable
adapter options.
2.
Low Battery Indicator
3.
2kHz Tone Indicator
4.
dB/dBm Button
Press this button to toggle between dB and dBm modes. Hold this button down when in dBm
5.
LCD Screen
6.
Measurement Mode Indicator - dB/dBm
dB is a loss measurement. dBm is an absolute power measurement.
7.
Wavelength Button
8.
Power Button
seconds when powering on.
2
3
5
6
4
7
8
M-UM006-01 Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ODM TTK 210 and is the answer not in the manual?

Questions and answers

Related Manuals for Ripley ODM TTK 210

Summary of Contents for Ripley ODM TTK 210

  • Page 1 TTK 210 Live Fiber ID Test Kit User Manual and Troubleshooting Guide test measurements in one kit. Included in the kit are the RP 450-02 Optical Power Meter RP 450-02 Device Overview Connector Adapter - Interchangeable adapter options. Low Battery Indicator 2kHz Tone Indicator dB/dBm Button Press this button to toggle between dB and dBm modes.
  • Page 2 LFI 110 Device Overview LFI 110 LFI 110 Attached to RP 450-02 1 - Check Core Power of Fiber with LFI diagram below) and then the trigger on the LFI should be depressed. This will introduce a detector on the RP 450 power meter. Please note that the RP 450 should be in dBm mode with the correct wavelength selected Feed Fiber Into LFI Channel: Depress Trigger...
  • Page 3 2 - Active Channel Indication The LFI 110/RP 450 combination provides active channel power when the RP 450 power 4 - Determining Signal Direction direction indicates a higher power measurement is the correct signal direction. measurement would be the correct signal direction. 5 - Adjustment Screw Flush Extended...
  • Page 4 Wavelength Range 850nm to 1625nm RP 450-02: +6 to -60dBm Measurement Range RP 450-04: +23 to -45dBm Resolution 0.01dB Absolute Accuracy +/- 0.25dB RP 450-02: Germanium Detector Type Optical Interface Power On Dimensions Weight Core Power Measurement Range +23 to -30dBm <1.5dB@1550nm +/- 2dB within measurement range Measurement Storage...
