- Page 1 DLS350 Dual LED Source User Guide DLS350 User Guide Page 1...
-
Page 2: Table Of Contents
Contents Introduction Device Overview Important Safety Information Basic Testing Using 2kHz Maintenance Certifications and Contact Information DLS350 User Guide Page 2... -
Page 3: Introduction

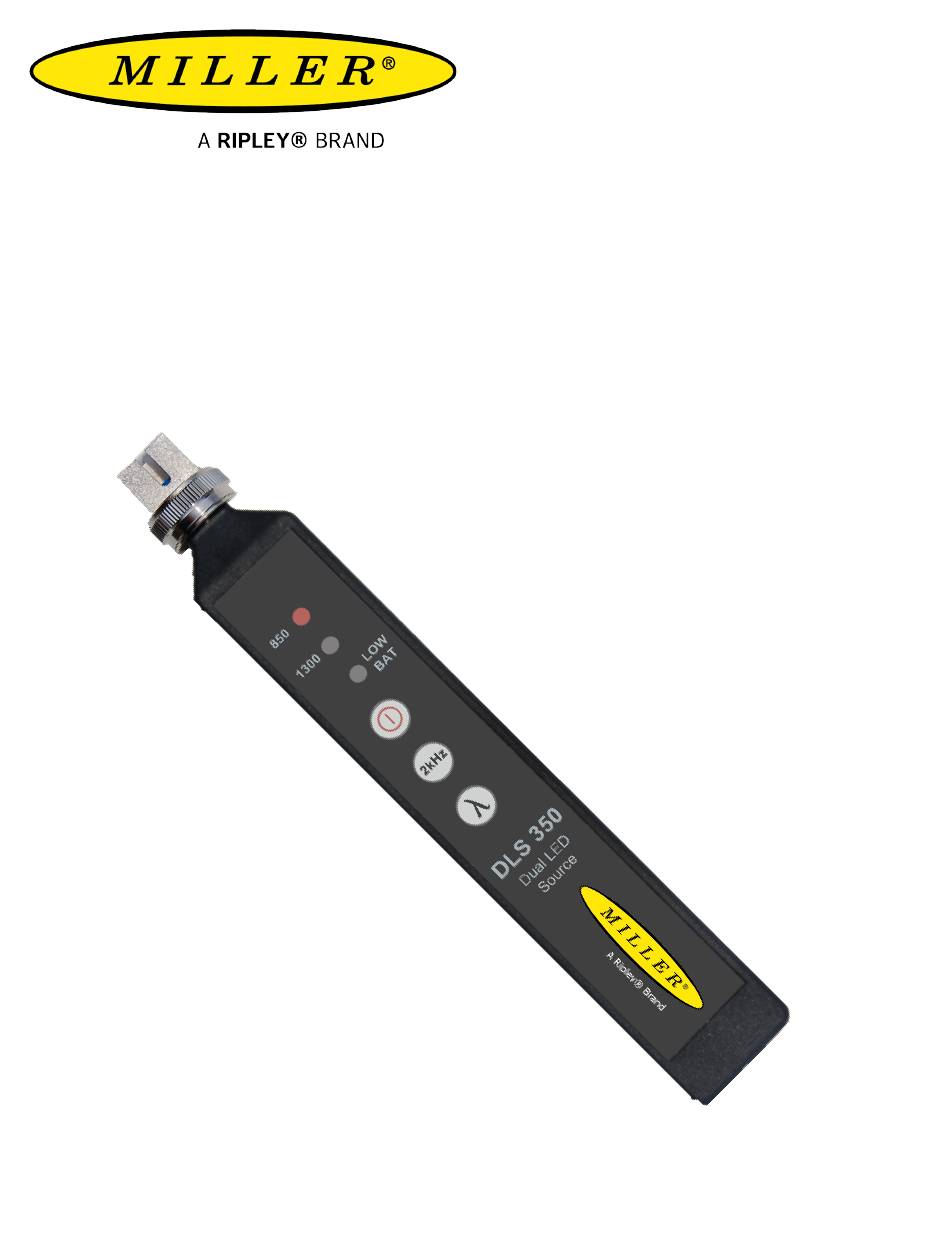

Introduction The DLS350 dual LED source is a low cost compact multimode test LED used for verifying the proper function of fiber optic networks. This document will serve as an overview of the major features and functions of the device and will offer tips for troubleshooting common issues in optical networks. -
Page 4: Important Safety Information
Important Safety Information Read and understand all of the instructions and safety information in this manual before operating this tool. Laser Hazard Avoid eye exposure to open fiber connectors and interfaces when working with fiber systems. They may be connected to a live laser source. -
Page 5: Basic Testing
Basic Testing Caution: Invisible LED Radiation Please note that 850nm and 1300nm wavelengths are not visible to the human eye. Do not look directly into the output port of the DLS350 or directly into any fiber connector that may be live. Since the LED is invisible to the eye, the eye’s natural blink reflex is suppressed. -
Page 6: Using 2Khz
Using 2kHz To output a 2kHz tone simply turn the device on, select your desired wavelength, then press the “2kHz” button. The wavelength indicator will begin blinking to confirm to the user that 2kHz tone is being output. Plugging in a power meter like the RP450 will display an onscreen notification and output a loud beep to alert the user at the other end that a tone has been detected. -
Page 7: Certifications And Contact Information
Certifications, and Contact Information Calibration Certificates The DLS350 comes calibrated and should be recalibrated every 2 years. Included with the DLS350 is a calibration certificate, and free recalibration within 2 years of the date of purchase. To start the calibration process simply call or email technical support! Warranty The DLS350 comes with a 2 year warranty for any manufacturer defects or damage due to reasonable use. - Page 8 • Consult the dealer or an experienced radio/TV technician for help. Contact Support ontact us with any questions pertaining to this or any other Ripley product. Call Us: Email Us: (603) 524-8350 tech.support@odm.ripley-tools.com Visit Us Online: www.ripley-tools.com...
