Quick-Start Guide
VIS 300C Test Platform
The VIS 300C is a fiber optic test platform which provides a unique and simple interface
for gathering and reporting test results. All VIS 300C units are capable of automated
fiber inspection, saving of images, and sharing saved results. For added functionality,
VIS 300C-PM-02-V and VIS 300C-PM-04-V units include an onboard optical power meter
(OPM) and visual fault locator (VFL/Red Laser). This guide will serve as an overview of the
features and functions of the device.

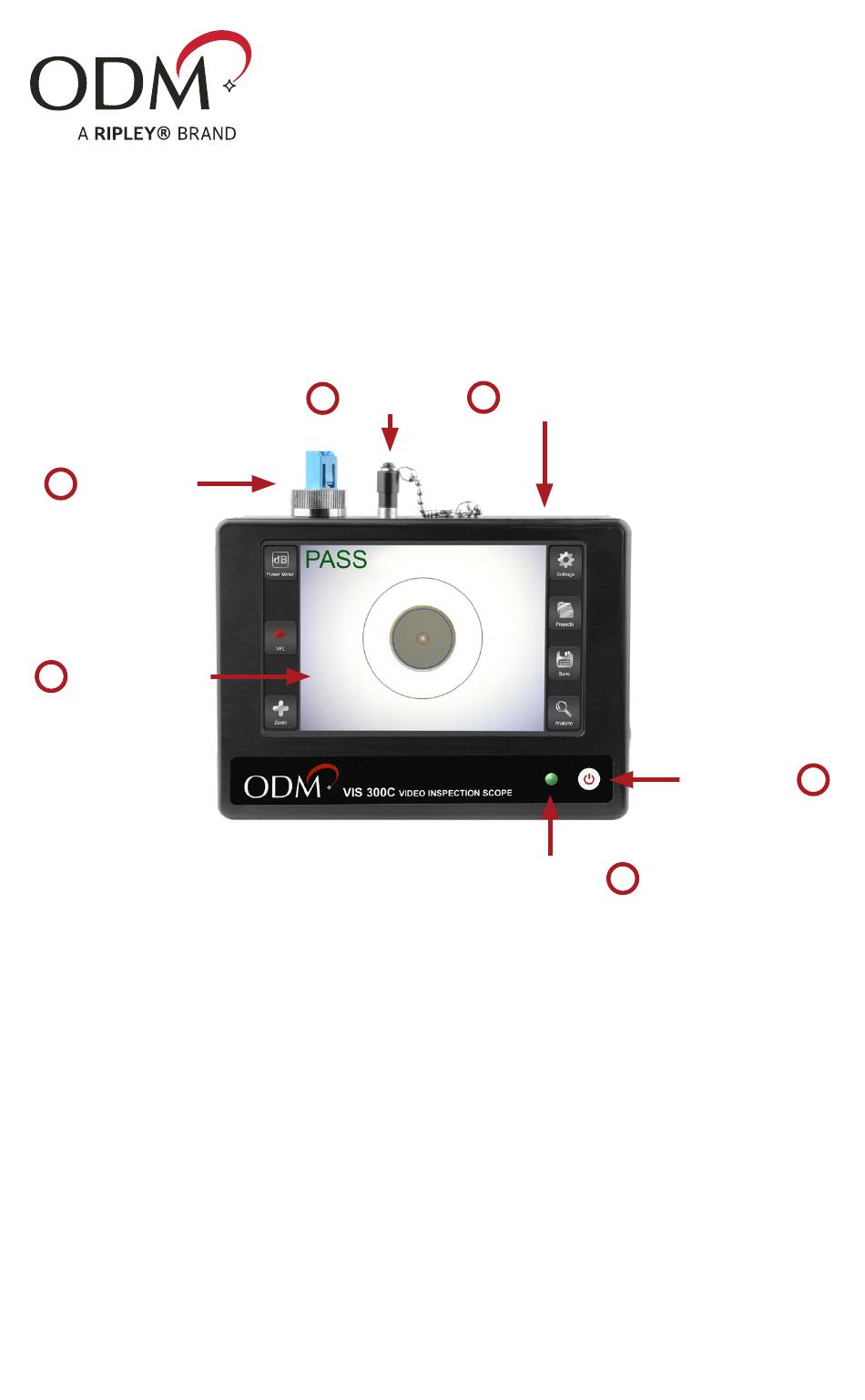

Micro USB
6
5
Vfl Port
Data Port
Optical Power
4
Meter Port
5" Touch Sensitive
3
Screen
1

Power Button

Battery
2
Indicator LED
1. Power Button
Power Unit ON
With the VIS 300C unit powered OFF, press the Power Button once to turn the unit ON. The VIS 300C
will emit a beep to indicate unit has powered ON. The Battery Indicator LED will light up.
Put Unit to Sleep
With the VIS 300C fully powered ON, press the Power Button briefly (less than 1 second) to put the
unit into "Sleep Mode". While in Sleep Mode, the Battery Indicator LED will remain lit, and the screen
will turn off. The unit cannot be powered OFF while in Sleep Mode.
Wake Unit from Sleep
With the VIS 300C in Sleep Mode, press the Power Button briefly (less than 1 second) to return the
unit to its full functionality. The screen will turn back on.
Power Unit OFF
With the VIS 300C powered ON, press and hold the Power Button for 3 seconds, then release the
Power Button to turn the unit off. The unit will show a "Shutting Down" indicator, then power down.
The Battery Indicator LED will turn off when the unit is fully shut down.
Hard Shutdown
With the VIS 300C powered ON, press and hold the Power Button for 6-10 seconds to initiate a "Hard
Shutdown". The unit will beep twice to indicate a Hard Shutdown has occurred. The Hard Shutdown
sequence should not be used during normal operation, as loss of data may occur.
