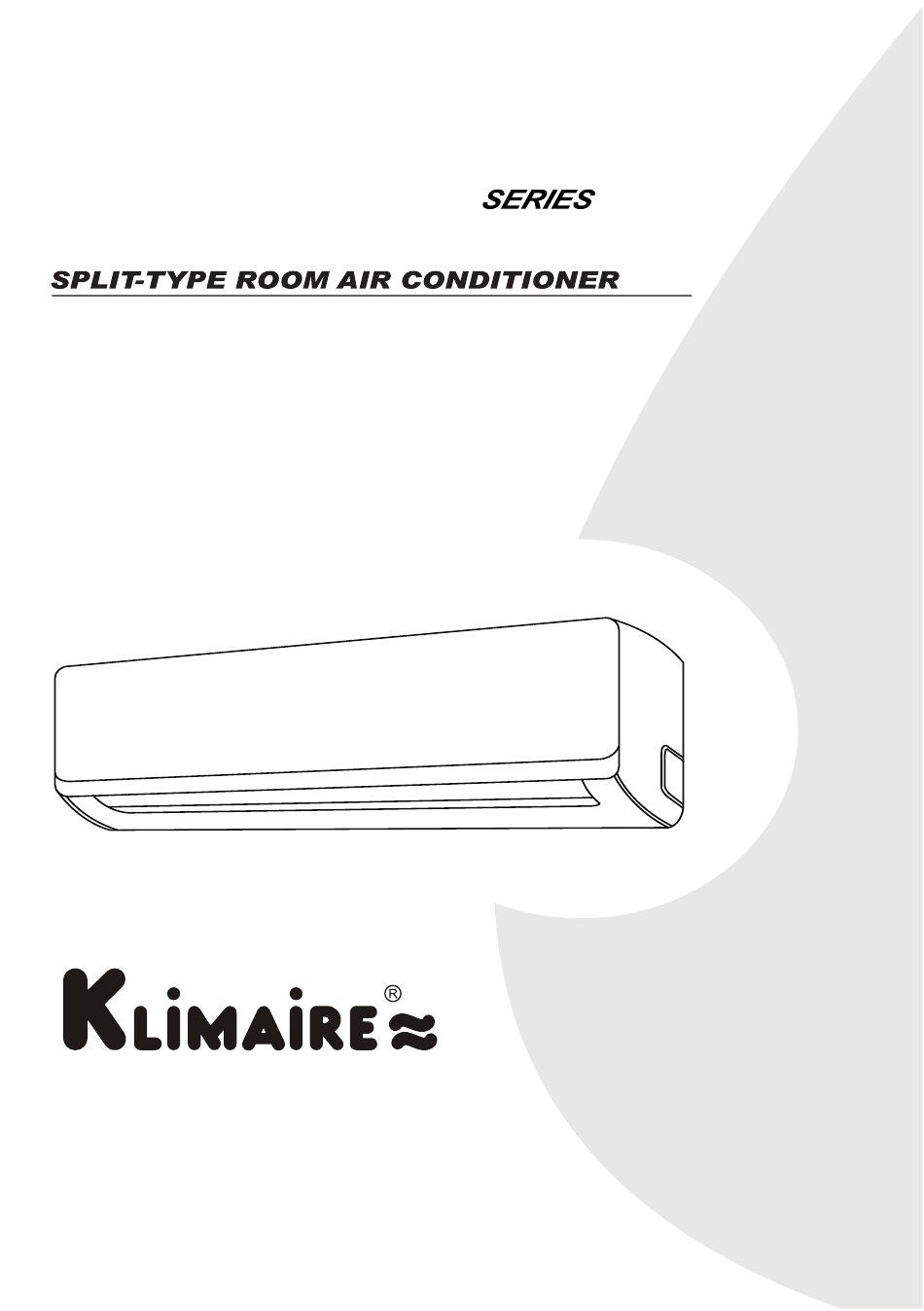

- Page 1 KIWU/KOIU Installation Manual Mark of Superior Quality IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. For more information please visit www.klimaire.com SMKIWU 23-01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ........................3 SAFETY PRECAUTIONS ..........................5 ACCESSORIES PIPE LENGTH AND ADDITIONAL REFRIGERANT ..............6 UNIT PARTS AND INSTALLATION COMPONENTS ..............7 SELECTING THE INSTALLATION PLACE ..................8 ......................10 INDOOR UNIT INSTALLATION ..................... 14 OUTDOOR UNIT INSTALLATION AIR EVACUATION .......................... -
Page 3: Safety Precautions
Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause moderate injury to person, or damage to your unit or other property. - Page 4 Safety Precautions This symbol indicates that ignoring instructions may cause death or serious injury. WARNING 1. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire. 2. Contact an authorized service technician for repair or maintenance of this unit. 3.
-
Page 5: Accessories
Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. Name Shape Quantity... -
Page 6: Pipe Length And Additional Refrigerant
INSTALLATION MANUAL Pipe Length and Addi onal Refrigerant Inverter Models Capacity (Btu/h) 9K-12K 18K-36K Length of pipe with standard charge 5m/16 5m/16 5m/16 5m/16 Length of pipe with standard charge (Like: North American, etc.) 7.5m/24 7.5m/24 7.5m/24 7.5m/24 Maximum distance between indoor and outdoor unit 15m/49 15m/49 25m/82... -
Page 7: Unit Parts And Installation Components
UNIT PARTS AND INSTALLATION COMPONENTS NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas. INDOOR UNIT OUTDOOR UNIT Functional Filter (On Back of Remote Controller Wall Mounting Plate Main Filter - Some Units) Remote controller Holder... -
Page 8: Selecting The Installation Place
INSTALLATION MANUAL---Selecting the Installation Place PRIOR TO INSTALLATION Before installing the indoor unit, refer to the label on the product box to make sure that the voltage and the model number of the indoor unit matches the voltage and the model mumber of the outdoor unit. GENERAL The air condi oner must be installed by professional or qualified Technicians. - Page 9 INSTALLATION MANUAL---Selecting the Installation Place Indoor unit Installation Diagram Pipe length is 50' (15m)Max Outdoor unit Pipe length is Note 50' (15m)Max Quick connect Outdoor unit piping kit 25 ft long Indoor unit Only persons and/or companies qualified and experienced in the installa on, service and repair of refrigerant products should be permi ed to do so.
-
Page 10: Indoor Unit Installation
INSTALLATION MANUAL - Indoor Unit installation Drilling a hole in the wall for the piping STEP 4: Wall Indoors 4.1 Drill the hole in the wall for the copper pipe crossing, Outdoors following the quick-installa on paper board marked Front suggested diameter is 2-3/4 in. - Page 11 INSTALLATION MANUAL - Indoor Unit installation STEP 7: Unrolling the pipes IMPORTANT Do not remove the cap from the pipe un l connec ng it, to avoid dampness or dirt from entering. If the pipe is bent or pulled too o en, it will become s ff.
- Page 12 INSTALLATION MANUAL - Indoor Unit installation STEP 9: Wiring Connection Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit. BEFORE PERFORMING ANY ELECTRICAL WORK, READ To avoid ge ng an electric shock, never touch THESE REGULATIONS the electrical components soon a er the power 1.
- Page 13 INSTALLATION MANUAL - Indoor Unit installation STEP 10: Wrap Piping and Cable A er the refrigerant pipes, connec ng wires and drainage hose are all installed, in order to save space, protect and insulate them, it must be bundle with insula ng tape before passing them through the wall hole.
-
Page 14: Outdoor Unit Installation
INSTALLATION MANUAL - Outdoor Unit installation STEP 11: Outdoor Unit Installation DO NOT install unit in the following Install the unit by following local codes and locatrions: regula ons , there may be differ slightly between different regions. Near an obstacle that will block air inlets and outlets Near a public street, crowded areas, or where noise from the unit will disturb others... - Page 15 INSTALLATION MANUAL - Outdoor Unit installation Step 2: Install drain joint(Heat pump unit only) Step 3: Anchor outdoor unit Before bol ng the outdoor unit in place, you must The outdoor unit can be anchored to the install the drain joint at the bo om of the unit. ground or to a wall-mounted bracket with Note that there are two different types of drain bolt(M10).
- Page 16 INSTALLATION MANUAL - Outdoor Unit installation Outdoor Unit Dimensions (in) Mounting Dimensions Model Number W x D x H Distance A (in) Distance B (in) 728 x 305 x 550 (28.7" x 12.0" x 21.7") 434 (17.1") 278 (19.9") KOIU09H1-1T 728 x 305 x 550 (28.7"...
- Page 17 INSTALLATION MANUAL - Outdoor Unit installation Refrigerant Piping Connection When connec ng refrigerant piping, do not let substances or gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit’ s capacity, and can cause abnormally high pressure in the refrigera on cycle.
- Page 18 INSTALLATION MANUAL - Outdoor Unit installation PIPING EXTENSION BEYOND FLARE FORM Step 2: Remove burrs Burrs can affect the air- ght seal of refrigerant Outer Diameter of A (mm) piping connec on. They must be completely Max. Pipe (mm/in) Min. Max.
- Page 19 INSTALLATION MANUAL - Outdoor Unit installation Tighten the flare nut as ghtly as possible by hand. Using a spanner, grip the nut on the unit tubing. While firmly gripping the nut on the unit tubing, use a torque wrench to ghten the flare nut according to the torque values in the Torque Requirements table below.
-
Page 20: Air Evacuation
INSTALLATION MANUAL - Air Evacuation MANIFOLD AND GAUGES If there is a change in system pressure, refer Preparations and Precautions to Gas Leak Check sec on for informa on on how to check for leaks. If there is no Air and foreign ma er in the refrigerant circuit can change in system pressure, unscrew the cap cause abnormal rises in pressure, which can damage from the packed valve (high pressure valve). -
Page 21: Refrigerant
INSTALLATION MANUAL - Refrigerant Manifold gauge compound gauge Pressure gauge Low pressure valve High pressure valve Service port Low pressure valve High pressure valve Valve protec ve caps Pressure hose Charge hose Vacuum pump Close the Low Pressure side of the manifold gauge, and turn off... -
Page 22: Electrical And Gas Leak Checks
Electrical and Gas Leak Checks WARNING – RISK OF Before Test Run ELECTRIC SHOCK Only perform test run a er you have completed ALL WIRING MUST COMPLY WITH LOCAL the following steps: AND NATIONAL ELECTRICAL CODES, Electrical Safety Checks – Confirm that •... -
Page 23: Test Operation
Test Operation DOUBLE-CHECK PIPE CONNECTIONS Test Operation Instructions During opera on, the pressure of the You should perform the Test Opera on for at least 30 refrigerant circuit will increase. This may minutes. reveal leaks that were not present during your Connect power to the unit. - Page 24 Tel: (305) 593 - 8358 www.klimaire.com customerservice@klimaire.com The Klimaire logo is a registered Trademark of Klimaire Products Inc. Copyright 2023 Klimaire Products Inc. The design and specifi cations are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
