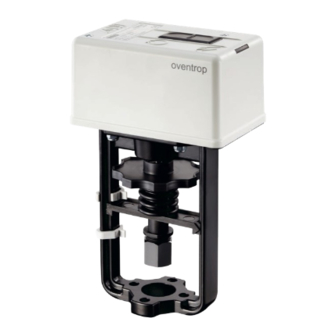

- Page 1 Aktor M Operating instructions...
-
Page 3: Table Of Contents
Aktor M Contents Page General information ......................5 Validity of the instructions ........................5 Type plate ............................... 5 Scope of delivery ............................ 5 Contact ..............................5 Symbols used ............................5 Safety-related information ....................5 Intended use ............................5 Warnings ..............................5 Safety instructions .......................... - Page 4 Aktor M Contents Page Setting of the DIP switches ........................16 6.1.1 DIP switches A .............................16 6.1.2 DIP switches B .............................17 Functional test ............................17 Initialisation run .............................18 Operation ......................... 18 Operating mode selector switch ......................18 External operating mode selector switch (manual mode) ..............18 Superimposition through DIP switch .....................18...
-
Page 5: General Information
Operational safety is only guaranteed if the product is used as intended. Validity of the instructions The Aktor M ST/3P L, 24 V electromotive actuator is designed for the automated, finely graduated adjustment These instructions are valid for the electromotive actuator of Cocon QTR/QFC valves in nominal sizes DN 40 to... -
Page 6: Safety Instructions
Aktor M Safety-related information Safety instructions 2.3.6 Damage to property due to unsuitable location We have developed this product in accordance with current safety requirements. Do not install the product in rooms prone to Observe the following instructions for safe use. -
Page 7: Technical Description
Functional description 3.2.6 Valve blocking protection The electromotive actuator Aktor M 24 V for Cocon QTR/ If the system conditions permit, the valve blocking QFC is used for the finely graduated stroke adjustment of protection can be activated during commissioning. -
Page 8: Safety End Position / Resynchronisation Of The End Position
Aktor M Technical description 3.2.7 Safety end position / resynchronisation 3.2.8 Dynamic Yin damping / Balancing of the end position external disturbances To prevent the actuator from oscillating when external Operating mode Behaviour disturbances are coupled to the control line Y, the input hysteresis band is automatically increased. -
Page 9: Operating Elements And Displays
Aktor M Technical description Operating elements and displays 3.3.3 LED displays LED display Meaning 3.3.1 Cover LED lights up green Normal operation / Automatic mode Valve blocking protection Safety end position LED flashes green Initialisation (valve adaptation) LED lights up green + LED... -
Page 10: Technical Data
Aktor M Technical description Technical data IP54 (upper half-sphere), Protection type IP40 (lower half-sphere) Technical data (see Fig. 5 on page 12) 24 V AC/DC ±10 %; Protection class III according to EN 60730 Nominal voltage 50/60 Hz Mounting position 360° 18 VA (AC); 9 W (DC) with Dimensioning actuator heating: 24 VA... -
Page 11: Transport And Storage
Aktor M Transport and storage 4. Transport and storage 5. Mounting Parameter Value Keep the actuator in its original packaging for protection until mounting. Temperature range 0 °C to +40 °C Relative air humidity max. 95 % Allow for sufficient free space for mounting the actuator. -
Page 12: Installation Positions
Aktor M Mounting Installation positions IP54 IP54 3,0 Nm IP40 IP40 Fig. 5: Installation positions The actuator can be mounted vertically above 2,5 mm and below the valve up to the horizontal position. For horizontal installation, the actuator columns must be vertically above each other. If necessary, turn the crossbeam (for this you have to loosen Fig. -
Page 13: Electrical Connection Of The Actuator
Aktor M Mounting Electrical connection of the actuator MD100 SW24 / 6 Nm CAUTION Risk of injury from electric current! A short circuit of the 24 V voltage can cause burns and fires. Disconnect the product from the power supply at all poles. -
Page 14: Cabling
Aktor M Mounting 5.3.1.2 Priority switch (Open / Closed) Fig. 15: Manual mode with operating mode selector switch (Auto / Stop / Closed / Open) 5.3.2 Cabling Loosen the cover screws (position in Fig. 2 on page 0 Y A 0 0 M 3 2... - Page 15 Aktor M Mounting Fig. 18: Guiding of the connection cable through the screwed cable gland Fig. 21: Plugging in the connector plug Disconnect the connector plug from the actuator. Hand-tighten the screwed cable gland until the cable connects tightly. Fig. 19: Loosening of the connector plug Fig.
-
Page 16: Commissioning
Aktor M Commissioning 6. Commissioning Function Hysteresis: 0,2 V (0.4 mA) Setting of the DIP switches Hysteresis: 0,5 V (1 mA) NOTICE Feedback: absolute position Damage to the actuator due to short circuit! Feedback: relative position Touching conductive areas of the PCB with a... -
Page 17: Dip Switches B
Aktor M Commissioning 6.1.2 DIP switches B Inversion (Yout): 0..100 % → 0..10 V (0..20 mA) Setting range (Yin + Yout): 2..10 V (4..20 mA) → 0..100 % Setting range (Yin + Yout): 0..10 V (0..20 mA) → 0..100 % Safety end position: Top Safety end position: Bottom Characteristic line 1... -
Page 18: Initialisation Run
Aktor M Operation Operation Initialisation run After remounting or after changing the setting of the maximum flow rate on the valve, a new valve adaptation Operating mode selector switch must be carried out by reinitialisation. Switch DIP switch A5 back and forth (change switch... -
Page 19: Troubleshooting
Aktor M Troubleshooting 8. Troubleshooting CAUTION Risk of burns on hot surfaces or danger of hypothermia on cold surfaces! If there is a hardware or software error, an unexpected positioning movement and opening of the valve may occur. Severe burns or hypothermia are possible when coming into contact with hot or cold surfaces on valves and pipelines. -
Page 20: Maintenance
NOTICE Risk of environmental pollution! Maintenance Incorrect disposal can lead to environmental damage. No maintenance work is required for the Aktor M actuator. Dispose of packaging material in an environmentally friendly manner. Cleaning If possible, recycle the components. No cleaning is required for the Aktor M actuator. -
Page 21: Appendix
Aktor M Appendix 11. Appendix 11.1 Characteristic lines (DIP B3 = OFF) Fig. 28: Characteristic lines Characteristic line 1 Characteristic line 2 Characteristic line 3 Characteristic line 4 115802384-V01.10.2022... -
Page 22: Inverted Characteristic Lines (Dip B3 = On)
Aktor M Appendix 11.2 Inverted characteristic lines (DIP B3 = ON) Fig. 29: Inverted characteristic lines Characteristic line 1 Characteristic line 2 Characteristic line 3 Characteristic line 4 115802384-V01.10.2022... - Page 24 Oventrop GmbH & Co. KG · Paul-Oventrop-Str. 1 · 59939 Olsberg Tel. +49 2962 820 · Fax +49 2962 82400 · mail@oventrop.com · www.oventrop.com...
