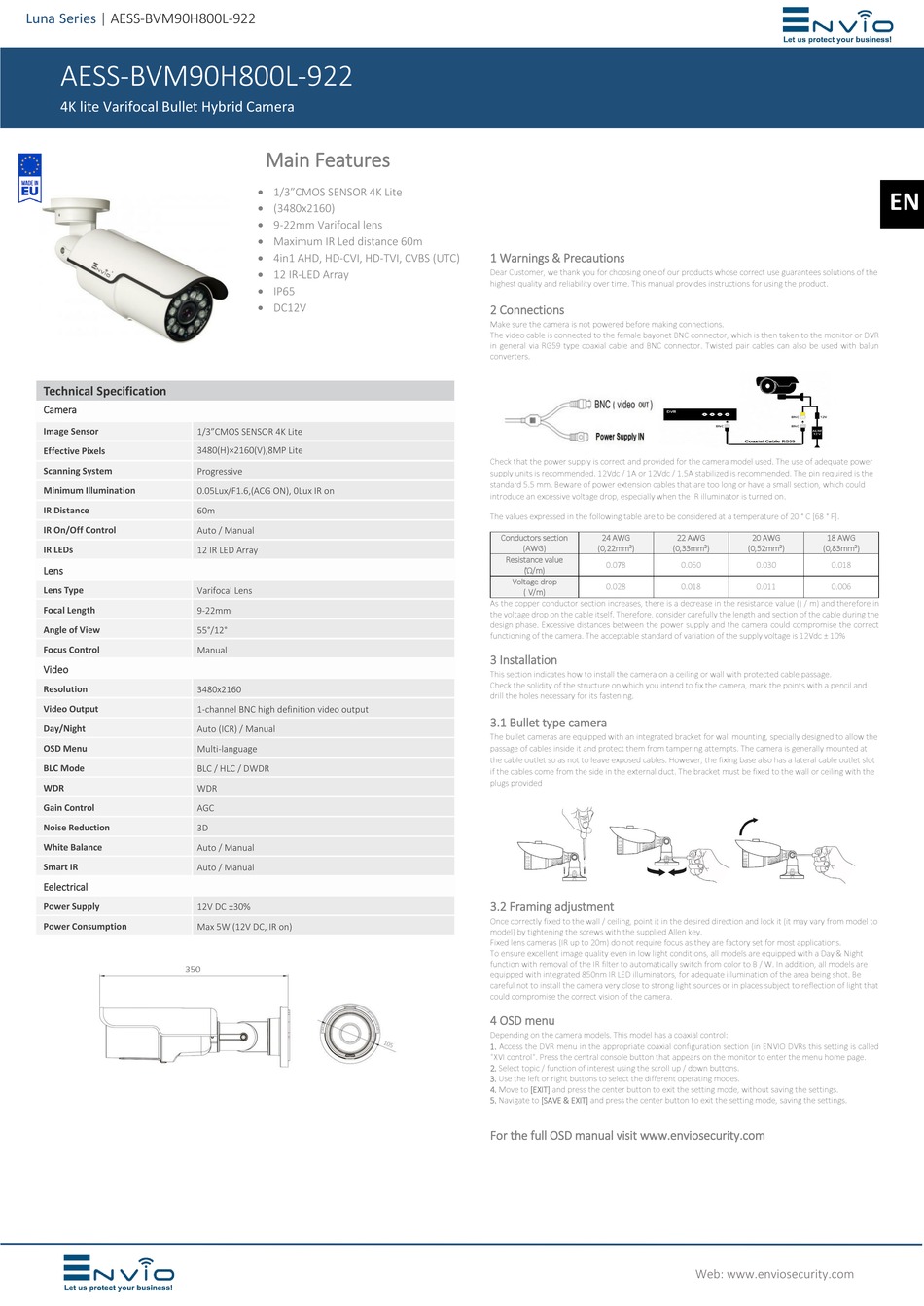

ENVIO Luna Series Quick Start Manual

Luna Series | AESS-BVM90H800L-922
AESS-BVM90H800L-922

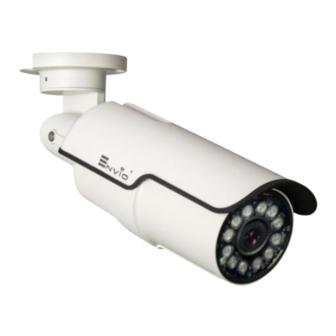

4K lite Varifocal Bullet Hybrid Camera
Technical Specification
Camera
Image Sensor
1/3"CMOS SENSOR 4K Lite
3480(H)×2160(V),8MP Lite
Effective Pixels
Scanning System Progressive
Minimum Illumination
0.05Lux/F1.6,(ACG ON), 0Lux IR on
IR Distance 60m
IR On/Off Control Auto / Manual
IR LEDs
12 IR LED Array
Lens
Lens Type Varifocal Lens
Focal Length 9-22mm
Angle of View 55°/12°
Focus Control Manual
Video
Resolution 3480x2160
Video Output 1-channel BNC high definition video output
Day/Night
Auto (ICR) / Manual
Video Output
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR
WDR
Gain Control AGC
Noise Reduction 3D
White Balance
Auto / Manual
Smart IR Auto / Manual
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max 5W (12V DC, IR on)
Main Features
Camera
 1/3"CMOS SENSOR 4K Lite
 (3480x2160)
 9-22mm Varifocal lens
 Maximum IR Led distance 60m
 4in1 AHD, HD-CVI, HD-TVI, CVBS (UTC)
 12 IR-LED Array
 IP65
 DC12V
1 Warnings & Precautions
Dear Customer, we thank you for choosing one of our products whose correct use guarantees solutions of the
highest quality and reliability over time. This manual provides instructions for using the product.
2 Connections
Make sure the camera is not powered before making connections.
The video cable is connected to the female bayonet BNC connector, which is then taken to the monitor or DVR
in general via RG59 type coaxial cable and BNC connector. Twisted pair cables can also be used with balun
converters.
Check that the power supply is correct and provided for the camera model used. The use of adequate power
supply units is recommended. 12Vdc / 1A or 12Vdc / 1,5A stabilized is recommended. The pin required is the
standard 5.5 mm. Beware of power extension cables that are too long or have a small section, which could
introduce an excessive voltage drop, especially when the IR illuminator is turned on.
The values expressed in the following table are to be considered at a temperature of 20 ° C [68 ° F].
Conductors section 24 AWG
(AWG) (0,22mm²)
Resistance value
0.078
(Ώ/m)
Voltage drop
0.028
( V/m)
As the copper conductor section increases, there is a decrease in the resistance value () / m) and therefore in
the voltage drop on the cable itself. Therefore, consider carefully the length and section of the cable during the
design phase. Excessive distances between the power supply and the camera could compromise the correct
functioning of the camera. The acceptable standard of variation of the supply voltage is 12Vdc ± 10%
3 Installation
This section indicates how to install the camera on a ceiling or wall with protected cable passage.
Check the solidity of the structure on which you intend to fix the camera, mark the points with a pencil and
drill the holes necessary for its fastening.
3.1 Bullet type camera
The bullet cameras are equipped with an integrated bracket for wall mounting, specially designed to allow the
passage of cables inside it and protect them from tampering attempts. The camera is generally mounted at
the cable outlet so as not to leave exposed cables. However, the fixing base also has a lateral cable outlet slot
if the cables come from the side in the external duct. The bracket must be fixed to the wall or ceiling with the
plugs provided
3.2 Framing adjustment
Once correctly fixed to the wall / ceiling, point it in the desired direction and lock it (it may vary from model to
model) by tightening the screws with the supplied Allen key.
Fixed lens cameras (IR up to 20m) do not require focus as they are factory set for most applications.
To ensure excellent image quality even in low light conditions, all models are equipped with a Day & Night
function with removal of the IR filter to automatically switch from color to B / W. In addition, all models are
equipped with integrated 850nm IR LED illuminators, for adequate illumination of the area being shot. Be
careful not to install the camera very close to strong light sources or in places subject to reflection of light that
could compromise the correct vision of the camera.
4 OSD menu
Depending on the camera models. This model has a coaxial control:
1. Access the DVR menu in the appropriate coaxial configuration section (in ENVIO DVRs this setting is called
"XVI control". Press the central console button that appears on the monitor to enter the menu home page.
2. Select topic / function of interest using the scroll up / down buttons.
3. Use the left or right buttons to select the different operating modes.
4. Move to [EXIT] and press the center button to exit the setting mode, without saving the settings.
5. Navigate to [SAVE & EXIT] and press the center button to exit the setting mode, saving the settings.
For the full OSD manual visit www.enviosecurity.com
22 AWG 20 AWG 18 AWG
(0,33mm²) (0,52mm²) (0,83mm²)
0.050 0.030 0.018
0.018 0.011 0.006
Web: www.enviosecurity.com
