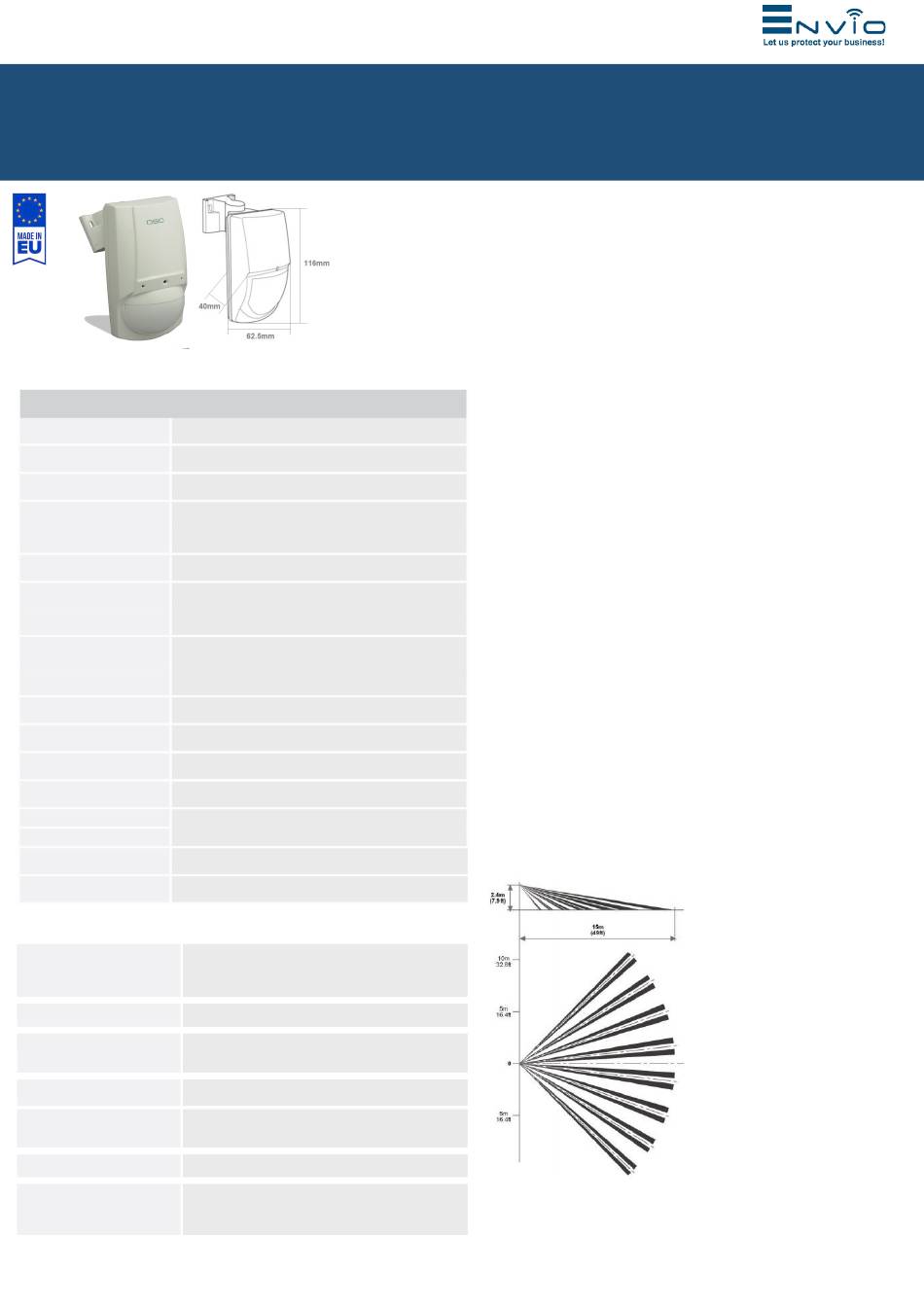

ENVIO Luna CACT-DSC-800L Manual

Luna Series |
CACT-DSC-800L
CA CT-DSC-800L
8MP DSC PIR DETECTOR WITH AUDIO
Technical Specification Camera
Image Sensor 1/3"CMOS Sensor
Effective Pixels 3840(H)×2160(V),8MP
Scanning System Progressive
Minimum Illumination 0.001Lux/F1.6, 30IRE
Lens Type Fixed Lens
Focal Length 3.7mm
Angle of View 82°
Resolution 3840x2160
Video Output 1-channel BNC high definition video output
AHD/HD-TVI 8MP@15FPS;HD-CVI 5MP@20FPS
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR WDR
Gain Control AGC
Noise Reduction 3D
White Balance Auto/Manual
Audio Build in Microphone
Power Supply 12V DC ±30%
Power Consumption Max 3W (12V DC
Technical Specification Pir Detector
Detection method Voltage Quad Pyroelectric Sensor (four elements)
Temperature compensation 8.2 to 16 Vdc
Alarm Duration Monochrome: 115 mA Color: 150 mA Yes
Alarm output
2 ±1 s
Tamper
N.C 28 Vdc 0.1 A with 10 Ohm series resistor
open when cover is removed
Stabilization Time
1 min
LED light Red LED on during alarm
RFI immunity More than 10 V/m, 80% AM from 80 MHz to 1GHz
Electrostatic Immunity
8 kV contact, 15 kV air
Immunity to Pulses 2,4 kV @ 1,2 joules
Operating temperature -10 ºC a +50 ºC
Dimensions 116mm x 62,5mm x 40mm
www.enviosecurity.com
Analog High Definition PIR Detector
•
4K Lite 1/3"CMOS Sensor
•
8 Megapixel (3480x2160)
•
4in1 AHD,HD-CVI, HD-TVI, CVBS (UTC)
•
3.7mm Fixed Lens
• Audio Out with Build in Microphone
•
4in1 AHD,HD-CVI,HD-TVI,CVBS (UTC)
•
IP20
•
DC12V
• Pets Immunity
• 15mt Detection Area
1 WARNING & PRECAUTIONS
Dear Customer, we thank you for choosing one of our products whose correct use
guarantees solutions of the highest quality and reliability over time. This manual
provides instructions for using the product.
2 CONNECTION
Make sure the camera is not powered before making connections.
The video cable is connected to the female bayonet BNC connector, which is then
taken to the monitor or DVR in general via RG59 type coaxial cable and BNC
connector. Twisted pair cables can also be used with balun converters.
Check that the power supply is correct and provided for the camera model used.
The use of adequate power supply units is recommended. 12Vdc / 1A or 12Vdc /
1,5A stabilized is recommended. The pin required is the standard 5.5 mm. Beware
of power extension cables that are too long or have a small section, which could
introduce an excessive voltage drop, especially when the IR illuminator is turned on.
The values expressed in the following table are to be considered at a temperature
of 20 ° C [68 ° F].
3 TYPICAL INSTALLATION
Choice of location for mounting. Select the most suitable location to detect the
presence of an intruder. (Corner installation is recommended). See coverage area
(Fig. 3).
The highly sensitive four-element sensor
detects the movements that cross the
beams; it is slightly less sensitive at
detecting movement towards the
detector. Avoid the following locations:
Exposure to sunlight. Facing areas that
can change temperature rapidly. *
Locations with air ducts or strong air
currents. The detector performance is
optimal in a uniform and stable
environment.
The detector must be installed and used
in environments with a pollution degree
not exceeding factor 2 and overvoltage
category II, IN NON-HAZARDOUS
ENVIRONMENTS, indoors only. The
detector is designed to be installed by
qualified personnel only
