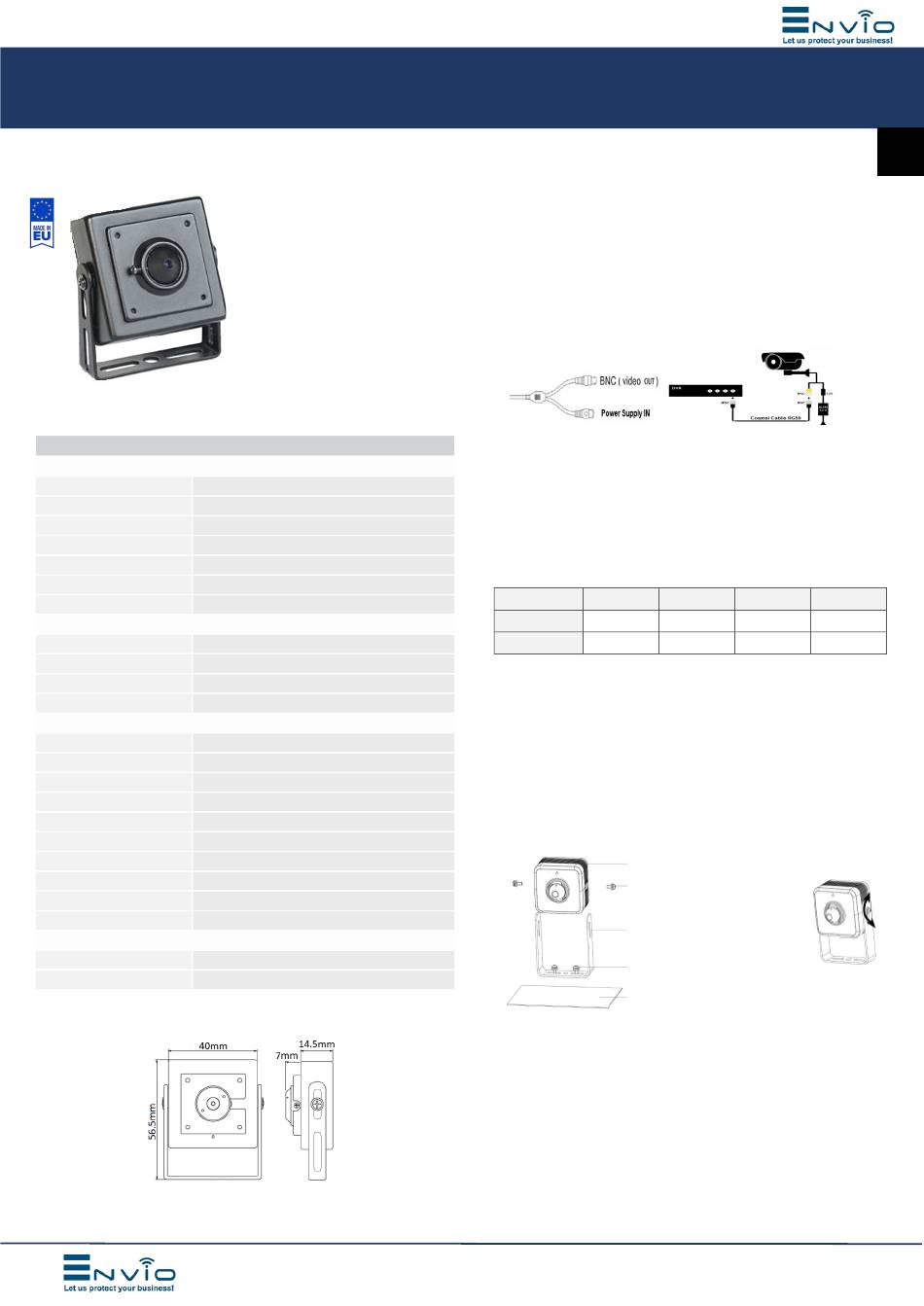

ENVIO Luna Series Manual

Luna Series |
AESS-SMP500S
AESS-SMP500S
5MP PinHole Hybrid Camera
Technical Specification
Camera
Image Sensor
1/2.8" CMOS HDIS
Effective Pixels 2592(H)×1944(V), 5MP
Scanning System
Progressive
Minimum Illumination
0.005Lux/F1.6
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/D
Lens
Lens Type
Fixed Lens
Focal Length
3.7mm
Angle of View
82°
Focus Control
N/A
Video
Resolution
2592x1944
Video Output
1-channel BNC high definition video output
Day/Night
N/D
OSD Menu
Multi-Language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
3D
White Balance
Auto / Manual
Smart IR
N/A
Eelectrical
Power Supply
12V DC ±30%
Power Consumption
<1W
Analog High Defition
•
1/2.8" CMOS HDIS
•
5 Megapixel (2592x1944)
•
3.7mm Fixed lens
•
4in1 XVI/AHD,HDCVI, HDTVI, CVBS (UTC)
•
IP44
•
DC12V
1 Warnings & Precautions
Dear Customer, we thank you for choosing one of our products whose correct
use guarantees solutions of the highest quality and reliability over time. This
manual provides instructions for using the product.
2 Connections
Make sure the camera is not powered before making connections.
The video cable is connected to the female bayonet BNC connector, which is then
taken to the monitor or DVR in general via RG59 type coaxial cable and BNC
connector. Twisted pair cables can also be used with balun converters.
Check that the power supply is correct and provided for the camera model used.
The use of adequate power supply units is recommended. 12Vdc / 1A or 12Vdc /
1,5A stabilized is recommended. The pin required is the standard 5.5 mm.
Beware of power extension cables that are too long or have a small section,
which could introduce an excessive voltage drop, especially when the IR
illuminator is turned on.
The values expressed in the following table are to be considered at a
temperature of 20 ° C [68 ° F].
Conductors section 24 AWG
(AWG) (0,22mm²)
Resistance value
0.078
(Ώ/m)
Voltage drop
0.028
( V/m)
As the copper conductor section increases, there is a decrease in the resistance
value () / m) and therefore in the voltage drop on the cable itself. Therefore,
consider carefully the length and section of the cable during the design phase.
Excessive distances between the power supply and the camera could compromise
the correct functioning of the camera. The acceptable standard of variation of the
supply voltage is 12Vdc ± 10%
3 Preparing the Mounting Surface and Mounting the Camera
1.Install the camera together with the bracket on the mounting surface and
secure the installation screws firmly.
2.Connect the camera's connectors to power, network and audio in/out.
3.Adjust the camera angle and tighten the adjusting screws.
Camera body
Adjusting screws
Bracket
Mounting screws (not included)
Mounting surface
4 OSD Menu
Depending on the camera models. This model has a coaxial control:
1. Access the DVR menu in the appropriate coaxial configuration section (in ENVIO
DVRs this setting is called "XVI control". Press the central console button that
appears on the monitor to enter the menu home page.
2. Select topic / function of interest using the scroll up / down buttons.
3. Use the left or right buttons to select the different operating modes.
4. Move to [EXIT] and press the center button to exit the setting mode, without
saving the settings.
5. Navigate to [SAVE & EXIT] and press the center button to exit the setting mode,
saving the settings.
For the full OSD manual visit www.enviosecurity.com
22 AWG 20 AWG 18 AWG
(0,33mm²) (0,52mm²) (0,83mm²)
0.050 0.030 0.018
0.018 0.011 0.006
Web: www.enviosecurity.com
EN
