ENVIO Full Color Series Quick Start Manual

Full Color Series | IESS-BFM60H400-W

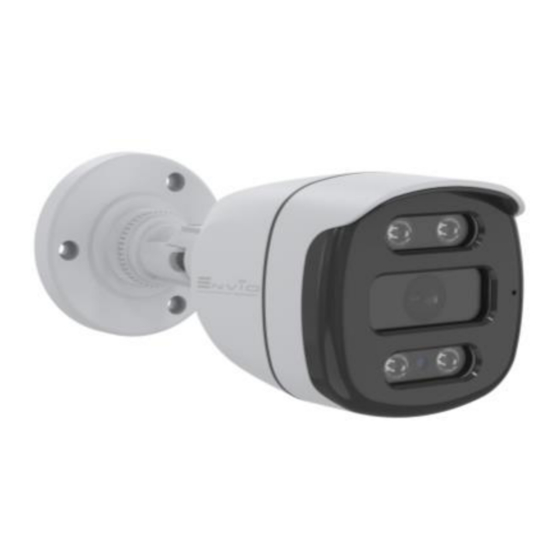

IESS-BFM60H400-W
4MP Bullet Full Color Network Camera
Technical Specification
Camera
Embedded RTOS design, dual-core 32-bit DSP,NOVATEK NT98562
System
Image Sensor
2560(H)×1440(V), 4MP 1/3" CMOS Sensor
Video compression H264 / H265 / H265+
Minimum Illumination color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2
IR Distance
30m
IR On/Off Control Auto / Manual
LEDs
4 Warm White Leds
Lens
Lens Type Fixed Lens
Focal Length 2.8mm
Angle of View 105°
Focus Control N/A
Video
Resolution
2560x1440
Video Output Main stream:
2560*1440@25fps,2304*1296@25fps,1920*1080@25fps;
Sub stream: 800*448@25fps
Record N/D
Network
Interface 1*RJ45 10/100M adaptive port;RTSP/FTP/DHCP/NTP/UPnP
16.12
ONVIF
Mobile Monitor
XMEYE/XMEYE PRO (iOS,Adroid)
Detect Human Detect/Face Detect/Video Analysis
Noise Reduction 2D/3D
White Balance
Auto / Manual
Audio N/D
Electrical
Power Supply
12V DC ±30% / POE IEEE802.3af
Power Consumation Max 3.6W (Leds on)
Environment
IP Protection IP65
Construction
Housing
Plastic
Dimensions / Weight
178mm×68mm
1 Warnings & Precautions
ear Customer, we thank you for choosing one of our products whose correct use guarantees solutions of the
highest quality and reliability over time. This manual provides instructions for using the product.
2 Connections
Connect the camera to the router and plug in the power cable (12V at least 1A). You can also power the cam
with POE (IEEE.802.3af)
3 Installation
The bullet cameras are equipped with an integrated bracket for wall mounting, specially designed to allow the
passage of cables inside it and protect them from tampering attempts. The camera is generally mounted at
the cable outlet so as not to leave exposed cables. However, the fixing base also has a lateral cable outlet slot
if the cables come from the side in the external duct. The bracket must be fixed to the wall or ceiling with the
plugs provided
Main Features
•
1/3" Black light illumination CMOS sensor
•
4MP (2560*1440)
• 2.8mm Fixed lens
• Maximum Led distance 30m
• Human Detect/Face detect/Video Analysis
• 12VDC/POE IEEE802.3af
•
Onvif 16.12
•
H264/H265/H265+
• 4 Warm White LEDs
4 Framing adjustment
Once fixed correctly to the wall / ceiling, point it in the desired direction and lock it (may vary from model to
model) by tightening the screws with the Allen key provided. Fixed lens cameras do not require focusing as
they are factory set for most applications. To ensure optimum image quality, do not install the camera too
close to strong light sources or in places subject to light reflections that could compromise the correct view of
the camera.
5 Configuration
Connect the camera to the router and plug in the power cable (12V at least 1A). You can power the camera in
POE (IEEE.802.3af), if the camera model is equipped with POE.
Download the "Device Manager" software from the website www.enviosecurity.com and install it on the PC.
Once the software is open, press the "IP Search" button (1). Select the IP address shown by the software (2),
and modify the IP address of the camera (3), taking care to enter an IP address with the same subnet as your
router, enter the relevant network mask and IP address of the gateway.
Finally, press the "Modify" button (4) to save the settings. The software will show a "successful change"
message.
Open Internet Browser (like Chrome, Edge, Opera, Firefox ecc.).
In the browser address bar, enter the IP address of the camera http://192.168.1.10. Allow to download plugin
Envio VideoPlayTool.Install it, and refresh the page.
Enter your login credentials:
user: admin
password: (no password)
For the full manual visit www.enviosecurity.com
