Summary of Contents for Topten TK108

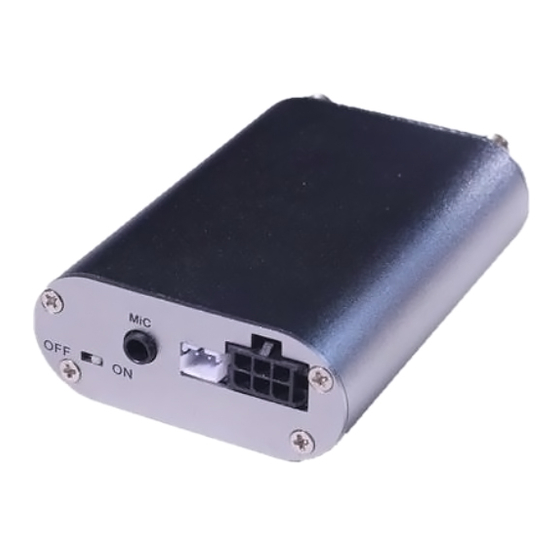

- Page 1 GPS Vehicle Tracker USER MANUAL (Model: TK108) GUANGZHOU TOPTEN ELECTRONICS FACTORY Address: 5/F, Bldg.B, No.3, Tangdong Guangtang West Rd., Guangtang Industrial Zone,Tianhe District, Guangzhou, China. Tel: (+86)20-38351400, 38351401 Version 3.0 (Date: March. 20, 2020)
-
Page 2: Table Of Contents
TK108 GPS Vehicle Tracker User Manual CONTENT Preface ..........................2 I. Features & Functions.....................3 II. How to Operate it......................4 Authorize the Alarm-received Phone No..............4 Arm/Disarm by Phone Calling ..................4 Check the Vehicle’s Status..................5 Arm/Disarm the System by SMS ................5 Check the location by Google Map’s URL..............5 Check the Real Physical Address ................6... -
Page 3: Preface
TK108 GPS Vehicle Tracker User Manual Preface TK108 GPS Vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially used for car/truck tracking because of its compact size and strong functions. Read it firstly: Please read this manual thoroughly before you use the device; please keep it for future reference. -
Page 4: Features & Functions
TK108 GPS Vehicle Tracker User Manual I. Features & Functions 1. Track on command or by time interval or by distance; 2. Arm/disarm by SMS or phone call; 3. Check the car’s real physical address; 4. Track by mobile SMS to get the latitude, longitude, speed, direction &... -
Page 5: How To Operate It
TK108 GPS Vehicle Tracker User Manual II. How to Operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter &... -
Page 6: Check The Vehicle's Status
TK108 GPS Vehicle Tracker User Manual Check the Vehicle’s Status SMS command: 111111CHK (or 111111chk) This instruction is used to inquiry the vehicle’s location & system’s status. The system will send back the SMS, includes the similar information, such as ‘Tracker Armed……’... -
Page 7: Check The Real Physical Address
TK108 GPS Vehicle Tracker User Manual Check the Real Physical Address SMS command: 111111ADD (or 111111add) When user sends this SMS command to the tracker, the tracker will automatically send back the car’s real physical address (such as city name, street name) to your mobile by SMS. -
Page 8: Restore The Stopped Car To Normal Status
TK108 GPS Vehicle Tracker User Manual Restore the Stopped Car to Normal Status SMS command: 111111RES (or 111111res) It is used to restore the car to normal status after being stopped. Monitor the Voice around the Car SMS command: 111111MON This instruction is used to monitor the voice around the car. -
Page 9: Upgrade The Fimeware By Air
TK108 GPS Vehicle Tracker User Manual (For example: 111111SPD:120, if the car speed is over 120KM/H, it will send alert SMS to warn you). 111111SPD:0 to disable the over-speed alert. It is the default setting. 111111SPD: to check the setting of over-speed alert. -
Page 10: Set To Take Photos Automatically By Time Intervals
TK108 GPS Vehicle Tracker User Manual Set to take photos automatically by time intervals 111111CAM:X SMS command: X can set 0 - 65535 the unit is minute. (if you want to cancel the function about taking photo automatically, then just set the X with 0) The photo only can send to the platform, can’t send to phone. -
Page 11: The Setting For Gprs Connection
TK108 GPS Vehicle Tracker User Manual Routine Optimization ******DEG:X 111111DEG:30 It is to set the angle. When the car turns a corner over this angle, then it will sample a location to optimize the routine. ******ADC:X Check Vehicle battery 111111ADC: It will reply the voltage of external power battery. - Page 12 TK108 GPS Vehicle Tracker User Manual RPT: The interval for the uploading GPRS packet (Unit: sec.) SLP: The interval for uploading GPRS packet when car is parked (Engine is OFF and no vibration). (unit: sec.); RUN: GPRS connection setting. 0=close, 1=TCP IDN: The tracker’s ID, it is the last 14 digits of IMEI which can't be...
-
Page 13: Alarm Types
TK108 GPS Vehicle Tracker User Manual Default GPRS Setting The default GPRS setting is: www.51track.com COM:8500 IPN: APN: cmnet RPT: 60 seconds RUN:1 SLP:1 III. Alarm Types Vibration Alarm In arming status, if the car is vibrated, it will send out alarm SMS. -
Page 14: Installation
TK108 GPS Vehicle Tracker TK108 GPS Vehicle Tracker User Manual User Manual IV. Installation Page13... -
Page 15: Rfid Car Alarm Functions And How To Usd
V RFID Car Alarm Functions and How to use It is the optional function, the extra RFID reader module & tag are needed. It supports 2.4G long distance reader/reader module(3-8meters); Our active RFID reader module & RFID tag are designed with 2.4G wireless technology. - Page 16 TK108 GPS Vehicle Tracker User Manual 111111RFD:6:0 : Deactivate the RFID function Arm/Disarm by RFID Tag The following SMS command is used to turn ON/ OFF the RFID's arm/disarm function: 111111RFD:8:1 : Activate the RFID's arm/disarm function (Default setting) 111111RFD:8:0 : Deactivate the RFID's arm/disarm function Once this function is activated, only the authorized tags can be used to arm/disarm the system.
- Page 17 TK108 GPS Vehicle Tracker User Manual Installation Notes: We strongly recommend you to ask the professional car electrician to do the installation. Please prepare a valid GSM SIM card in advance. IMPORTANT: Please do not insert or pull out the SIM card when the main unit has power.
-
Page 18: Specifications
TK108 GPS Vehicle Tracker User Manual VI . Specifications Working voltage: 10V-90VDC Power Consumption: Working current: 50mA; Peak current: 800mA; Inside Backup battery: Rechargeable 3.7V 500mAh Li-ion battery Size of the main unit: 62*50*22 (mm) Weight of the main unit: 65g Working temperature: -20 ~ 85℃... -
Page 19: Maintenance
TK108 GPS Vehicle Tracker User Manual (1) Please make sure there is no metal obstacles above the tracker. Please place the side with GPS antenna upside to the sky; (2) Please check it at broad place; I can not get the correct GPS (3) Please check if the GPS LED flash once coordinates or the location is every 3 seconds;...
