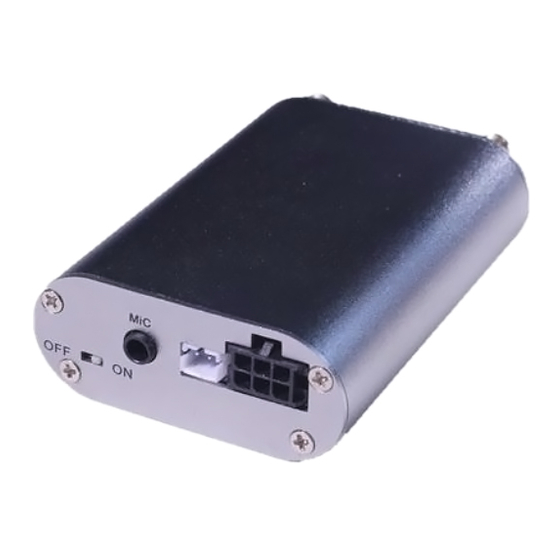

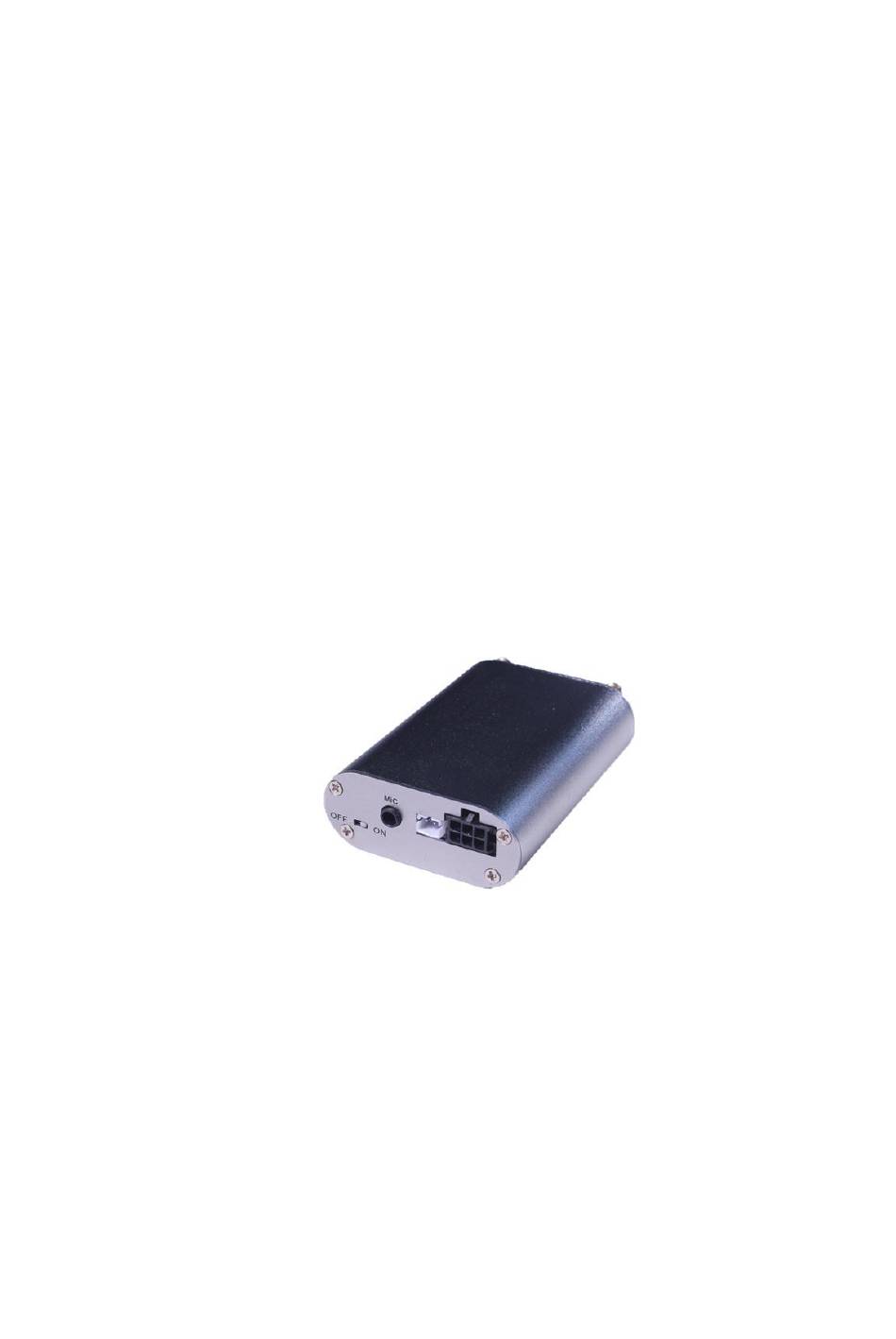

- Page 1 GPS Vehicle Tracker USER MANUAL (Model: TK108) Version 2.0 (Date: Nov. 22, 2013)
-
Page 2: Table Of Contents
TK108 GPS Vehicle Tracker User Manual CONTENT Preface ..........................2 I. Features & Functions ..................... 3 II. How to Operate it ......................4 Authorize the Alarm-received Phone No..............4 Arm/Disarm by Phone Calling .................. 4 Check the Vehicle’s Status ..................5 Arm/Disarm the System by SMS ................ -
Page 3: Preface
TK108 GPS Vehicle Tracker User Manual Preface TK108 GPS Vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially used for car/truck tracking because of its compact size and strong functions. Read it Firstly: Please read this manual thoroughly before you use the device; please keep it for future reference. -
Page 4: Features & Functions
TK108 GPS Vehicle Tracker User Manual I. Features & Functions 1. Track on command or by time interval or by distance. 2. Arm/disarm by SMS or phone call. 3. Check the car‟s real physical address (such as city name, street name..(need support of the TS01 or TS03 center);... -
Page 5: How To Operate It
TK108 GPS Vehicle Tracker User Manual II. How to Operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter &... -
Page 6: Check The Vehicle's Status
TK108 GPS Vehicle Tracker User Manual Check the Vehicle’s Status SMS command: 111111CHK (or 111111chk) This instruction is used to inquiry the vehicle‟s location & system‟s status. The system will send back the SMS, includes the similar information, such as “Tracker Armed……”... -
Page 7: Check The Real Physical Address
TK108 GPS Vehicle Tracker User Manual Check the Real Physical Address SMS command: 111111ADD (or 111111add) When user sends this SMS command to the tracker, the tracker will automatically send back the car‟s real physical address (such as city name, street name) to your mobile by SMS. -
Page 8: Restore The Stopped Car To Normal Status
TK108 GPS Vehicle Tracker User Manual Restore the Stopped Car to Normal Status SMS command: 111111RES (or 111111res) It is used to restore the car to normal status after being stopped. Monitor the Voice around the Car SMS command: 111111MONP This instruction is used to monitor the voice around the car. -
Page 9: Set Up The Shock Sensor
TK108 GPS Vehicle Tracker User Manual (For example: 111111SPD:120, if the car speed is over 120KM/H, it will send alert SMS to warn you). 111111SPD:0 to disable the over-speed alert. It is the default setting. 111111SPD: to check the setting of over-speed alert. -
Page 10: Define Sms Content In Different Languages
TK108 GPS Vehicle Tracker User Manual After setting 111111PWR:1(or 2, or 3), if there is no vibration & SOS alarm, integration line is not triggered, and ACC is OFF, the tracker will go into power save mode after 5 minutes. -
Page 11: The Setting For Gprs Connection
TK108 GPS Vehicle Tracker User Manual W111111,017, W******,017,X Geo-fence Alarm 11404.0000,E,2232.0010,N, W******,117,X 11505.1234,E,2333.5678,N Remarks: 017 is for alarm when tracker moves out the preset scope; 117 is for alarm when tracker moves in. When the tracker moves in/out, it will send a SMS alarm to the authorized phone number. - Page 12 TK108 GPS Vehicle Tracker User Manual RPT: The interval for the uploading GPRS packet (Unit: sec.) SLP: The interval for uploading GPRS packet when car is parked (Engine is OFF and no vibration). (unit: sec.); RUN: GPRS connection setting. 0=close, 1=TCP, 2=UDP.
-
Page 13: Alarm Types
TK108 GPS Vehicle Tracker User Manual Default GPRS Setting The default GPRS setting is: IPN: www.51track.com COM:8500 APN: cmnet RPT: 60 seconds SLP:0 RUN:0 III. Alarm Types Vibration Alarm In arming status, if the car is vibrated, it will send out alarm SMS. -
Page 14: Installation
TK108 GPS Vehicle Tracker User Manual IV. Installation Page 13... - Page 15 TK108 GPS Vehicle Tracker User Manual Installation Notes: We strongly recommend you to ask the professional car electrician to do the installation. Please prepare a valid GSM SIM card in advance. IMPORTANT: Please do not insert or pull out the SIM card when the main unit has power.
-
Page 16: Specifications
TK108 GPS Vehicle Tracker User Manual V . Specifications Working voltage: +6.0 ~+45VDC Power Consumption: Working current: 50mA; Peak current: 800mA; Inside Backup battery: Rechargeable 3.7V 500mAh Li-ion battery 62*50*22 Size of the main unit: (mm) Weight of the main unit: 65g Working temperature: -20 ~ 85℃... -
Page 17: Maintenance
TK108 GPS Vehicle Tracker User Manual (1) Please make sure there is no metal obstacles above the tracker. Please place the side with GPS antenna upside to the sky; (2) Please check it at broad place; I can not get the correct GPS...
