Summary of Contents for Topten PT99
-
Page 1: User Manual

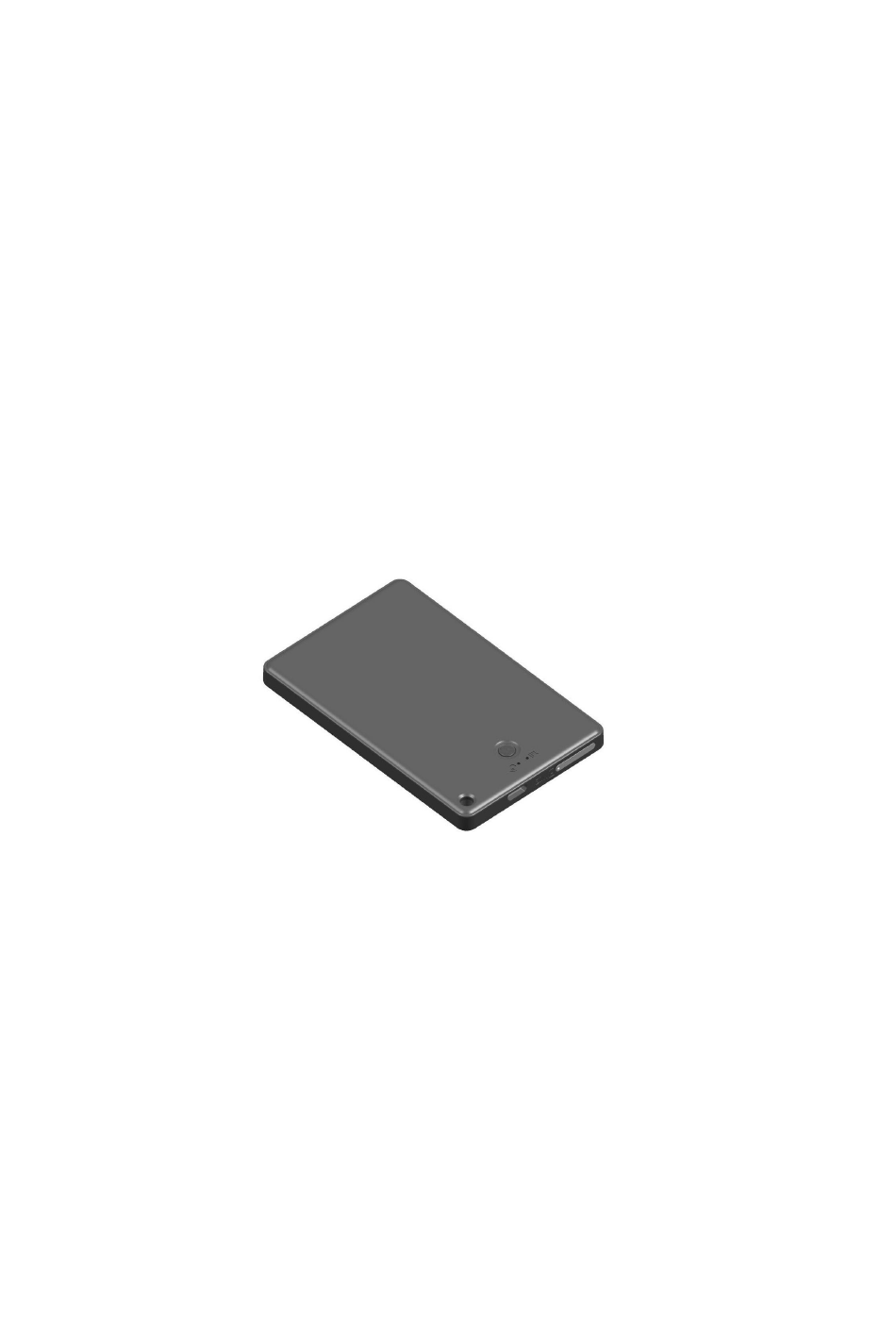

GPS Personal Tracker USER MANUAL (Model: PT99) Version 3.0 (Date: Jan 27, 2019) -
Page 2: Table Of Contents
PT99 Personal Tracker User Manual CONTENT Preface..........................2 I. Features & Functions..................... 3 II. How to Operate it......................4 Authorize the Alarm-received Phone No..............4 Arm/Disarm by Phone Calling...................4 Check the Vehicle’s Status..................5 Arm/Disarm the System by SMS................5 Check the location by Google Map’s URL..............5 Check the Real Physical Address................ -
Page 3: Preface
User Manual Preface PT99 GPS tracker is the tracking device for person or asset for anti-theft. It has four types of working mode for different applications. The device working in deep sleep mode has extreme power saving design, it can be used as personal tracker or asset tracker with long standby time. -
Page 4: Features & Functions
PT99 Personal Tracker User Manual I. Features & Functions 1. Track on command or by time interval or by clock; 2. Arm/disarm by SMS/platform or phone call; 3. Check the car’s real physical address (such as city name, street name..);... -
Page 5: How To Operate It
PT99 Personal Tracker User Manual II. How to Operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter &... -
Page 6: Check The Vehicle's Status
PT99 Personal Tracker User Manual Check the Vehicle’s Status SMS command: 111111CHK (or 111111chk) This instruction is used to inquiry the vehicle’s location & system’s status. The system will send back the SMS, includes the similar information, such as “Armed……”... -
Page 7: Check The Real Physical Address
PT99 Personal Tracker User Manual Check the Real Physical Address SMS command: 111111ADD (or 111111add) When user sends this SMS command to the tracker, the tracker will automatically send back the car’s real physical address (such as city name, street name) to your mobile by SMS.(it need server's support for address translation) . -
Page 8: Over-Speed Alert
PT99 Personal Tracker User Manual out two-way talking function. After setup, the tracker will directly pickup the incoming calling from P1,P2 & Pressing the button & hold it for 0.5~2 seconds, when the red LED turns on, it will call the 3 phone numbers in turns. -
Page 9: Settings In Deep Sleep Mode
PT99 Personal Tracker User Manual Power off GSM module & GPS Deep sleep mode 111111PWR:3 module, long standby time. Only 3~20uA (default) track by clock settings IMPORTANT: The tracker has no power switch, it is set in deep sleep mode (111111PWR:3) in default. -
Page 10: Other Sms Command List
PT99 Personal Tracker User Manual Track by time interval: SMS command: 111111CLK:X X=11~65535 minutes (If X<=10, it is invalid) E.g.: 111111CLK:15 , the device will report the data to platform every 15 minutes. Disable tracking in deep sleep mode;... -
Page 11: The Setting For Gprs Connection
IDN: The tracker’s ID, it is the last 14 digits of IMEI which can't be changed. Example, if server is: www.topten-track.com, TCP port is 8500, APN is web.gprs,mtnnigeria.net, apn user:web, apn password: web, time interval is 60 seconds, Then the command is: 111111WWW:IPN:www.51track.com;COM:8500;APN:web.gprs.mtnnigeria.net,... -
Page 12: Alarm Types
PT99 Personal Tracker User Manual Example: 111111WWW:IPN:www.51track.com;COM:8500; 111111WWW:APN:X; This is to set the APN (access point name). Please use “,” to separate the APN, APN username & APN password. Example: 111111WWW：APN：web.gprs.mtnnigeria.net,web,web； 111111WWW:RPT:X; This is to set the upload time interval. The unit is second, the minimum value is 10 seconds. -
Page 13: Hardware Usage
PT99 Personal Tracker User Manual SOS Alarm In any condition, if the SOS button is pressed & hold for 3 seconds, the red & blue LED turn on, it will trigger the SOS alarm. V. Hardware Usage LED behavior: GPS LED(Blue color):... -
Page 14: Specifications
PT99 Personal Tracker User Manual Valid GPS signal --------> flash once every 3 seconds. Invalid GPS signal --------> Off. GSM LED(Red color): Valid GSM signal --------> flash once every 3 seconds Invalid GSM signal --------> flash slowly. Receive SMS/GPRS command: GSM LED turn on for 1 second. -
Page 15: Faqs & Troubleshooting
PT99 Personal Tracker User Manual VII. FAQs & Troubleshooting Troubleshooting (1) The GSM SIM card has no credit; (2) The SIM card is protected by PIN code; I call the tracker, it does not ring (3) Please power up correclty;... -
Page 16: Fcc Statement
FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
