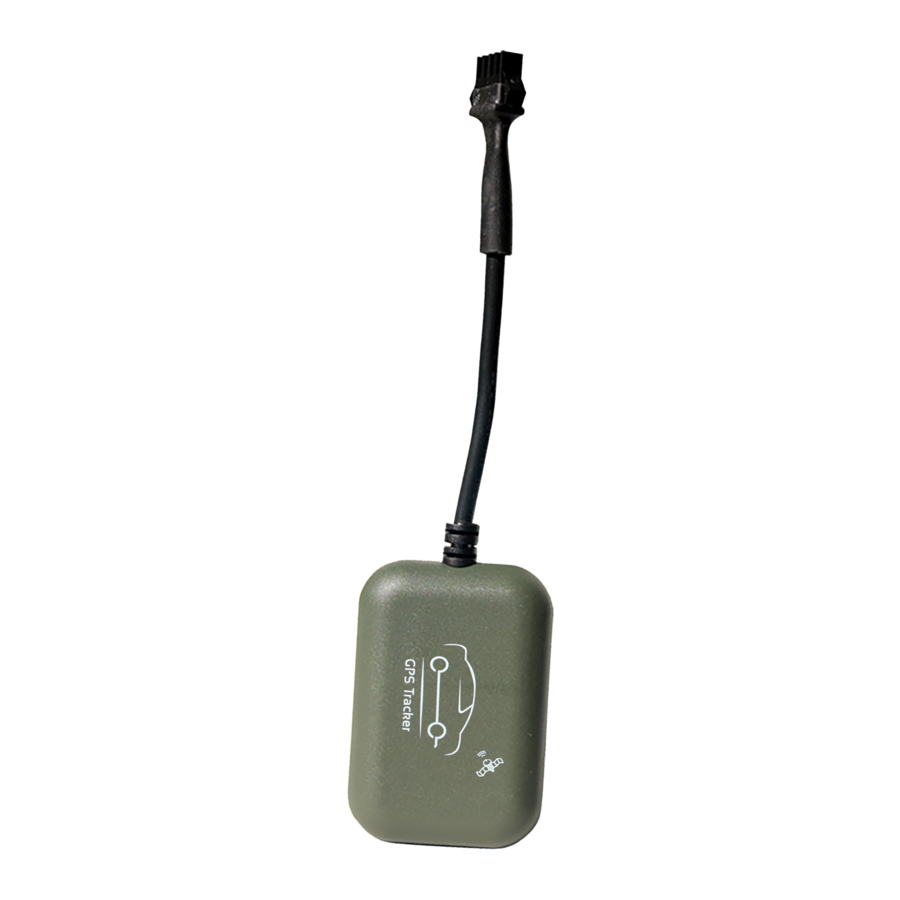

- Page 1 GPS Motorcycle/Vehicle Tracker USER MANUAL (Model:MT05S) Version 1.0 (Date: July 30, 2020)
-
Page 2: Table Of Contents
MT05S GPS Motorcycle/Vehicle Tracker User Manual CONTENT Preface..........................2 I. Features & Functions..................... 3 II. How to Operate it......................4 Authorize the Alarm-received Phone No..................4 Arm/Disarm by Phone Calling....................... 4 Check the Vehicle’s Status......................5 Arm/Disarm the System by SMS....................5 Check the location by Google Map’s URL.................. -
Page 3: Preface
MT05S GPS Motorcycle/Vehicle Tracker User Manual Preface MT05S GPS Motorcycle/vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially used for motorcycle/car tracking because of its compact size and water-proof design. Read it Firstly: Please read this manual thoroughly before you use the device; please keep it for future reference. -
Page 4: Features & Functions
MT05S GPS Motorcycle/Vehicle Tracker User Manual I. Features & Functions 1. Track on command or by time interval via SMS/GPRS; 2. Arm/disarm by SMS or phone call. 3. Check the car’s real physical address (such as city name, street name.);... -
Page 5: How To Operate It
MT05S GPS Motorcycle/Vehicle Tracker User Manual II. How to operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter &... -
Page 6: Check The Vehicle's Status
MT05S GPS Motorcycle/Vehicle Tracker User Manual Check the Vehicle’s Status SMS command: 111111CHK (or 111111chk) This instruction is used to inquiry the vehicle’s location & system’s status. The system will send back the SMS, includes the similar information, such as “Armed……”... -
Page 7: Check The Real Physical Address
MT05S GPS Motorcycle/Vehicle Tracker User Manual It is used to restore the car to normal status after being stopped. Check the Real Physical Address SMS command: 111111ADD (or 111111add) User can program the tracker to work with our platform. Once connected, user can send this SMS command to get the actual address which is translated by the platform.. -
Page 8: Power Save Mode
NAM: The name of upgrade file AUT: auto updates setting. 0=close, 1= auto update. Example, if server IP address is: 103.56.17.22, User name is topten, Password is 111111, upgrade file is upgrade418.bin, AUT is close, then the command is: 111111FTP:IPN:103.56.17.22;USE:topten;PWD:111111;NAM:upgrade108.bin;A... -
Page 9: Other Sms Command List
MT05S GPS Motorcycle/Vehicle Tracker User Manual 1(default) GPS on when ACC is on Close GPRS connection, GPS module After setting 111111PWR:2, if there is no vibration and ACC is turned OFF, the tracker will go into power save mode after 5 minutes. - Page 10 MT05S GPS Motorcycle/Vehicle Tracker User Manual Routine Optimization ******DEG:X 111111DEG:30 It is to set the angle. When the car turns a corner over this angle, then it will sample a location to optimize the routine. Check Vehicle battery ******ADC:X 111111ADC: It will reply the voltage of external power battery.
-
Page 11: The Setting For Gprs Connection
MT05S GPS Motorcycle/Vehicle Tracker User Manual III. The Setting for GPRS Connection The GPRS setting is necessary for using the following 2 functions: (1) Check the car’s real physical address by send 111111ADD (2) Online tracking service by web-based tracking platform SMS format: 111111WWW:IPN:X;COM:X;APN:apn,user,password;RPT:X;SLP:X;RUN:X;... -
Page 12: Specifications
MT05S GPS Motorcycle/Vehicle Tracker User Manual 111111WWW:RPT:X; This is to set the upload time interval. The unit is second, the minimum value is 10 seconds. The default setting is 60 Example: 111111WWW:RPT:60;SLP:300；(Upload time interval: Engine ON: 60s, Engine OFF: 300seconds) ... -
Page 13: Alarm Types
At any time, if the vehicle turns over more than 60 degree last 16 second, it will send out the alarm. Acceleration & Deceleration (Crash) Alarm At any time, if the vehicle speeds up suddenly or harsh brake, it will trigger the event alarm VI. Installation The Wiring diagram of MT05S Page 12... - Page 14 MT05S GPS Motorcycle/Vehicle Tracker User Manual Page 13...
-
Page 15: Faqs & Troubleshooting
MT05S GPS Motorcycle/Vehicle Tracker User Manual Installation Steps: (1) Please read the manual carefully before installation. Please prepare a valid GSM SIM card with Caller ID Display & GPRS function; (2) Please use screw driver to open the cover of the box;... -
Page 16: Maintenance
MT05S GPS Motorcycle/Vehicle Tracker User Manual in correct format; (3) The mailbox of the user’s mobile is full; (1) Please make sure there is no metal obstacles above the tracker. Please place the side with GPS antenna upside to the sky;...
