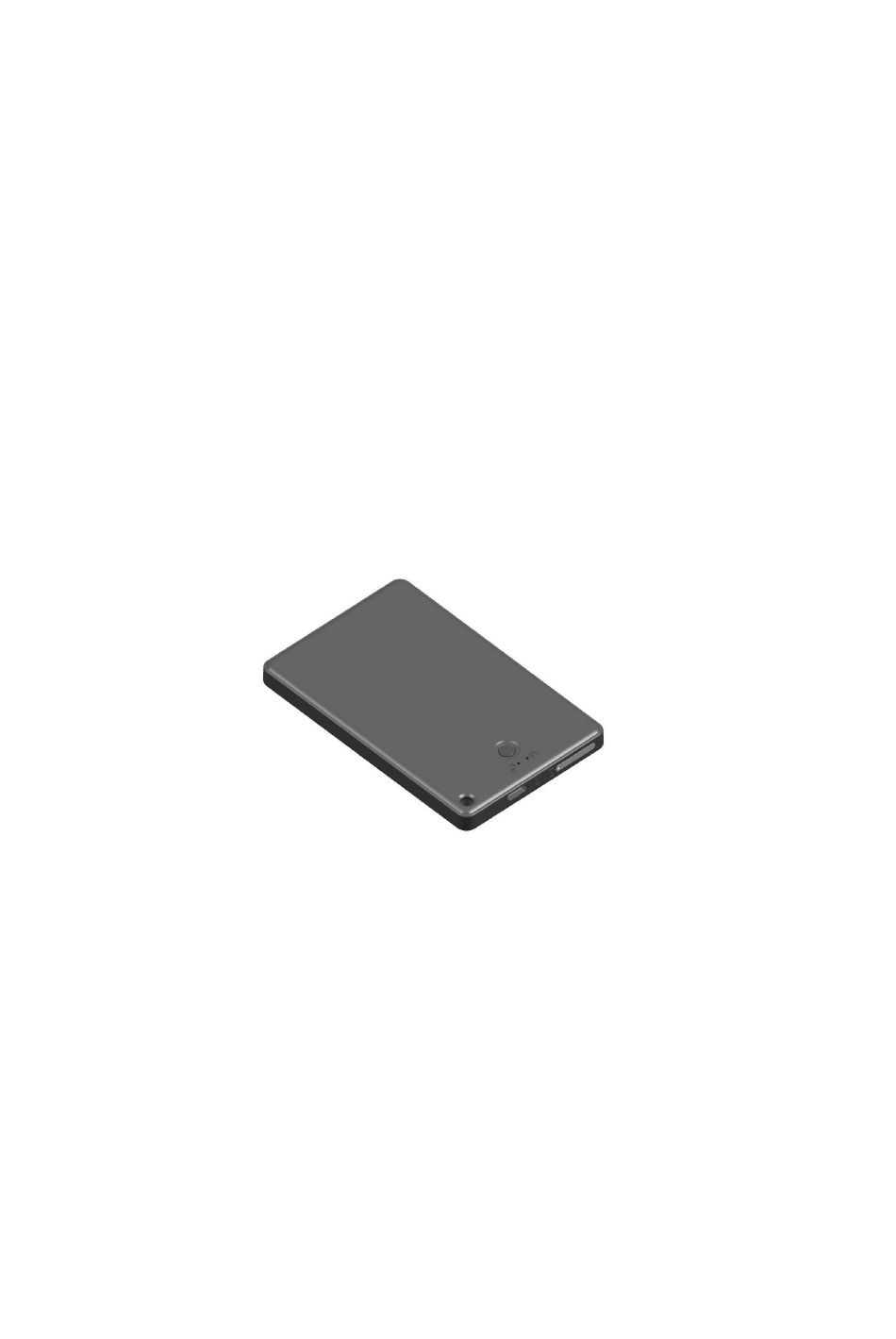

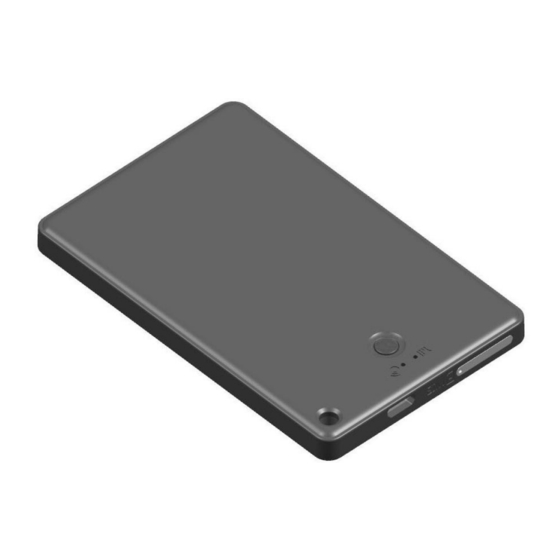

- Page 1 GPS Personal Tracker USER MANUAL (Model: PT99) Version 3.0 (Date: Jan 27, 2019)
-
Page 2: Table Of Contents
PT99 Personal Tracker User Manual CONTENT Preface..........................2 I. Features & Functions..................... 3 II. How to Operate it......................4 Authorize the Alarm-received Phone No..............4 Arm/Disarm by Phone Calling...................4 Check the Vehicle’s Status..................5 Arm/Disarm the System by SMS................5 Check the location by Google Map’s URL..............5 Check the Real Physical Address................ -
Page 3: Preface
PT99 Personal Tracker User Manual Preface PT99 GPS tracker is the tracking device for person or asset for anti-theft. It has four types of working mode for different applications. The device working in deep sleep mode has extreme power saving design, it can be used as personal tracker or asset tracker with long standby time. -
Page 4: Features & Functions
PT99 Personal Tracker User Manual I. Features & Functions 1. Track on command or by time interval or by clock; 2. Arm/disarm by SMS/platform or phone call; 3. Check the car’s real physical address (such as city name, street name..); 4. -
Page 5: How To Operate It
PT99 Personal Tracker User Manual II. How to Operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter &... -
Page 6: Check The Vehicle's Status
PT99 Personal Tracker User Manual Check the Vehicle’s Status SMS command: 111111CHK (or 111111chk) This instruction is used to inquiry the vehicle’s location & system’s status. The system will send back the SMS, includes the similar information, such as “Armed……” User could also use the 2nd alarm-received mobile phone to call the tracker’s SIM card number, the tracker will hand up the calling &... -
Page 7: Check The Real Physical Address
PT99 Personal Tracker User Manual Check the Real Physical Address SMS command: 111111ADD (or 111111add) When user sends this SMS command to the tracker, the tracker will automatically send back the car’s real physical address (such as city name, street name) to your mobile by SMS.(it need server's support for address translation) . -
Page 8: Over-Speed Alert
PT99 Personal Tracker User Manual out two-way talking function. After setup, the tracker will directly pickup the incoming calling from P1,P2 & Pressing the button & hold it for 0.5~2 seconds, when the red LED turns on, it will call the 3 phone numbers in turns. During conversation, press the button again to hand up;... -
Page 9: Settings In Deep Sleep Mode
PT99 Personal Tracker User Manual Power off GSM module & GPS Deep sleep mode 111111PWR:3 module, long standby time. Only 3~20uA (default) track by clock settings IMPORTANT: The tracker has no power switch, it is set in deep sleep mode (111111PWR:3) in default. -
Page 10: Other Sms Command List
PT99 Personal Tracker User Manual Track by time interval: SMS command: 111111CLK:X X=11~65535 minutes (If X<=10, it is invalid) E.g.: 111111CLK:15 , the device will report the data to platform every 15 minutes. Disable tracking in deep sleep mode; SMS command: 111111CLK:0 If X=0,device will not automatically report to platform in deep safe mode by time or time interval;... -
Page 11: The Setting For Gprs Connection
IDN: The tracker’s ID, it is the last 14 digits of IMEI which can't be changed. Example, if server is: www.topten-track.com, TCP port is 8500, APN is web.gprs,mtnnigeria.net, apn user:web, apn password: web, time interval is 60 seconds, Then the command is: 111111WWW:IPN:www.51track.com;COM:8500;APN:web.gprs.mtnnigeria.net,... -
Page 12: Alarm Types
Eg: 111111WWW：RUN：1； (Open the TCP connection) 111111WWW: You can send 111111WWW: to check the GPRS settings. Default GPRS Setting The default GPRS setting is: IPN: www.topten-track.com COM:8500 APN: cmnet RPT: 30 seconds SLP:180 RUN:1 VI. Alarm Types Vibration Alarm In arming status, if the car is vibrated, it will send out alarm SMS. -
Page 13: Hardware Usage
PT99 Personal Tracker User Manual SOS Alarm In any condition, if the SOS button is pressed & hold for 3 seconds, the red & blue LED turn on, it will trigger the SOS alarm. V. Hardware Usage LED behavior: GPS LED(Blue color): Page 12... -
Page 14: Specifications
PT99 Personal Tracker User Manual Valid GPS signal --------> flash once every 3 seconds. Invalid GPS signal --------> Off. GSM LED(Red color): Valid GSM signal --------> flash once every 3 seconds Invalid GSM signal --------> flash slowly. Receive SMS/GPRS command: GSM LED turn on for 1 second. -
Page 15: Faqs & Troubleshooting
PT99 Personal Tracker User Manual VII. FAQs & Troubleshooting Troubleshooting (1) The GSM SIM card has no credit; (2) The SIM card is protected by PIN code; I call the tracker, it does not ring (3) Please power up correclty; (4) The SIM card is placed correctly in the slot;...
