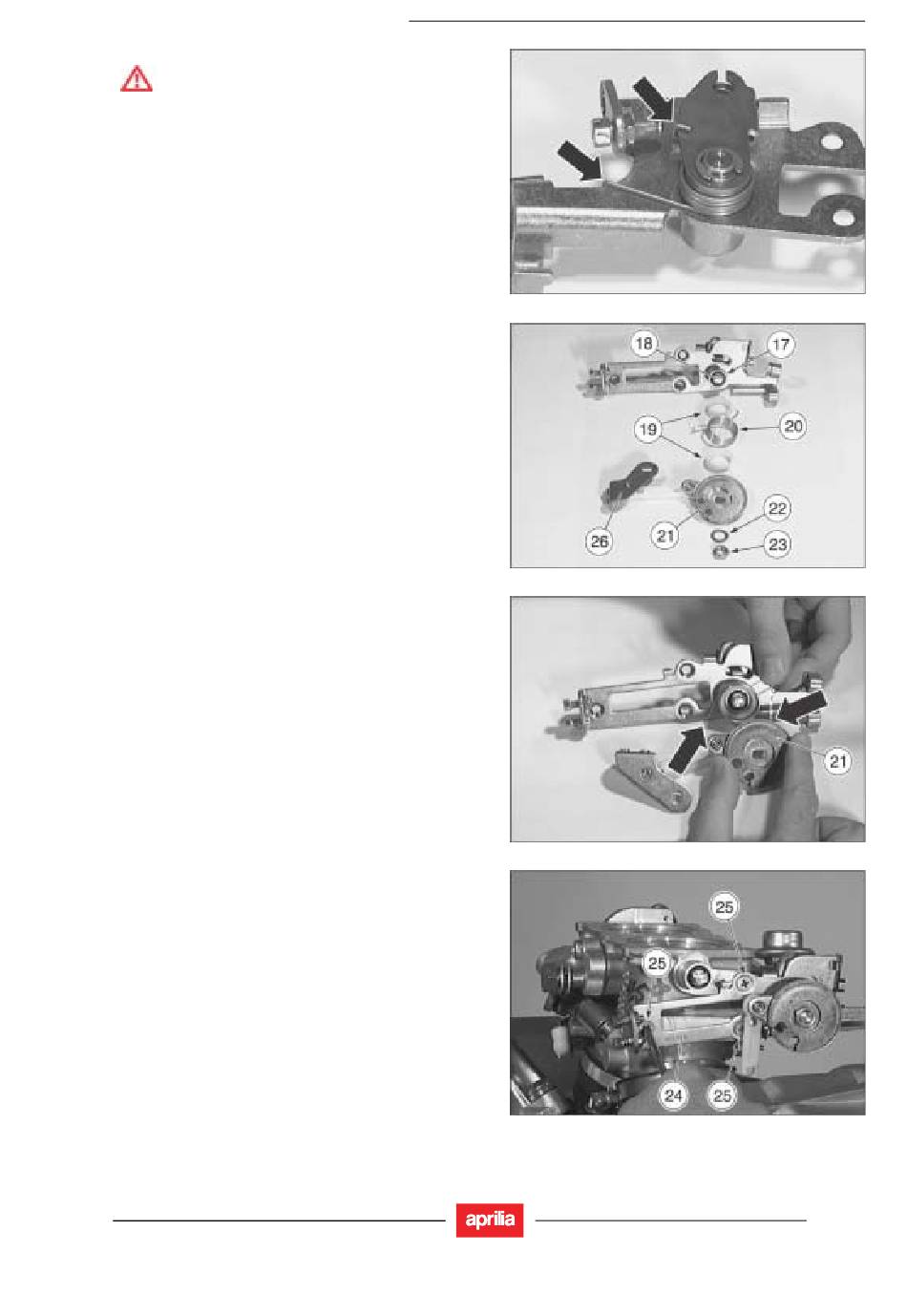

CAUTION
Make sure that the ends of the torsion spring
(20) are hooked onto the throttle cable support
bracket and pulley (21).
NOTE Spray a temporary lubricant on the spring (20), see
1.9.2 (USE OF CONSUMABLES).
•
Fit the spring washer (22).
®
NOTE Apply LOCTITE 243 on the thread of the nut (23).
•
Screw the M8x1 nut (23) and tighten it.
®
NOTE Apply LOCTITE 243 on the thread of the screws
(25).
• Fasten the anchoring bracket of the accelerator cables
(24) with the three hex-head screws M5x12 (25).
•
Fit the throttle valve control lever (26).
