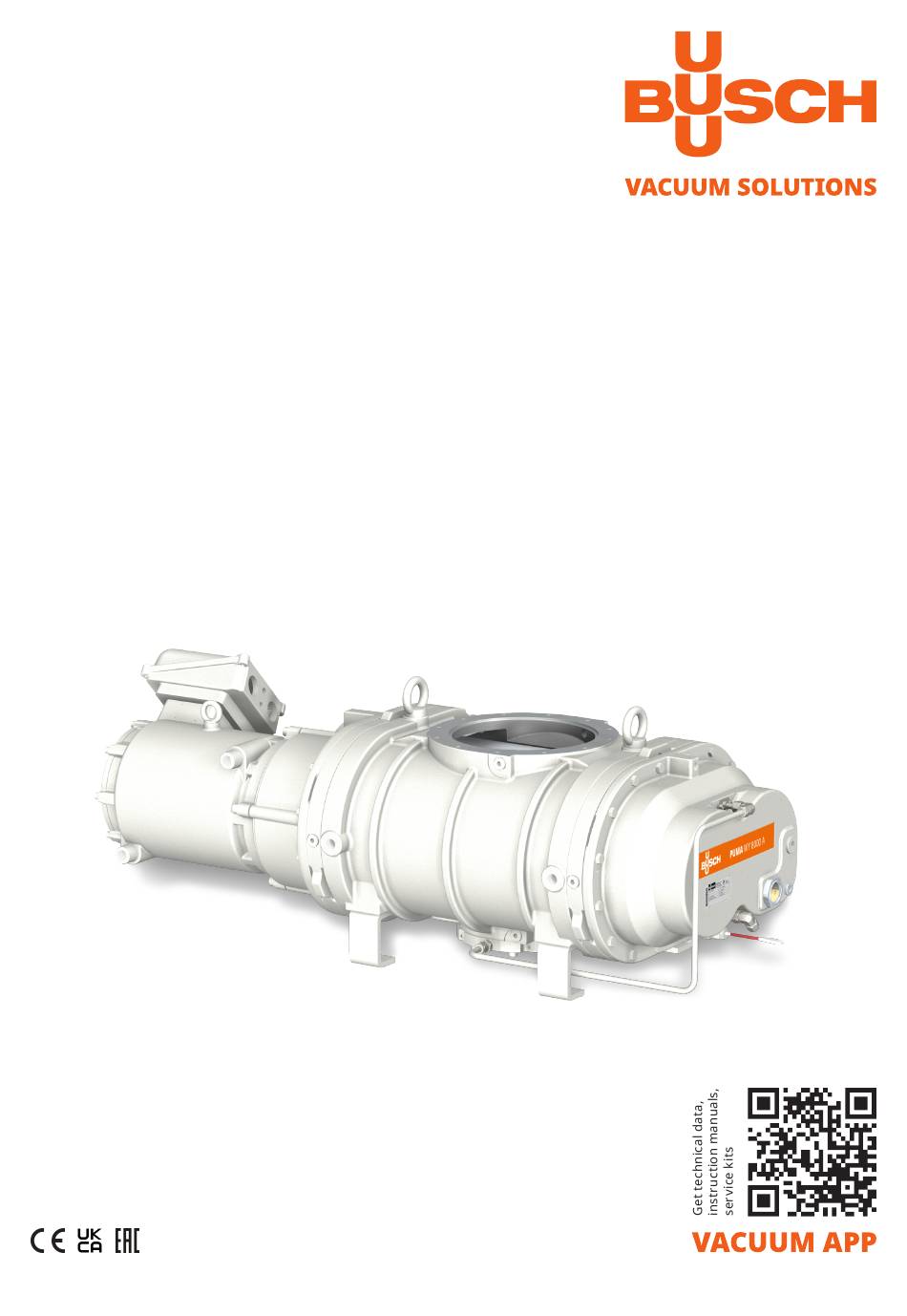

- Page 1 PUMA Vacuum Boosters WY 8000 A Instruction Manual 0870224356 | -0003_en-US | Original instructions 8/10/2022...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Intended Use ............................... Standard Features............................... 2.3.1 Water Cooling............................2.3.2 Resistance Thermometer (TSA) ......................Transport ................................Storage .................................. Installation ................................Installation Conditions............................Connecting Lines / Pipes ............................ 5.2.1 Suction Connection.......................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description CWI 1 CWO 1 CWO 2 CWI 2 Description Base frame Barrier gas connection CWI 1 Cooling water inlet (motor) CWI 2 Cooling water inlet (pump) CWO 1 Cooling water outlet (motor) CWO 2 Cooling water outlet (pump) Eyebolt Suction connection... -
Page 5: Operating Principle
This machine is not intended for load lock application. Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. -
Page 6: Standard Features
● Check if the process gases are compatible with those following materials: - Cast iron - Steel - Aluminium - Epoxy resin - Fluoroelastomer (FKM/FPM) ● In doubt, please contact your Busch representative. Standard Features 2.3.1 Water Cooling The machine is driven by a water-cooled motor. 2.3.2 Resistance Thermometer (TSA) The resistance thermometer monitors the oil temperature of the machine. -
Page 7: Transport
Transport | 3 Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. NOTICE In case the machine is already filled with oil. Tilting a machine that is already filled with oil can cause large quantities of oil to ingress into the cylinder. -
Page 8: Storage
4 | Storage Storage ● Seal all apertures with adhesive tape or reuse provided caps. ● Make sure that the cooling water has been completely removed, see Decommissioning [➔ 27]. If the machine is to be stored for more than 3 months: ●... -
Page 9: Installation
● Make sure that the environment of the machine is not potentially explosive. ● Make sure that the ambient conditions comply with the Technical Data [➔ 31]. ● Make sure to use a suitable backing pump, if necessary seek advice from your Busch representa- tive ●... -
Page 10: Suction Connection
5 | Installation 5.2.1 Suction Connection WARNING Unprotected suction connection. Risk of severe injury! ● Do not put hand or fingers in the suction connection. NOTICE Ingress of foreign objects or liquids. Risk of damage to the machine! If the inlet gas contains dust or other foreign solid particles: ●... -
Page 11: Cooling Water Connection
Installation | 5 5.2.3 Cooling Water Connection CWI 1 CWO 1 CWO 2 CWI 2 Description CWI 1 Cooling water inlet (motor) CWO 1 Cooling water outlet (motor) CWI 2 Cooling water inlet (pump) CWO 2 Cooling water outlet (pump) The cooling connections for the motor and the module must be connected in series. -
Page 12: Filling Oil
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 31] and Oil [➔ 33]. 12 | 36... - Page 13 __ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Instruction Manual PUMA WY 8000 A_EN_en 13 | 36...
-
Page 14: Electrical Connection
● Make sure that the motor of the machine will not be affected by electric or electro- magnetic dis- turbance from the mains, if necessary seek advice from Busch. ● Make sure that the EMC of the machine is compliant with the requirements of your supply net- work system, if necessary provide further interference suppression (EMC of the machine, see EU Declaration of Conformity [➔ 34] or UK Declaration of Conformity [➔ 35]). -
Page 15: Wiring Diagram Three-Phase Motor
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. - Page 16 6 | Electrical Connection Motor connectors: Connection of motor temperature switches (recommended): MTS1 MTS2 MTS3 Control voltage: ≤ 250 V Max current: 1.6 A MTS = Motor temperature switch (in motor coil) Double star connection (low voltage): Star connection (high voltage): 16 | 36 Instruction Manual PUMA WY 8000 A_EN_en...
-
Page 17: Commissioning
Commissioning | 7 Commissioning CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. Risk of burns! ● Avoid contact with the machine during and directly after operation. CAUTION Noise of running machine. Risk of damage to hearing! If persons are present in the vicinity of a non noise insulated machine over extended periods: ●... -
Page 18: Compression Chamber Flushing
7 | Commissioning Compression Chamber Flushing Depending on the process type (very demanding application), flushing through the compression chamber (cylinder + lobes) might need to be performed. Seek advice from your Busch representa- tive. NOTICE Flushing without barrier gas. Risk of damage to the machine! ●... - Page 19 Commissioning | 7 When the flushing is finished: ● Close the gas supply. ● Dry the machine of flushing fluid. Do not operate the machine in normal operating conditions with the barrier gas opened. It might af- fect the ultimate pressure and the suction capacity. Instruction Manual PUMA WY 8000 A_EN_en 19 | 36...
-
Page 20: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 21: Maintenance Schedule
● Change the oil of the gear and bearing housings (both sides) ● Clean the magnetic plugs (MP) Every 16000 hours or after 4 ● Have a major overhaul on the machine (contact Busch). years Oil Level Inspection ● Shut down the machine. -
Page 22: Oil Change
If the oil becomes dark or looks different from the initial color: ● Change the oil immediately, see Oil Change [➔ 22]. You can consult your Busch representative in order to find out why this color change has occurred. Oil Change NOTICE Use of an inappropriate oil. - Page 23 Maintenance | 8 For oil type and oil capacity see Technical Data [➔ 31] and Oil [➔ 33]. Instruction Manual PUMA WY 8000 A_EN_en 23 | 36...
- Page 24 8 | Maintenance 24 | 36 Instruction Manual PUMA WY 8000 A_EN_en...
- Page 25 __ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: ● Order it from your Busch representative. Instruction Manual PUMA WY 8000 A_EN_en 25 | 36...
-
Page 26: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 27: Decommissioning
Decommissioning | 10 Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 28: Spare Parts
● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. There is no standard spare parts kits available for this product, if you require Busch genuine parts: ● Contact your Busch representative. -
Page 29: Troubleshooting
Solid foreign matter has en- ● Remove the solid foreign tered the machine. matter or repair the ma- chine (contact Busch). ● Equip the machine with a mesh screen at the suction connection. The temperature switch (TS) ● Let the machine cool down. - Page 30 Oil Change [➔ 22]. The machine runs too hot. ● See problem "The machine runs too hot". For the solution of problems not mentioned in the troubleshooting chart contact your Busch repre- sentative. 30 | 36 Instruction Manual PUMA WY 8000 A_EN_en...
-
Page 31: Technical Data
Technical Data | 13 Technical Data WY 8000 A 90 Hz* Pumping speed m³/h 8100 Nominal motor rating Nominal motor speed 5400 Nominal motor current 38 (200V) (double star connection) Nominal motor current 18.9 (400V) (star connection) Sound pressure level**... -
Page 32: Maximum Permissible Differential Pressures
14 | Maximum Permissible Differential Pressures Maximum Permissible Differential Pressures WY 8000 A 90 Hz* Blower nominal suction capacity 8100 Backing pump nominal suction capacity ≥ 2500 ≥ 600 Delta P max. in continuous operation Delta P max. in 50% duty * with variable-frequency drive, max. -
Page 33: Oil
Oil | 15 YLC 250 B Part number 0.5 L packaging (~1 kg) 0831 131 400 Part number 1.0 L packaging (~2 kg) 0831 108 878 Part number 5.0 L packaging (~10 kg) 0831 108 879 To know which oil has been filled in the machine, please refer to the nameplate (NP). Instruction Manual PUMA WY 8000 A_EN_en 33 | 36... -
Page 34: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 35: Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 36 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
