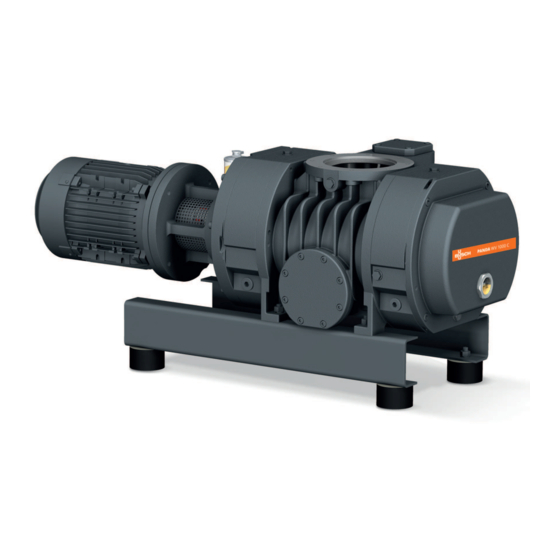

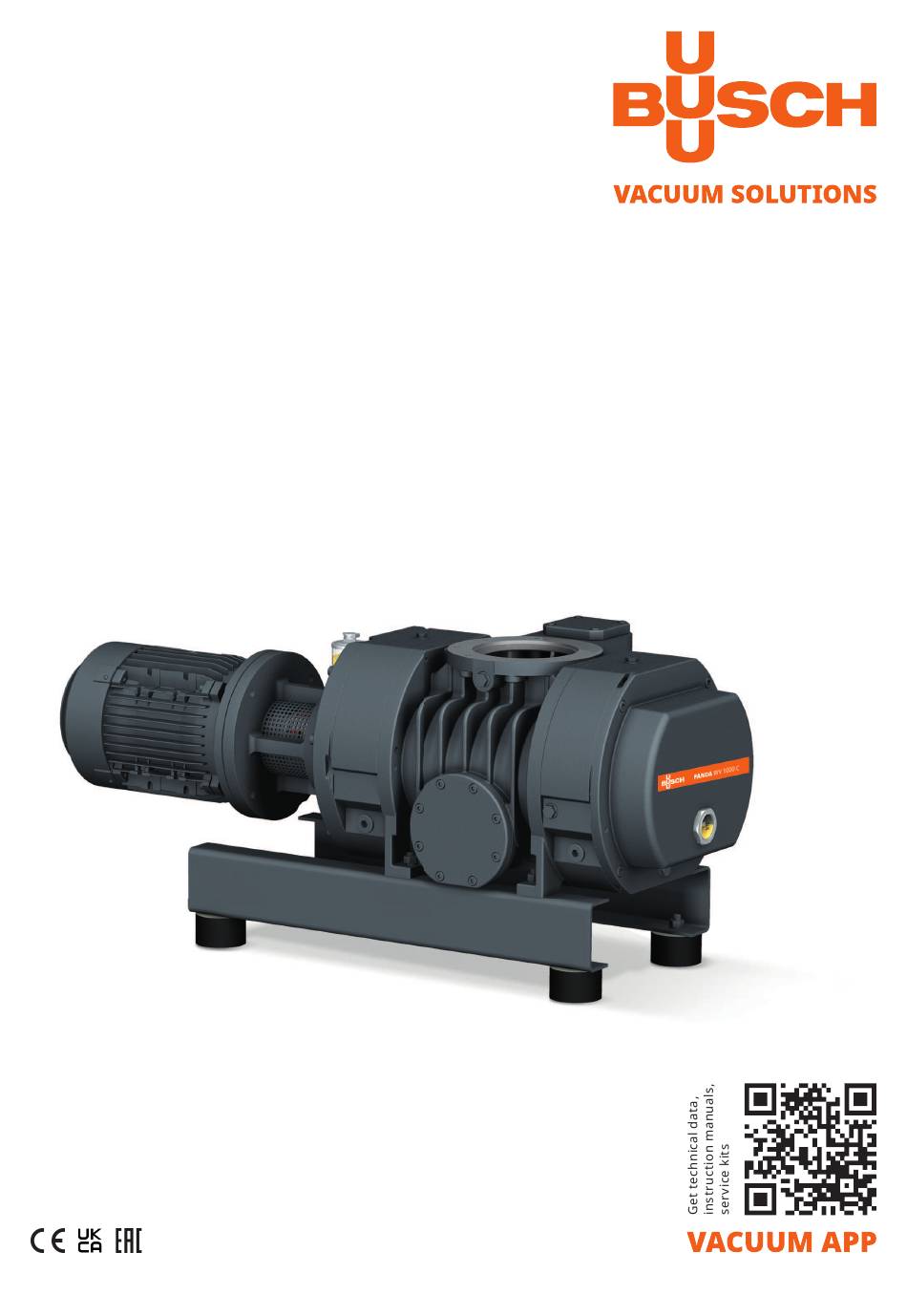

- Page 1 Instruction Manual Panda Vacuum Booster WV 0250 C, WV 0500 C, WV 1000 C, WV 1500 C, WV 2000 C 0870559556/A0008_en / Original instructions / Modifications reserved 15/09/2021...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Operating Principle ......................5 2.2 Application........................5 3 Transport ..........................6 4 Storage .............................7 5 Installation..........................7 5.1 Installation Conditions ...................... 7 5.2 Connecting Lines / Pipes ....................8 5.2.1 Gas Flow Variants.................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description ODP, MP OUT2 OUT1 ODP, MP Suction connection Motor terminal box Discharge connection OUT2 Lateral discharge connection (Optional) Magnetic plug Oil fill plug Nameplate Oil sight glass Bypass valve Oil drain plug Oiler (with lip seals only) Barrier gas connection NOTE Technical term. -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The vacuum booster is used in combination with a backing pump in vacuum system. -
Page 6: Transport
3 | Transport Transport WARNING Suspended load. Risk of severe injury! • Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! • Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. -
Page 7: Storage
• Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [► 22]. • Make sure to use a suitable backing pump, if necessary seek advice from your Busch representative •... -
Page 8: Connecting Lines / Pipes
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Gas Flow Variants... -
Page 9: Filling Oil
Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 22] and Oil [► 22]. Oil filling at the motor side... -
Page 10: Electrical Connection
__ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: • Order it from your Busch representative. 5.4 Electrical Connection DANGER Live wires. Risk of electrical shock. -
Page 11: Wiring Diagram Three-Phase Motor
• Provide an overload protection according to EN 60204-1 for the motor. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. -
Page 12: Commissioning
6 | Commissioning Double star connection, multi-voltage Star connection, multi-voltage motor motor with 12 pins (low voltage): with 12 pins (high voltage): Delta connection, multi-voltage motor with 12 pins (middle voltage): Commissioning CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. -
Page 13: Compression Chamber Flushing
6.1 Compression Chamber Flushing Depending on the process type (very demanding application), flushing through the com- pression chamber (cylinder + lobes) might need to be performed. Seek advice from your Busch representative. NOTICE Flushing without barrier gas. Risk of damage to the machine! •... -
Page 14: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure. -
Page 15: Maintenance Schedule
If the oil becomes dark or looks different from the initial colour: • Change the oil immediately, see Oil Change [► 16]. • See Oil Change [► 16]. You can consult your Busch representative in order to find out why this colour change has occurred. Instruction Manual PANDA WV 0250-2000 C_EN_en... -
Page 16: Oil Change
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. Oil draining at the motor side Cleaning cloth Drain pan 16 / 24... - Page 17 Maintenance | 7 Oil draining at the gear side Drain pan Cleaning cloth For oil type and oil capacity see Technical Data [► 22] and Oil [► 22]. Oil filling at the motor side Fill up until the oiler (OR) is at least two thirds full Check oil level (with lip seals only)
-
Page 18: Overhaul
__ / __ / ____ Oil type see nameplate Change interval see instruction manual If there is no sticker (part no. 0565 568 959) on the machine: • Order it from your Busch representative. Overhaul WARNING Machines contaminated with hazardous material. Risk of poisoning! -
Page 19: Decommissioning
• The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. There is no standard spare parts kits available for this product, if you require Busch gen- uine parts: •... -
Page 20: Troubleshooting
Busch). Solid foreign matter has en- • Remove the solid foreign tered the machine. matter or repair the ma- chine (contact Busch). • Equip the machine with a mesh screen at the suc- tion connection. The motor is defective. • Replace the motor. - Page 21 Technical Data [► 22]. Oil level too low. • Top up oil. The backing pump is not • Contact Busch. correctly defined. The oil is black. Oil change intervals are too • Drain the oil and fill in long.
-
Page 22: Technical Data
12 | Technical Data 12 Technical Data WV 0250 C WV 0500 C WV 1000 C WV 1500 C WV 2000 C Nominal pumping speed m³/h 250 / 300 500 / 600 1000 / 1200 1500 / 1800 2000 / 2400 (50Hz / 60Hz) Nominal motor rating 1.1 / 1.2... -
Page 23: Eu Declaration Of Conformity
Ateliers Busch S.A. Zone Industrielle CH-2906 Chevenez declares that the machine(s): PANDA WV 0250 C; WV 0500 C; WV 1000 C; WV 1500 C; WV 2000 C has (have) been manufactured in accordance with the European Directives: – ‘Machinery’ 2006/42/EC –... - Page 24 Busch Vacuum Solutions We shape vacuum for you. Argentina Denmark Malaysia South Africa info@busch.com.ar info@busch.dk busch@busch.com.my info@busch.co.za Australia Finland Mexico Spain sales@busch.com.au info@busch.fi info@busch.com.mx contacto@buschiberica.es Austria France Netherlands Sweden busch@busch.at busch@busch.fr info@busch.nl info@busch.se Bangladesh Germany New Zealand Switzerland sales@busch.com.bd info@busch.de sales@busch.co.nz...
