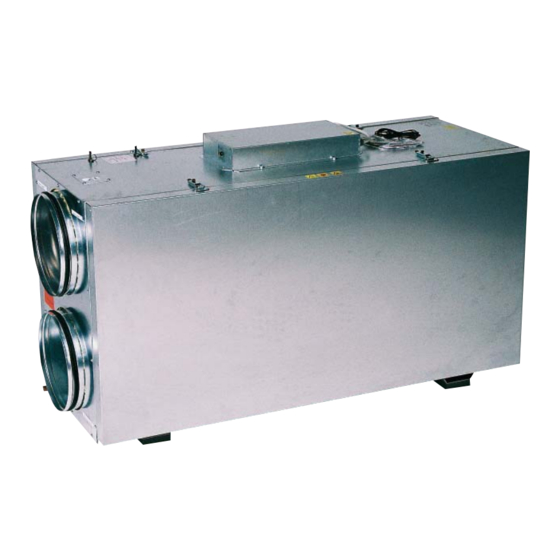

- Page 1 94122E-05 2005-10 FLEXIT L4 X/TT L7 X/TT User Manual Air Handling Unit Loft Models with Heat Recovery...
-
Page 2: Table Of Contents
4 Troubleshooting .................5 5 Cleaning - Maintenance ............5 6 Overview Drawings ..............7 6.1 Overview Drawing, L4 X/L4 X TT ........7 6.2 Overview Drawing, L7 X/L7 X TT ........7 7 Technical Data ................8 7.1 Technical Data, L4 X/L4 X TT .........8 7.2 Technical Data, L7 X/L7 X TT .........8... -
Page 3: Important Safety Instructions
Troublesome thermostat 1 Important Safety Instructions System Drawing To reduce the risk of fi re, electric shock or injury, read all the safety F11 F21 Outdoor air instructions and warning texts Extract air HR-X before using the unit. • This unit is only designed to handle F10 F20 ventilation air in buildings. -
Page 4: Operation - Control
3 Operation - Control The speed of the fans in the unit is controlled from a separately mounted SP30 control switch. Depending on the operating Green situation, the fan speed is set to the desired Yellow level. MIN stage: Used when less ventilation than normal is required. -
Page 5: Troubleshooting
4 Troubleshooting FAULT DO THE FOLLOWING • Check that the power plug is correctly inserted in the power point. If the fans are not working or cannot be • Check that the fuses in the electrical cabinet are switched on. adjusted •... - Page 6 It is recommended that you order a fi lter subscription to ensure full benefi t from the system and the cheapest prices. Order no. for a complete set of fi lters: L4 X/TT- 12318, L7 X/TT - 12313 Position of the troublesome thermostat Loft model fi...
-
Page 7: Overview Drawings
6 Overview Drawings 6.1 Overview Drawing, L4 X/L4 X TT Item Part Outdoor G3 extract air fi lter Extract air G3 + F7 supply air fi lter Thermoguard Heating adjustment Preheater Heating battery Overheating thermostat, preheating Overheating thermostat, heating Supply air fan... -
Page 8: Technical Data
7 Technical Data 7.1 Technical Data, L4 X/L4 X TT L4 X L4 TT X TT Rated voltage 230 V/50 Hz 230 V/50 Hz Fuse 10 A 10 A Rated current, total 8.7 A 8.7 A Rated power, total 1980 W... -
Page 9: Physical Dimensions
8 Physical Dimensions 8.1 Dimensioned Drawings, L4 X/L4 X TT All dimensions in mm 8.2 Dimensioned Drawings, L7 X/L7 X TT All dimensions in mm... -
Page 10: Unit Adjustment Options
(as shown on page 2) can be switched over to the specifi ed voltage level. Extract air Supply air L4 X / L7 X: The automatic control compartment is on the top of the unit. Factory setting 150 V 170 V 9.2 Control Card Adjustment Options... -
Page 11: Ce Declaration Of Conformity
73/23/EEC Low-voltage Directive (LVD) NEK EN 60335-1 :94 + A11:95 + A1:96 + A1:96 + A12:96 54014:93, EN 61000-3-2/-3:95, EN 55014-2:97 Manufacturer: FLEXIT AS, Televeien 15, N-1870 Ørje Equipment group: Ventilation units for installation in ducts Type: VG 400: 1997... - Page 12 Flexit AS, Televeien 15, N-1870 Ørje www.flexit.no...
