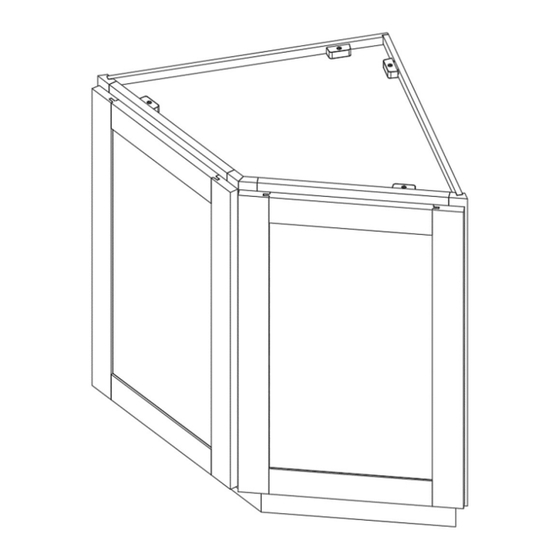

- Page 1 ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Angle Base Cabinets ITEM# AB124 Page 1...
- Page 2 ►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures. Failure to adhere to the following instructions will invalidate the warranty and Cabinets To Go will decline any responsibility for any damages caused. Any installation which does not correspond to the instructions may result in defects, malfunctioning parts, significant damage and/or injury. Before the assembly begins, check that all appropriate and required plumbing and electrical connections exist. Before drilling, make absolutely sure that there are no pipes (gas, water,electricity, heating, etc.) at the drilling location. Cabinets To Go will not be held responsible for failure to follow these instructions. PRIOR TO ASSEMBLY, PLEASE MAKE SURE YOU HAVE ONE FACE FRAME BOX AND ONE CARCASS BOX, WHICH HAVE ALL THE PARTS IN THE QUANTITIES MENTIONED BELOW. IF YOU ARE MISSING ANY PARTS, PLEASE STOP AND CONTACT CUSTOMER CARE IMMEDIATELY AT 1-800- CABINET.
- Page 3 ►Instructions: Assemble the Top and Bottom Panels (C) onto Left Back Panel (D) by connecting the male and female cam locks and using a screwdriver to turn the lock clockwise. (Figure 1) { NOTE: It may be easier to lay Panel D on a flat smooth soft work surface to assemble.
- Page 4 Install the shelf clips (a) in the location of your choosing. (Figure 3) Figure 3 Install the Shelf (G) onto the shelf clips installed in the previous step. (Figure 4) Figure 4 Page 4...
- Page 5 Install the Left Face Frame Door (A) and the Right Face Frame Door (B) onto the assembled panels. (Figure 5) Figure 5 Assemble the Left Face Frame to the Right Face Frame using 135 degree brackets (b) and 1/2" screws (c) in the locations shown.
- Page 6 Assemble the Left Toe Kick to the Right Toe Kick using 135 degree brackets (b) and 1/2" screws (c). (Figure 7) Figure 7 Install the Toe Kicks to the other assembled panels. (Figure 8) Figure 8 Page 6...
-
Page 7: Maintenance
Install the bumpers (d) onto the corners of the doors opposite of the hinges. (Figure 9) Figure 9 ►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach. Also, do not use tools as scrapers, metallic brushes, and other products which can scratch or tarnish surfaces.
