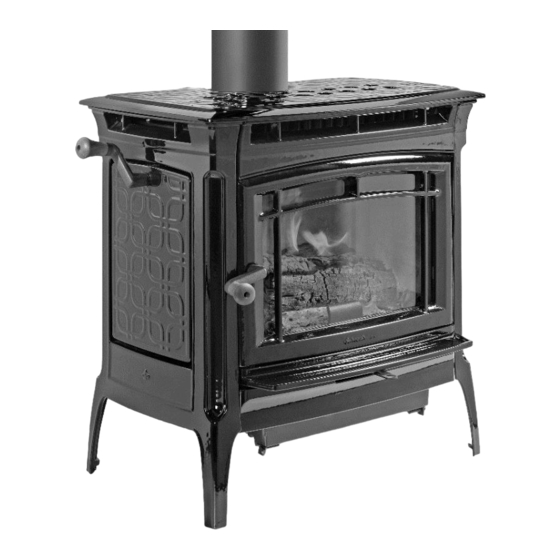

Manchester
(Model 8361)
Woodstove
OWNER'S MANUAL
Installation And
Operating Instructions
SAVE THIS OWNER'S MANUAL
FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU INSTALL AND USE YOUR
NEW MANCHESTER WOOD STOVE.
If this room heater is not properly installed, a house fire may result.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage, bodily injury, or even death.
Conforms to UL Std. 1482
Certified to ULC Std. S627
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Hearthstone Quality Home Heating Products, Inc ®
11
Manchester Model 8361

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Manchester and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HearthStone Manchester

Summary of Contents for HearthStone Manchester

  • Page 1 Conforms to UL Std. 1482 Certified to ULC Std. S627 CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 2 CO Emissions: The Manchester 8361 has the following CO emission rates by burn level: Category 1 - 1.26%, Category 2 - 1.27%, Category 3 - 0.89% and Category 4 - 0.66%. In general, the higher burn rate that can be safely maintained without over-firing the stove the cleaner the stove will operate.

  • Page 3: Table Of Contents

    EMOVAL ................................23 ASKETS ................................. 23 LASS TROUBLESHOOTING ......................23 ..........................245 ROUBLESHOOTING UIDE & O ....................26 EPLACEMENT ARTS PTIONAL CCESSORIES SAFETY LABEL ........................27 LIMITED WARRANTIES ....................... 28 Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 4: Introduction

    Install the stove in a safe, open area, away from traffic If you are installing your Manchester in a mobile or flow, doors, and hallways. If possible, try to install the manufactured home, follow the guidelines described...

  • Page 5: Periodic Checklist

    You must correct any damage before 6. A ventilation system is installed in the house. using your stove again. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 6: Specifications

    15 to 36 lbs. per cubic foot depending on type of wood, moisture content, packing density and other factors. Figure 1 – Manchester Dimensions (Shown with optional blower) Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 7: Installation

    When you receive the actually connecting your stove. Manchester, carefully unpack and inspect the stove and all accompanying parts. Ensure that all parts are If the floor is made of combustible material, then a included in the ash pan.

  • Page 8: Earth Equirements Loor Rotection

    EQUIREMENTS LOOR ROTECTION Ensure you protect combustible flooring with a covering of noncombustible material. The Manchester does not require an insulated hearth pad. The minimum floor protection must be met under the stove and extend beyond the stove as follows: The minimum floor protection for US installations is 48in x 36-3/4in.

  • Page 9: Combustible Surface Required Clearances

    *SIDE WITH DOOR MUST BE 18” FROM SIDE WALL UNLESS THE SIDE DOOR LOCKING KIT IS INSTALLED. CONSIDER SPACE FOR LOADING OF STOVE USING THE SIDE DOOR. FOR CLOSE CLEARANCE HEAT SHIELD, USE KIT #93-68600 Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 10: Chimney Connector Systems And Clearances

    *For double wall pipe clearance to ceiling refer to pipe manufacturer specifications. ** Close Clearance Heatshield, kit #93- 68600 See Parallel Clearance to Combustibles for clearances to the sides of the stove. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 11 Chimney Connector Systems and Clearances Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 12: Outside Air Supply

    Hearthstone recommends the termination be at the is taken from outside the residence rather than from same level, or lower than the air intake on the stove.
  • Page 13 It keeps the walls from rise away from the stove at a minimum of 1/4" per igniting. You must use a wall thimble when foot (21mm/m). Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 14 In such cases, a damper can help requires a 6" (152 mm) inside diameter flue for new regulate the draft. The Manchester requires a draft installations. A 6” diameter flue provides adequate between 0.06" and 0.1" WC. For drafts above 0.1"...
  • Page 15 (3 m) off the floor. The recommended maximum  Ensure any equivalent flue liner is a listed chimney height is 30 feet (9m).The Manchester chimney liner system meeting type HT requires a draft between 0.06” and 0.1” water requirements or other approved material.
  • Page 16 Figure 8 – Typical Chimney Configurations Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 17: Installing I N A Mobile Home

    * (any UL or ULC approved equipment is acceptable) Operation  WARNING: DO NOT INSTALL IN A SLEEPING ROOM IN A MOBILE HOME. Once your Manchester is installed, you are ready to light a fire.  CAUTION: MAINTAIN THE STRUCTURAL Every installation, season’s...

  • Page 18: Controls And Features

    Sift the ashes through the grate in the bottom of the firebox into the ash Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 19: Choosing Firewood

    HOOSING IREWOOD Burn only natural firewood (known as cordwood) in the Manchester 8361 Wood Heater. This stove is not designed to burn other fuels.  Medium CAUTION: CHEMICALS FLAMMABLE FLUIDS TO START THE FIRE. DO Juniper, Rocky Mtn 3,150 21.8...

  • Page 20: Buildinga Fire

    If you adhere to the operating procedures in this completely. manual, the steel, cast iron, and refractory components of your stove will give you many years of trouble-free use. With use, the color of the Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 21 Inspect the daily for 35 to 45 minutes to fully heat the stovepipe venting system frequently if using low burn rates and chimney. consistently. Figure 12 – AIR CONTROL POSITIONS Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 22: Maintenance

    5. Remove any remaining glass and old gasket material. 6. Clean the screw holes and place a small amount of anti-seize compound in each one. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 23: Creosote Formation & Removal

    We recommend you use a certified chimney destroy the house. When burning wood, inspect the sweep to perform this service. Contact your dealer chimney connector and chimney at least once every Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 24: Gaskets

    The glass kit includes instructions and inadequate if your home is super-insulated or everything needed for the repair. If you replace the especially well sealed. This phenomenon of air Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 25 Tend the fire frequently with small fuel until the chimney is hot and the draft is well established. Sometimes, partially opening a first floor window briefly will help quickly get draft established. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 26: Troubleshooting Guide

    Do not over-fire the stove. Monitor stove temperatures. Use FINISH seasoned wood only. Excessive Draft Check the DRAFT. A damper may be required. Operate the stove at a LOW BURN range. Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 27 5360-060 SIDE DOOR HINGE CLIP 5360-062 FRONT DOOR HINGE (NO PIN) 5360-071 SECONDARY AIR PIPE #1 5360-072 SECONDARY AIR PIPE #2 5360-073 SECONDARY AIR PIPE #3 5360-085 TOP HEAT SHIELD Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...

  • Page 28: Safety Label

    Safety Label Hearthstone Quality Home Heating Products, Inc ® Manchester Model 8361...
  • Page 29 ) year after the Purchase Date, Hearthstone will pay for warranty labor performed by an authorized Dealer at Hearthstone’s published labor rates in effect at the time the labor is performed only if the appliance is installed by an authorized dealer or their designated representative. Otherwise or thereafter, the Original Purchaser is responsible for the cost of labor.

  • Page 30: Limited Warranties

    Hearthstone or an authorized Dealer, as the case may be. Notwithstanding any other provision of this document, in no event will Hearthstone pay for any Dealer fees or other fees for pick up or delivery of the appliance returned for repair; the Original Purchaser shall be responsible for any such fees.
  • Page 31 Dealer on behalf of Hearthstone, as the case may be, will instruct the Original Purchaser to either return the defective part, or the entire appliance (if requested), to the Dealer or Hearthstone or allow a Dealer to make a service call at the place where the appliance is located. Hearthstone may require that a digital picture be provided to support the claim.
