Projection Dimensions - ViewSonic M1 Pro User Manual

Projection Dimensions

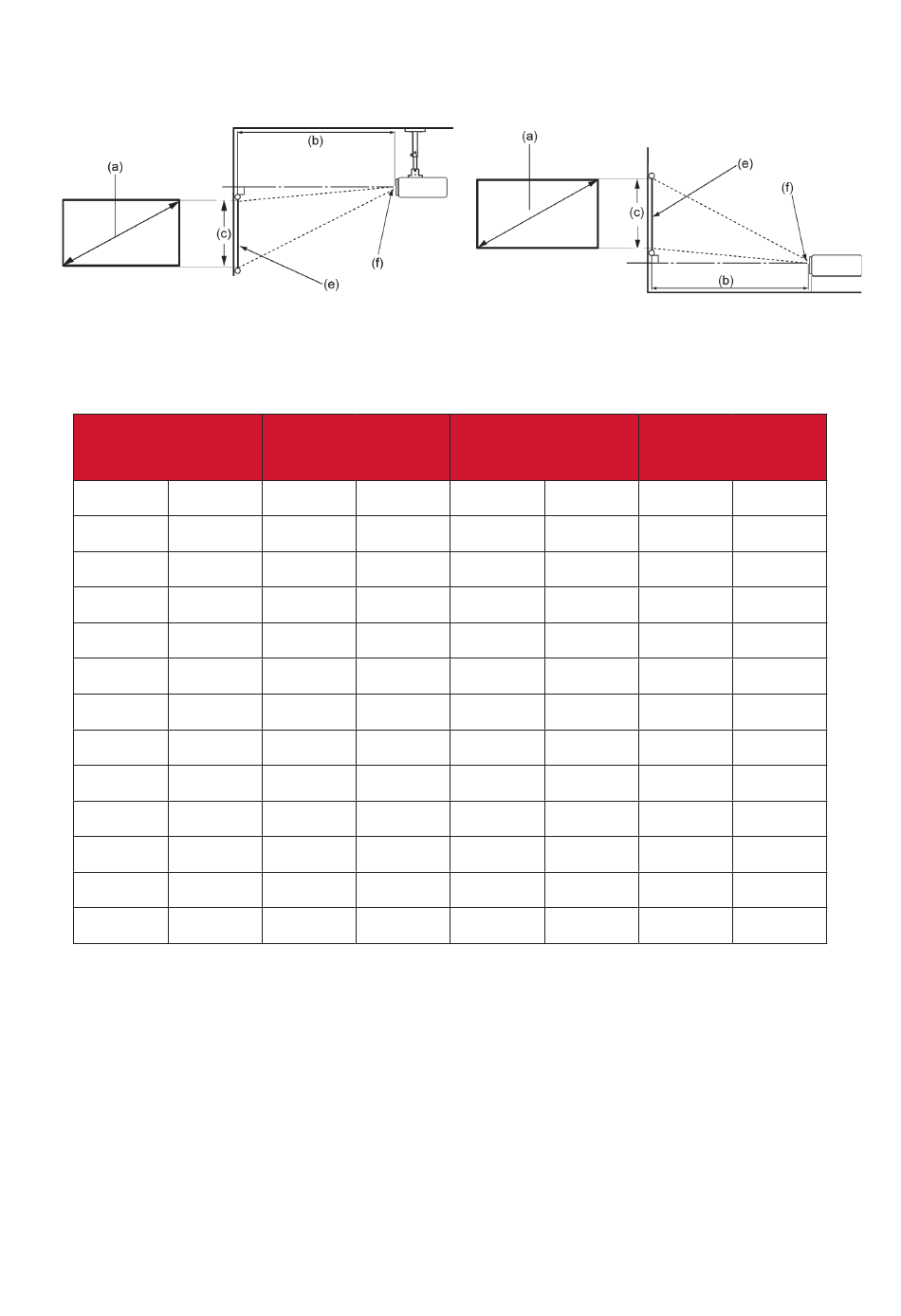

• 16:9 Image on a 16:9 Screen
NOTE: (e) = Screen / (f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size
in.
40
50
60
70
80
90
100
110
120
130
140
150
NOTE: It is recommended that if you intend to permanently install the projector,
please physically test the projection size and distance using the actual
projector before you permanently install it.
(b) Projection
Distance
mm
in.
1016 37.3
1270 46.6
1524 56
1778 65.3
2032 74.6
2286 83.9
2540 93.3
2794 102.6
3048 111.9
3302 121.2
3556 130.6
3810 139.9
(c) Image Height
mm
in.
948 19.6
1184 24.5
1421 29.4
1658 34.3
1895 39.2
2132 44.1
2369 49
2606 53.9
2843 58.8
3079 63.7
3316 68.6
3553 73.5
14
Image Width
mm
in.
498 34.86
623 43.58
747 52.29
872 61.01
996 69.73
1121 78.44
1245 87.16
1370 95.87
1494 104.59
1619 113.3
1743 122.02
1868 130.74
mm
886
1107
1328
1550
1771
1992
2214
2435
2657
2878
3099
3321
