Assembly (Option#2) (continued)
3

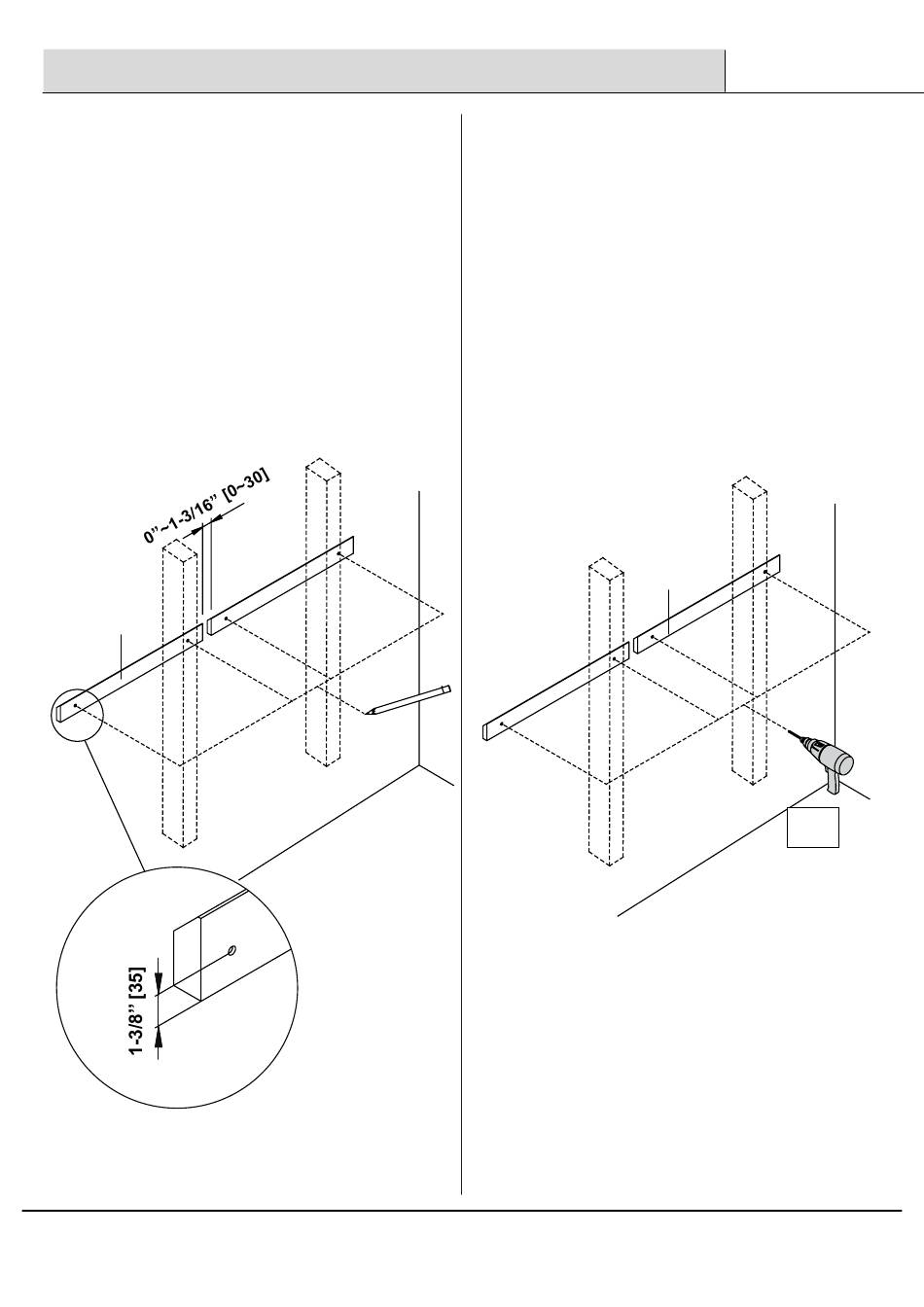

Installing support bars
□ Using a stud finder or equivalent tool, locate at
least 1 wall stud and mark its positions on the wall
for each support bar (E). While holding the support
bar (E) in its position against the wall, check that it
is level, then mark 2 positions for 2 holes for each
support bar (E) as indicated. One of the holes must
be right over the wall stud.
□ Note: make sure the distance between the 2 bar is
smaller than 1-3/16'' [30mm].
E
4
Proper height of the
holes to be drilled on
the Support Bar.
11
Installing support bars
□ Keep the support bars in the position, then drill pilot
holes on the wall through the support bar at the
marked positions using ø1/8" (2.5mm) drill bit.
E
