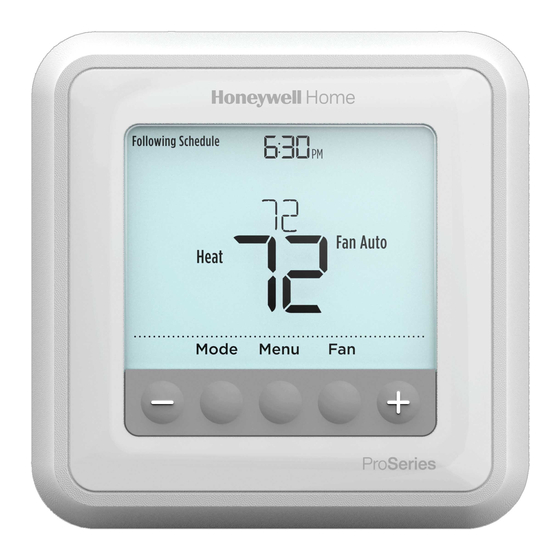

T6 Pro
Programmable Thermostat
Installation Instructions
Package Includes:
• T6 Pro Thermostat
• UWP™ Mounting System
• Honeywell Standard Installation
Adapter (J-box adapter)
• Honeywell Decorative Cover Plate –
Small; size 4-49/64 in x 4-49/64 in x
11/32 in (121 mm x 121 mm x 9 mm)
• Screws and anchors
• 2 AA Batteries
• Installation Instructions and User
Guide
Optional Cover Plate installation
NOTE: If Optional Cover Plate is not
required, see "UWP Mounting System
installation" on next page.
Use the Optional Cover Plate when:
• Mounting the thermostat to an
electrical junction box
• Or when you need to cover paint gap
from old thermostat.
1. Separate the Junction Box Adapter
from the Cover Plate. See Figure 1.
2. Mount the Junction Box Adapter to
the wall or an electrical box using any
of the eight screw holes. Insert and
tighten mounting screws supplied with
Cover Plate Kit. Do not overtighten. See
Figure 2. Make sure the Adapter Plate
is level.
3. Attach the UWP by hanging it on the
top hook of the Junction Box Adapter
and then snapping the bottom of the
UWP in place. See Figure 3.
4. Snap the Cover Plate onto the Junction
Box Adapter. See Figure 4.
Home
1
2
Use 2x
supplied
screws #6
5/8"
4
3

Advertisement

Table of Contents
loading

Summary of Contents for Honeywell Home T6 Pro

  • Page 1 Home T6 Pro Programmable Thermostat Installation Instructions Package Includes: • T6 Pro Thermostat • UWP™ Mounting System • Honeywell Standard Installation Adapter (J-box adapter) • Honeywell Decorative Cover Plate – Small; size 4-49/64 in x 4-49/64 in x 11/32 in (121 mm x 121 mm x 9 mm) •...
  • Page 2: Power Options

    UWP Mounting System installation 5. Before starting, turn the power off at the breaker box or switch. Open package to find the UWP. See Figure 5. 6. Position the UWP on wall. Level and mark hole positions. See Figure 6. Drill holes at marked positions, and then lightly tap supplied wall anchors into the wall using a hammer.
  • Page 3 Rc terminal, set the slider to the down position (2 wires). NOTE: Slider Tabs for U terminals should be left in place for T6 Pro models. R/Rc slider tab Wiring terminal designations Heat Pump fault input (most...
  • Page 4 Wiring conventional systems: forced air and hydronics Shaded areas below apply only to TH6320U/TH6220U or as otherwise noted. 1H/1C System (1 transformer) 1H/1C System (2 transformers) Power [1] Power (heating transformer) [1] [R+Rc joined by Slider Tab] [2] Power (cooling transformer) [1] Compressor contactor Compressor contactor 24VAC common [3]...
  • Page 5 Wiring heat pump systems Shaded areas below apply only to TH6320U/TH6220U or as otherwise noted. 1H/1C Heat Pump System 3H/2C Heat Pump System (TH6320U only) [10] Power [1] Power [1] [R+Rc joined by Slider Tab] [2] [R+Rc joined by Slider Tab] [2] Compressor contactor Compressor contactor (stage 1) 24VAC common [3]...
  • Page 6: Thermostat Mounting

    Thermostat mounting 1. Push excess wire back into the wall opening. 2. Close the UWP door. It should remain closed without bulging. 3. Align the UWP with the thermostat, and push gently until the thermostat snaps in place. 4. Turn the power on at the breaker box or switch.
  • Page 7: Fan Operation Settings

    System operation settings 1 Press the Mode button to cycle to the next available System mode. 2 Cycle through the modes until the required System mode is displayed and leave it to activate. NOTE: Available System modes vary by model and system settings.
  • Page 8 Installer setup (ISU) 1 Press and hold CENTER and buttons for approximately 3 seconds to enter advanced menu. 2 Press Select to enter ISU. 3 Press Select to cycle through menu setup options. 4 Press to change values or select from available options.
  • Page 9 Advanced setup options (ISU) # ISU ISU Name ISU Options (factory default in bold) Heat Stages / Backup Heat Stages Heat Stages: 1, 2 Backup Heat Stages: 0, 1 Fan Control in Heat 1 = Equipment Controls Fan 2 = Thermostat Controls Fan 0 = Drive both Aux &...
  • Page 10 Advanced setup options (ISU) # ISU ISU Name ISU Options (factory default in bold) Heating Cycle Rate Emergency Heat 1 - 12 (TH6320 only) Compressor Protection 0 = Off 1 - 5 minutes Adaptive Intelligent Recovery 0 = No 1 = Yes Note: Adaptive Intelligent Recovery (AIR) is a comfort setting.
  • Page 11: Installer System Test

    Installer system test To perform a System Test: 1 Press and hold CENTER and buttons for approximately 3 seconds to enter advanced menu. 2 Use to go to TEST. Press Select to enter System Test. 3 Use to change between Heat, Cool, Fan, Em Heat, or Ver (thermostat version information).
  • Page 12: Specifications

    Specifications Temperature Ranges Heat: 40 °F to 90 °F (4.5 °C to 32.0 °C) Cool: 50 °F to 99 °F (10.0 °C to 37.0 °C) Working Ambient Temperature 32 °F to 120 °F (0 C° to 48.9 °C) Operating Ambient Temperature 37 °F to 102 °F (2.8 °C to 38.9 °C) Shipping Temperature -20 °F to 120 °F (-28.9 °C to 48.9 °C)
  • Page 13: Customer Assistance

    CAUTION: ELECTRICAL HAZARD Can cause electrical shock or equipment damage. Disconnect power before beginning installation. CAUTION: EQUIPMENT DAMAGE HAZARD Compressor protection is bypassed during testing. To prevent equipment damage, avoid cycling the compressor quickly. CAUTION: MERCURY NOTICE If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash.
  • Page 14: Notice D'installation

    Home T6 Pro Thermostat programmable Notice d’installation La boîte comprend : • Thermostat T6 Pro ™ • Système de montage UWP • Adaptateur d’installation standard Honeywell (adaptateur boîtier de raccordement) • Plaque de couvercle décorative Honeywell – Petite; dimension 4-49/64 in x 4-49/64 in x 11/32 in (121 mm x 121 mm x 9 mm).
  • Page 15: Options D'alimentation

    Installation du système de montage UWP 5. Avant le démarrage, éteindre l’alimentation au niveau du disjoncteur du circuit ou de l’interrupteur. Ouvrir l’emballage du UWP. Voir la Figure 5. 6. Placer le UWP sur le mur. Le mettre à niveau et marquer les positions des trous.
  • Page 16 à la borne Rc, régler le curseur sur la position basse (2 fils). REMARQUE : Les curseurs des bornes U doivent être laissés en position pour les modèles T6 Pro. Curseur R/Rc Désignations des bornes de câblage Entrée de faute de thermopompe (dans la Entrées pour capteurs...
  • Page 17 Câblage des systèmes conventionnels : air forcé et hydronique Les zones ombrées ci-dessous s’appliquent uniquement aux modèles TH6320U/ TH6220U ou en cas d’indication contraire. Système à 1 étage de chauffage/1 étage de Système à 1 étage de chauffage/1 étage de refroidissement (1 transformateur) refroidissement (2 transformateurs) Alimentation [1]...
  • Page 18 Câblage des systèmes à thermopompe Les zones ombrées ci-dessous s’appliquent uniquement aux modèles TH6320U/ TH6220U ou en cas d’indication contraire. Système de thermopompe à 1 étage de Système de thermopompe à 3 étages de chauffage/1 étage de refroidissement chauffage/2 étages de refroidissement (TH6320U uniquement) [10] Alimentation [1] Alimentation [1]...
  • Page 19 Montage du thermostat 1. Repousser le fil en excès dans l’ouverture du mur. 2. Fermer le couvercle du UWP. Elle doit rester fermée sans renflement. 3. Aligner l’UWP sur le thermostat, et appuyer doucement jusqu’à ce que le thermostat s’enclenche en place. 4.
  • Page 20 Réglages pour le fonctionnement du système 1 Appuyer sur le bouton Mode pour passer au prochain mode de système disponible. 2 Faire défiler les modes jusqu’à ce que le mode de système requis soit affiché, et le laisser s’activer. REMARQUE : Les modes de système disponibles varient en fonction du modèle et des paramètres du système.
  • Page 21 Configuration de l’installateur (ISU) 1 Appuyer sur CENTER (Centre) et sur les boutons pendant 3 secondes environ pour accéder au menu des réglages avancés. 2 Appuyer sur Select (Sélectionner) pour accéder à ISU (Configuration de l’installateur). 3 Appuyer sur Select (Sélectionner) pour faire défiler les options de configuration du menu.
  • Page 22 Options de configuration avancées (ISU) (a continué) N° ISU Nom ISU Options ISU (réglage d’usine en gras) Réglage du ventilateur pour le 1 = L’équipement contrôle le ventilateur chauffage 2 = Le thermostat contrôle le ventilateur Réglage de borne Aux/E (TH6320 0 = Commande Aux et E ensemble uniquement) 1 = Aux et E indépendants...
  • Page 23 Options de configuration avancées (ISU) (a continué) N° ISU Nom ISU Options ISU (réglage d’usine en gras) 0 = Non 1 = Oui Système de récupération intelligent Remarque : Le système de récupération intelligent adaptatif (AIR) est un adaptatif paramètre de confort. L’équipement de chauffage ou de refroidissement s’activera plus tôt, garantissant que la température intérieure correspond à...
  • Page 24 Test du système de l’installateur Pour réaliser un test du système : 1 Appuyer sur CENTER (Centre) et sur les boutons pendant 3 secondes environ pour accéder au menu des réglages avancés. 2 Utiliser pour passer à TEST. Appuyer sur Select (Sélectionner) pour accéder au test du système.
  • Page 25: Caractéristiques Techniques

    Caractéristiques techniques Plages de température Chauffage : 40 °F à 90 °F (4,5 °C à 32,0 °C) Refroidissement : 50 °F à 99 °F (10,0 °C à 37,0 °C) Température de contrôle 32 °F à 120 °F (0 C° à 48,9 °C) Température de service 37 °F à...
  • Page 26: Service À La Clientèle

    MISE EN GARDE: RISQUE DE CHOC ÉLECTRIQUE Peut provoquer des chocs électriques ou endommager le matériel. Couper l’alimentation électrique avant d’effectuer le raccordement. MISE EN GARDE: RISQUE DE DOMMAGES DE L’ÉQUIPEMENT La protection du compresseur est annulée durant le test. Pour éviter d’endommager l’équipement, éviter d’actionner le compresseur trop rapidement.
  • Page 27: Instrucciones Para La Instalación

    Home T6 Pro Termostato programable Instrucciones para la instalación El paquete incluye: • Termostato T6 Pro ™ • Sistema de montaje UWP • Adaptador de instalación estándar de Honeywell (adaptador para cajetín de empalmes) • Placa de cubierta decorativa Honeywell –...
  • Page 28 Instalación del sistema de montaje con UWP 5. Antes de comenzar, desconecte el suministro de electricidad en la caja de interruptores de circuito o el interruptor. Abra el paquete para encontrar la UWP. Consulte la Figura 1. 6. Coloque la UWP en la pared. Nivele y marque la posición de los tornillos.
  • Page 29 (2 cables). NOTA: Las lengüetas de los controles deslizantes para terminales U deben dejarse en su lugar en los modelos T6 Pro. Lengüeta del control deslizante R/Rc Designaciones del terminal de cableado Entrada de detección de...
  • Page 30 Cableado de sistemas convencionales: aire forzado e hidrónico Las áreas sombreadas siguientes se aplican únicamente a TH6320U/TH6220U o según se indique. Sistema de 1 etapa de calefacción/1 etapa de Sistema de 1 etapa de calefacción/1 etapa de refrigeración (1 transformador) refrigeración (2 transformadores) Alimentación [1] Alimentación (transformador de...
  • Page 31 Cableado de sistemas de bomba de calor Las áreas sombreadas siguientes se aplican únicamente a TH6320U/TH6220U o según se indique. Sistema de bomba de calor de 1 etapa de calefacción/1 Sistema de bomba de calor de 3 etapas de etapa de refrigeración calefacción/2 etapas de refrigeración (TH6320U únicamente) [10] Alimentación [1]...
  • Page 32: Montaje Del Termostato

    Montaje del termostato 1. Introduzca el excedente de cable en la abertura de la pared. 2. Cierre la tapa de la placa de la UWP. Debe permanecer cerrada sin quedar protuberante. 3. Alinee la UWP con el termostato y presione suavemente hasta que el termostato calce en su lugar.
  • Page 33 Configuraciones del sistema operativo 1 Presione el botón Mode (modo) para pasar al siguiente modo disponible en el sistema. 2 Alterne a través de los modos hasta que se muestre el modo de sistema requerido y deje que se active. NOTA: Los modos disponibles del sistema varían según el modelo y las configuraciones del sistema.
  • Page 34 Configuración por el instalador (ISU) 1 Presione y sostenga CENTER (centro) y los botones durante aproximadamente 3 segundos para ingresar al menú avanzado. 2 Presione Select (seleccionar) para ingresar al ISU. 3 Presione Select (seleccionar) para avanzar a través de las opciones del menú de configuración. 4 Presione para cambiar los valores o seleccionar las opciones disponibles.
  • Page 35 Opciones avanzadas de configuración (ISU) (continuado) N.º del ISU Nombre del ISU Opciones del ISU (las configuraciones predeterminadas de fábrica están en negrita) 1 = El equipo controla el ventilador Control del ventilador en calefacción 2 = El termostato controla el ventilador Control aux/terminal E (TH6320 0 = Activa juntos tanto el Aux como el E únicamente)
  • Page 36 Opciones avanzadas de configuración (ISU) (continuado) N.º del ISU Nombre del ISU Opciones del ISU (las configuraciones predeterminadas de fábrica están en negrita) 0 = No 1 = Sí Recuperación inteligente adaptable Nota: Recuperación inteligente adaptable (Adaptive Intelligent Recovery, AIR) es (Adaptive Intelligent Recovery, AIR) una configuración de confort.
  • Page 37 Prueba del sistema por parte del instalador Para realizar una prueba del sistema: 1 Presione y sostenga CENTER (centro) y los botones durante aproximadamente 3 segundos para ingresar al menú avanzado. 2 Use para ir a TEST (prueba). Presione Select (seleccionar) para iniciar la prueba del sistema.
  • Page 38: Especificaciones

    Especificaciones Rangos de temperatura Calefacción: de 40 °F a 90 °F (4.5 °C a 32.0 °C) refrigeración : de 50 °F a 99 °F (10.0 °C a 37.0 °C) Temperatura ambiente al inicio de 32 °F a 120 °F (de 0 °C a 48.9 °C) Temperatura ambiente de funcionamiento de 37 °F a 102 °F (de 2.8 °C a 38.9 °C) Temperatura de envío...
  • Page 40: Asistencia Al Cliente

    PRECAUCIÓN: PELIGRO DE ELECTROCUCIÓN Puede causar descargas eléctricas o daños al equipo. Desconecte el suministro eléctrico antes de comenzar la instalación. PRECAUCIÓN: RIESGOS DE DAÑOS AL EQUIPO Se evita la protección del compresor durante la prueba. Para prevenir daños al equipo, evite encender y apagar rápidamente el compresor. PRECAUCIÓN: AVISO SOBRE EL MERCURIO Si este producto está...
