Thanks for buying a TEAC. Read this manual carefully to get the best performance from this unit.
Ü
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
ÿ
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
Ÿ
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This appliance has a serial number located
on the rear panel. Please record the model
number and serial number and retain them
for your records.
Model number
Serial number

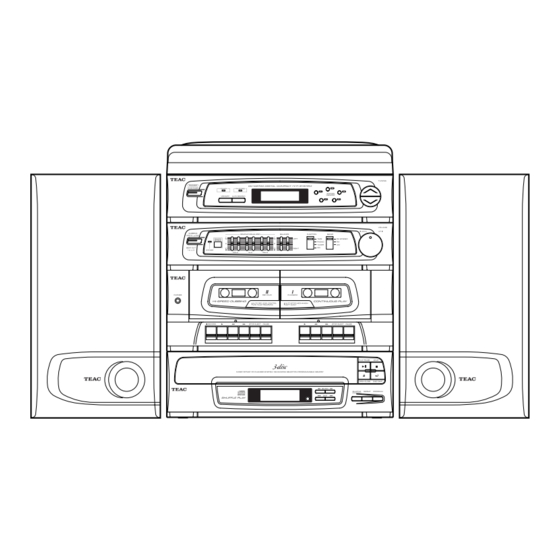

dc-d2700
Digital Compact Hi-Fi System
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
9A06831900
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Teac DC-D2700
Summary of Contents for Teac DC-D2700

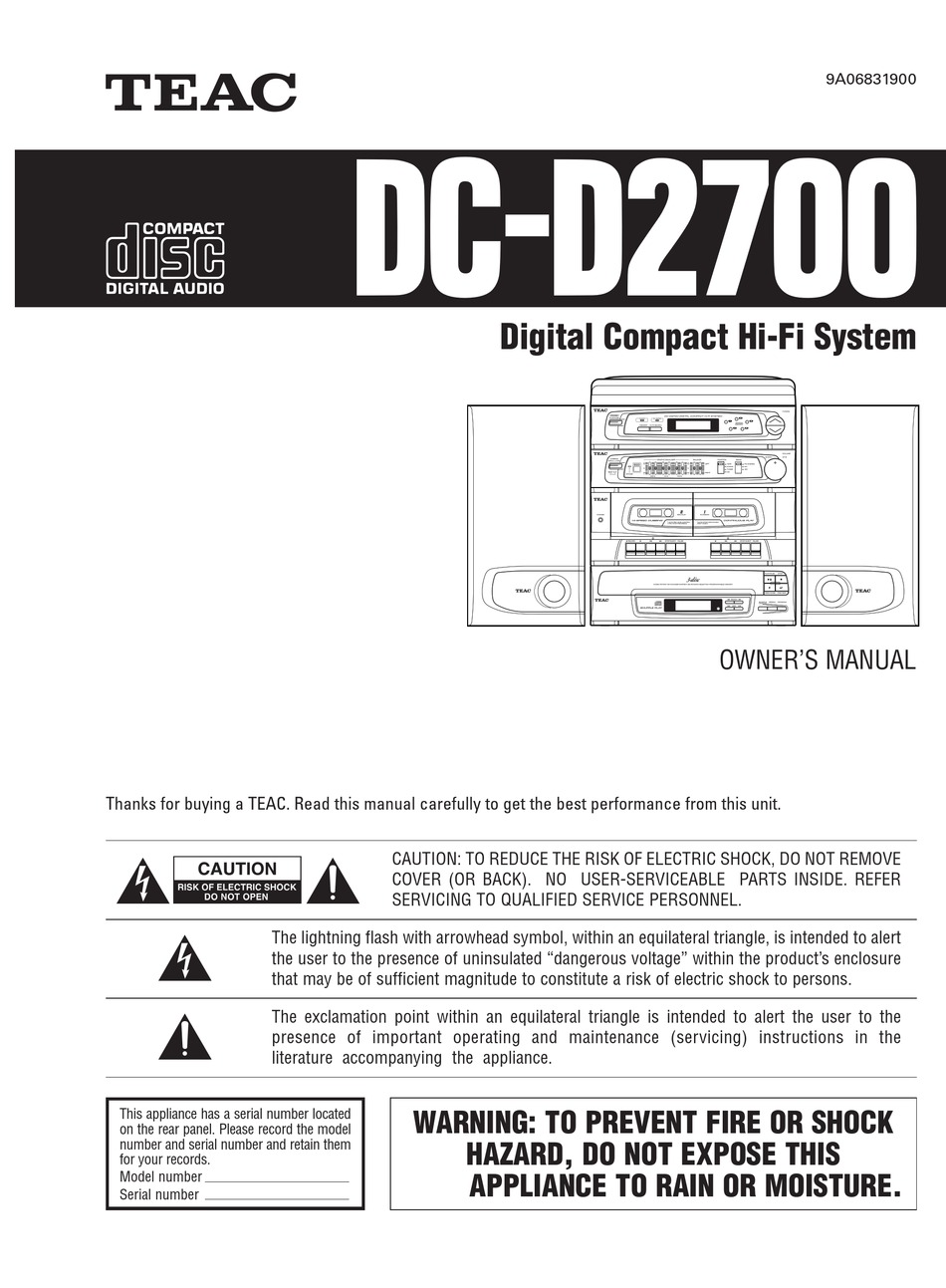

- Page 1 ˛ Digital Compact Hi-Fi System OWNER’S MANUAL Thanks for buying a TEAC. Read this manual carefully to get the best performance from this unit. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE Ü COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: "Note to CATV system installer: • Read all of these Instructions. This reminder is provided to call the CATV system installer’s atten- • Save these Instructions for later use. tion to Section 820-40 of the NEC which provides guidelines for •... - Page 3 - IF THIS PRODUCT DEVELOPS TROUBLE, MAKE A CONTACT WITH OUR SERVICEMAN, AND DO NOT USE THE PRODUCT IN A TROUBLED STATE. CERTIFICATION THIS PRODUCT COMPLES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLI- CABLE AT DATE OF MANUFACTURE TEAC CORPORATION 3-7-3 NAKA-CHO, MUSASHINO-SHI, TOKYO, JAPAN MANUFACTURED For U.S.A. Optical pickup: Type : SF-91P Manufacturer : SANYO Electric CO., Ltd...
-
Page 4: Before Use
Erase Head Record/Playback Head Pinch Roller How to hold the disc Demagnetizing Heads Be sure that the power is off, then demagnetize the heads using a TEAC E-3 demagnetizer. For details of its use, read its instructions. - 4 -... -
Page 5: Preparation Of Use
Preparation of Use ª Removing the transit screw ª Battery installation for Remote Control Unit Unscrew the transit screw with a Phillips head screw- driver by rotating counterclockwise until the screw is completely removed. ª Connecting speakers Connect each speaker plug to the speaker terminal. Use speakers with impedance of 4 ohms or more, since low impedance speakers may damage the unit. - Page 6 Locations of Buttons and Controls Front Panel Rear Panel Turntable - 6 -...
-
Page 7: Remote Sensor
OPEN/CLOSE (ø) button (CD) Center Spindle Turntable Platter Certain buttons on the remote control unit and on the front panel of the DC-D2700 have the same or similar 7" (17 cm) EP Record Adaptor functions and have the same reference numbers. Tonearm... -
Page 8: Basic Operation
Basic Operation POWER POWER indicator FUNCTION STANDBY indicator VOLUME BALANCE GRAPHIC EQUALIZER PHONES ª Power On and Off ª Other functions ª Graphic equalizer To turn the power on, press the POWER (ON/STANDBY) button. You can alter the sound character using the 3-band The STANDBY indicator will turn off and the POWER GRAPHIC EQUALIZER if you want. -
Page 9: Listen To Radio
MEMORY AUTO SEARCH FUNCTION BAND You can enjoy FM and AM radio with the DC-D2700. The ª Auto Search Station Memory function allows the instant recall of up 1. Follow steps 1 and 2 above (of "Manual Tuning"). to 10 stations; 5 for FM and 5 for AM. - Page 10 SKIP SHUFFLE (RANDOM) Disc tray Display INTRO SEARCH The DC-D2700 offers the carrousel type CD changer To stop playback: which can be loaded up to 3 discs in the independent Press STOP (ª). disc trays. To pause playback: OPEN/CLOSE (ø) : Press PLAY/PAUSE (Áπ) .
- Page 11 4. Press PROGRAM to enter the selection into memory. ª Intro Check You can check the first 10 seconds of each track on 5. Repeat steps 2-4 to program. discs. Up to 32 selections can be programmed. 1. Press INTRO. 6.
-
Page 12: Listening To Tape
Deck % Transport Control Buttons Control Buttons The DC-D2700 has 2 cassette decks; Deck I and Deck II. ª Basic Playback Deck I can be used for playback, while Deck II can be You can choose either Deck I or Deck II for playback as used for recording and playback. - Page 13 ª Recording (Deck II only) ª Dubbing (Tape copy from Deck I to Deck II) ª Recording from Radio The DC-D2700 can duplicate a cassette tape at normal 1. Set FUNCTION to RADIO position. or high speed. 2. Select the desired radio station.
-
Page 14: Specifications
[CASSETTE DECK Section] Track System: 4 tracks, 2 channel stereo Tape Speed: 4.8 cm/sec. You can enjoy records (analog discs) by the DC-D2700. Wow and Flutter: 0.4 % (WRMS) Frequency Response: 125 to 6,300 Hz - 6 dB 1. Set FUNCTION to PHONO position. -
Page 15: Troubleshooting Guide
Troubleshooting Guide Before calling for service, check through the chart below for probable causes of the problems you experience while using this unit. Symptom Probable cause(s) Suggested remedy Low hum or buzz sound. Power line of fluorescent lamps Place this unit as far away from other is run from the same power electric or electronic devices as possible. -
Page 16: Ac Power Cord Connection
Plug the equipment into a different outlet so that it is not on the same circuit as the receiver. If necessary, consult the dealer or an experienced radio/TV technician for additional suggestions. CAUTION: Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment. For CANADA...
