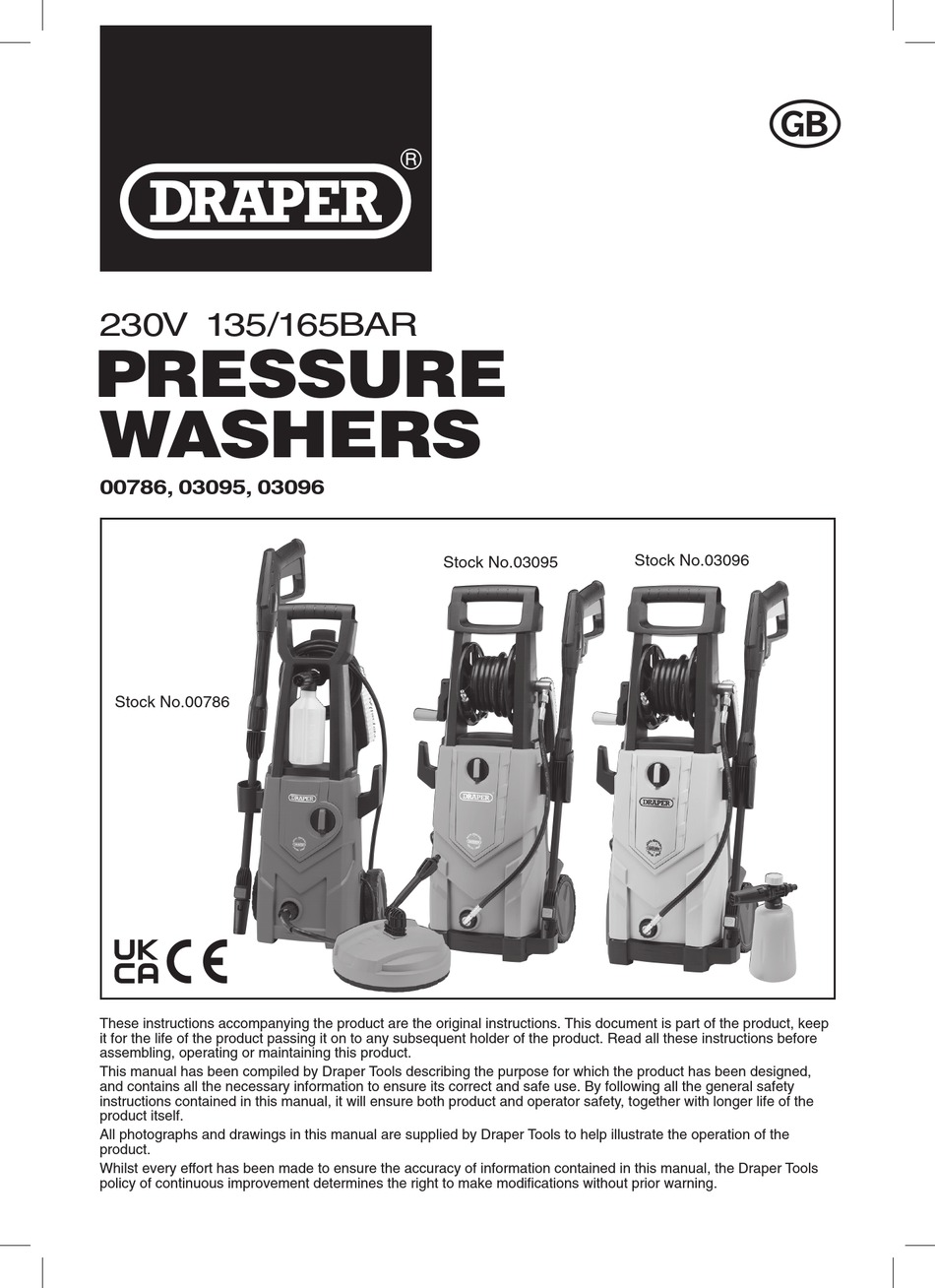

230V 135/165BAR
PRESSURE
WASHERS
00786, 03095, 03096

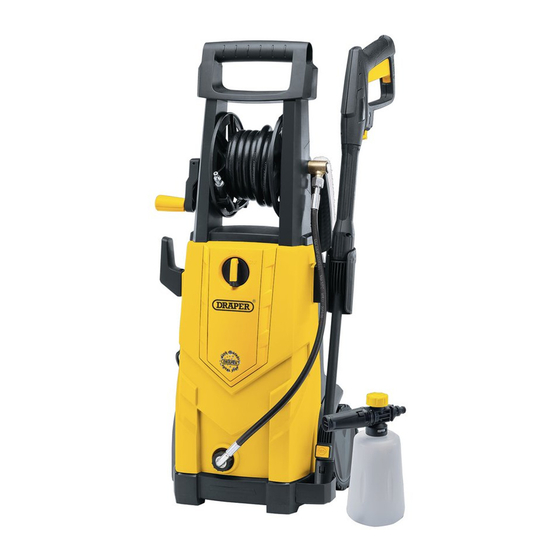

Stock No.03096
Stock No.03095
Stock No.00786
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper 03096
Summary of Contents for Draper 03096
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
FITTING THE LANCE HOLDER AND CABLE HOOK ..........12 ATTACHING THE LANCE ..................13 ATTACHING THE NOZZLES TO THE LANCE ............13 ATTACHING THE INTEGRATED HOSE REEL (03095 AND 03096) ......14 ATTACHING THE HIGH PRESSURE HOSE ............. 14 CONNECTING THE WATER SUPPLY ..............15 ACCESSORIES DETERGENT BOTTLE (07786) ................. -
Page 4: Warranty 3.1 Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
Compact, lightweight and mobile pressure washer for cleaning vehicles, caravans, motor vans, driveways, boats and other domestic duties. Any other application is considered misuse. SPECIFICATION Stock No ..........00786 ........03095 ..........03096 Part No ..........PW1600/90D/RED ....PW2200/110D/GRN ....PW2200/110D/YEL Rated voltage ......... 230-240V~50Hz ....230-240V~50Hz ....230-240V~50Hz Rated input .......... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Pressure Washer Use
HEALTH AND SAFETY INFORMATION Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool. -
Page 8: Residual Risk
HEALTH AND SAFETY INFORMATION − The safety button on the gun is not there to lock the lever during operation, but to prevent its accidental operation. − Appliances equipped with Total Stop System: these appliances should not be left in standby for more than 5 minutes. -
Page 9: Technical Description
Power supply ON/OFF switch. (13) High pressure hose outlet connection. Water inlet connection adaptor. (14) Transport wheels. (15) Integral hose reel ( Spray nozzle. 03095 and 03096 only (16) Nozzle release button. Integral detergent bottle (03095 and 03096 only). – 9 –... -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. - Page 11 Spray nozzle. (17) Lance. (10) High pressure hose. (10) (19) (12) Trigger assembly section. (15) Hose reel (03095 and 03096). (17) Detergent bottle Stock No.03095 (11) (20) (03095 and 03096). (18) Fixed brush. (19) Turbo nozzle. (12) (18) (15) (22) (20) Nozzle cleaning pin.
-
Page 12: Assembly
ASSEMBLY FITTING THE TRANSPORT Stock No.00786 shown HANDLE SECTION – FIGS.1 – 2 − − Slide the transport handle section (3) over the mounting points (A) at the top of the main body of the pressure washer. − From the back of the pressure washer, locate the 2 supplied screws (21) with the holes in the mounting points and screw in to secure the −... -
Page 13: Attaching The Lance
ASSEMBLY ATTACHING THE LANCE – FIGS.5 – 6 − Connect the lance (9) to the trigger assembly section (12) by pushing in the bayonet fitting and turning anti-clockwise 45° to lock in place. ATTACHING THE NOZZLES TO (12) THE LANCE – FIGS.7 – 8 −... -
Page 14: Attaching The Integrated Hose Reel (03095 And 03096)
ASSEMBLY ATTACHING THE INTEGRATED HOSE REEL (03095 and 03096 only) – FIGS.9 – 10 − − Position the hose reel section (15) within the cut out recessed area of the handle section − (3). − Locate the 4 supplied screws (22) with the mounting point holes (B) and screw in to secure the hose reel to the handle. -
Page 15: Connecting The Water Supply
ASSEMBLY CONNECTING THE WATER SUPPLY – FIGS.13 – 14 − Screw the supplied water inlet adaptor (6) to the water inlet connection (6.1) taking care not to cross the threads. − To connect the pressure washer to the water supply, a push fit hose connector will be required (FIG.14). -
Page 16: Accessories
(16.2) located on the end of the nozzle. (17.1) INTEGRATED DETERGENT BOTTLE (03095 & 03096) – FIGS.16 – 17 − Remove the cap (17.1) from the detergent bottle (17) and fill the bottle with a suitable detergent, (17) according to the manufacturer’s recommended... -
Page 17: Fixed Brush
FIG.20 push in then twist to lock. SNOW FOAM PRODUCER ACCESSORY (STOCK NO.03096 only) - FIG.21 The pressure washer (Stock No.03096 only) is supplied with a snow foam producer attachment (24) (24). As with the patio cleaner attachment, the snow... -
Page 18: Operation
10. OPERATION 10.1 TOTAL STOP DEVICE This pressure washer is fitted with the Auto Control Total Stop Device. This will cause the motor to start and stop when the trigger is activated, unlike standard washers where the motor would run continuously. This device reduces the amount of water and electricity used and the amount of wear and tear on the machines components. -
Page 19: Maintenance And Troubleshooting
11. MAINTENANCE AND TROUBLESHOOTING 11.1 TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Motor pulsing. Air in the system. See the below section regarding bleeding. procedure (section 11.3). Pump fails to start. Plug fuse blown/power supply Replace fuse/have the cable cable damaged. repaired by an authorised repair agent. -
Page 20: Explanation Of Symbols
